CINCINNATI

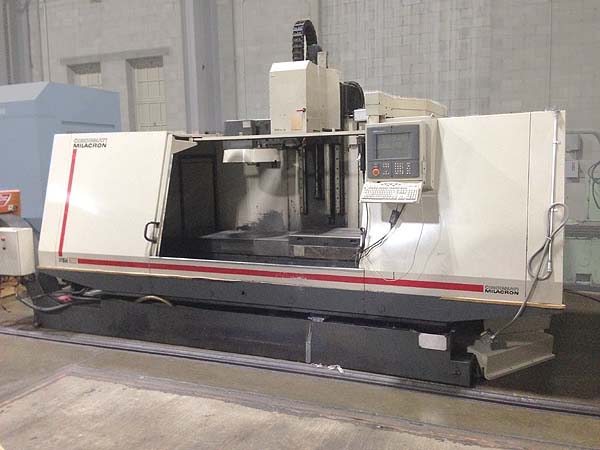

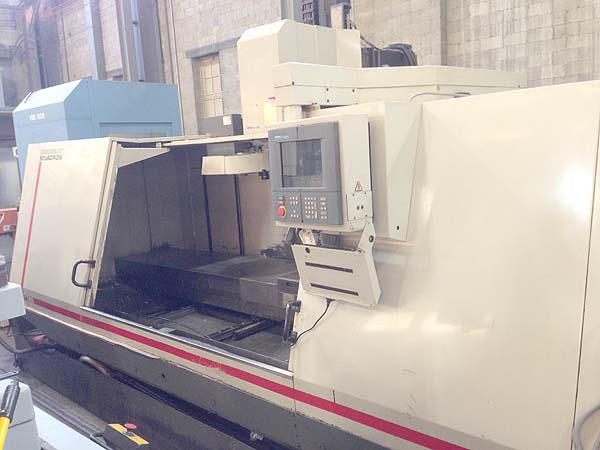

SABRE-2000 CNC VERTICAL MACHINING CENTER
Model Sabre 2000, New 1997, S/N
7044A00-96-0038, New 1997
Stock# K14469
EQUIPPED
WITH:
Cincinnati Acramatic 2100

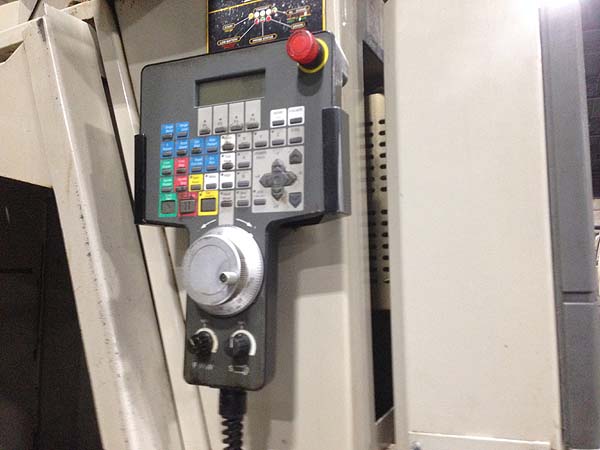

PC-Based CNC Control w/Color CRT, Hand-Held
Pendent Control, Rigid/Solid Tapping,
Background Edit, Multi Part
Program Storage, Tool Setting Probe,
Renishaw Part Probe, Thru the
Spindle Coolant, RS-232 Data Line, Full
Coolant Enclosure, Chip
Conveyor, and Coolant System.
CATALOGUE SPECIFICATIONS:
Table Working
Surface................................. 84"
x 30"
Table Load
Capacity...................................
3700 LBS
Longitudinal Travel
(X-Axis).......................... 80"
Cross Travel
(Y-Axis).................................
30"
Vertical Travel
(Z-Axis).............................. 32"
Feed Rates (X,Y,Z
Axis)............................... .1 -
590 IPM
Rapid Traverse Rate (X &
Y-Axis)...................... 944 IPM
Rapid Traverse Rate
(Z-Axis).......................... 745 IPM
Tool Storage
Capacity................................. 21
Spindle
Horsepower....................................
15 HP
Spindle Speed
Range...................................
30-8000 RPM
Spindle
Taper.........................................
#40
Electrics.............................................
460/3/60
Approximate Machine
Dimensions........................ 213" x
116"
Approximate Machine
Height............................ 129"
Approximate Machine
Weight............................ 20,700
LBS
CONDITION: Machine appears
to be in Excellent Condition !
