Fuji ANS-31P CNC Turning Center

Stock Number K15329

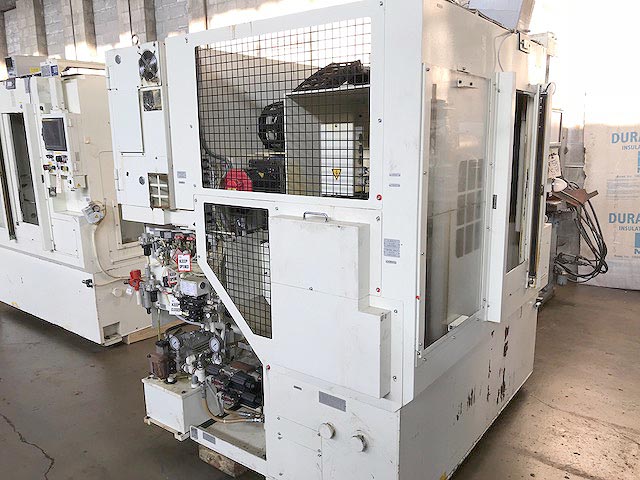

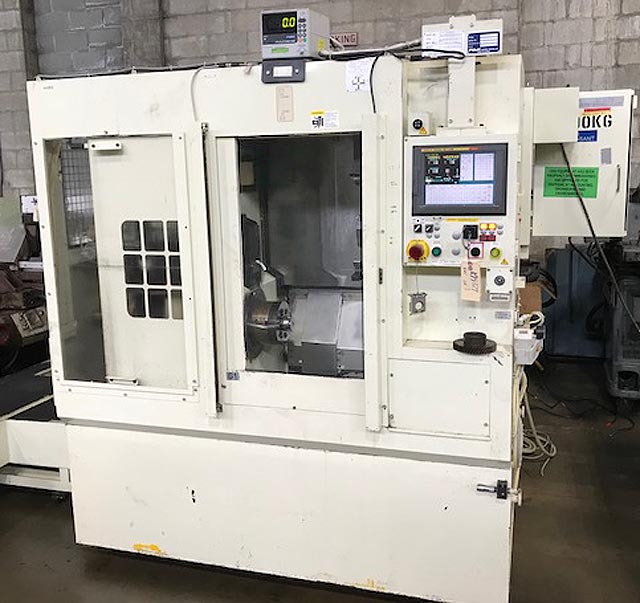

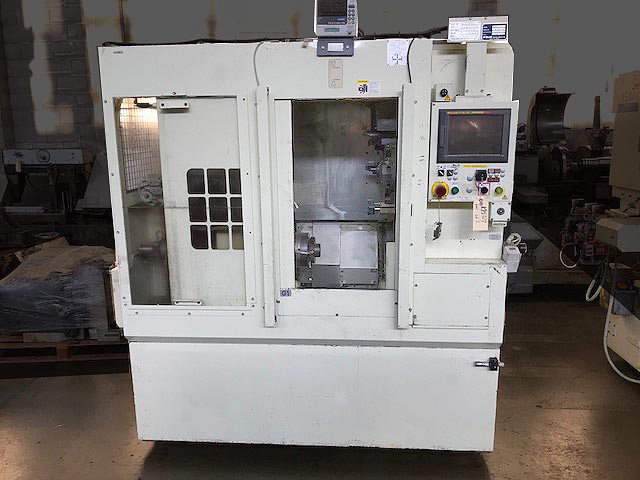

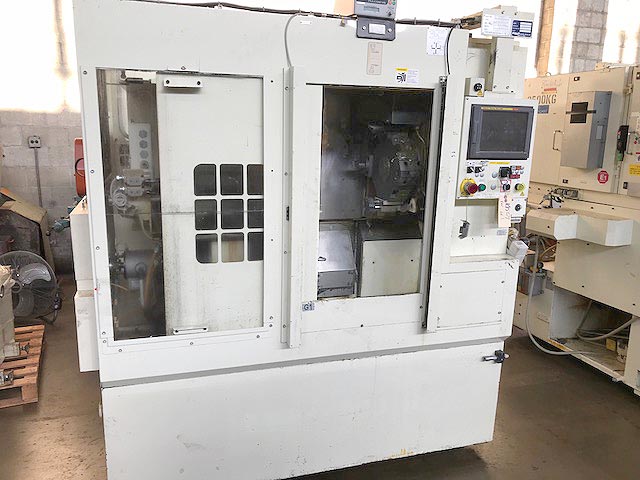

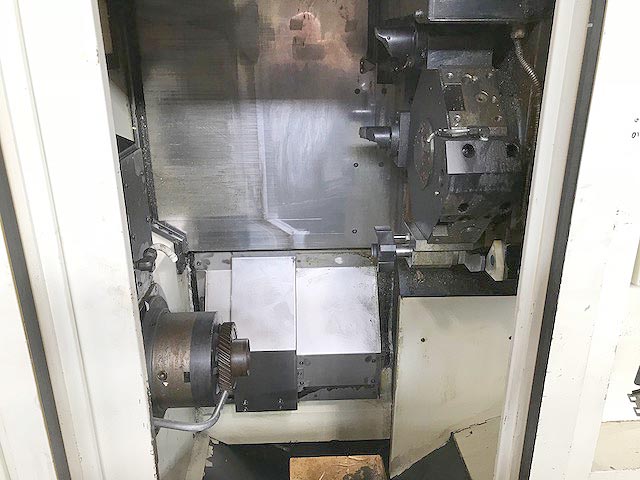

ACTUAL PHOTOS

Video Link

                                       FUJI ANS-31P CNC TURNING CENTER

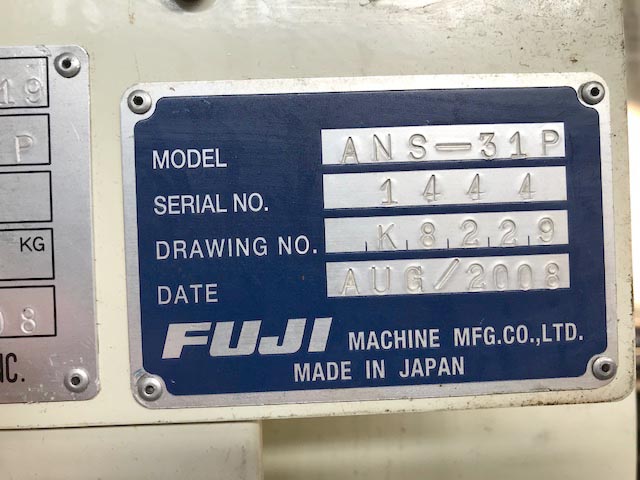

                                    Model ANS-31P, New 2008, S/N 1444 | 1445
                                                         Stock # K15329


EQUIPPED WITH:

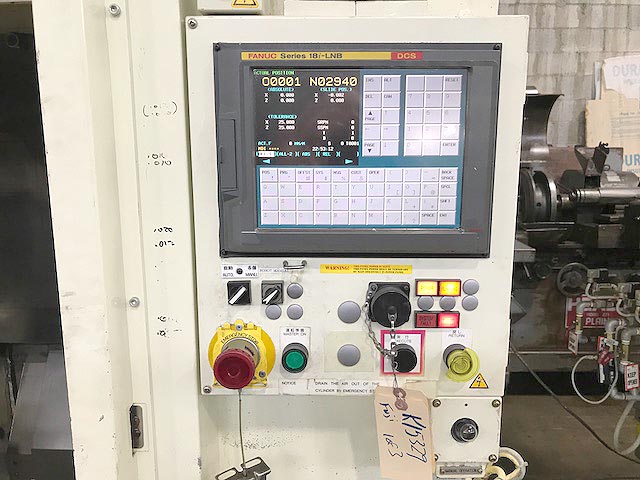

Fanuc 18i-LNB CNC Control w/ Color CRT, Data Line RS-232 Port,
Linear and Circular Interpolation, Hydraulic Chuck Actuator with Expanding

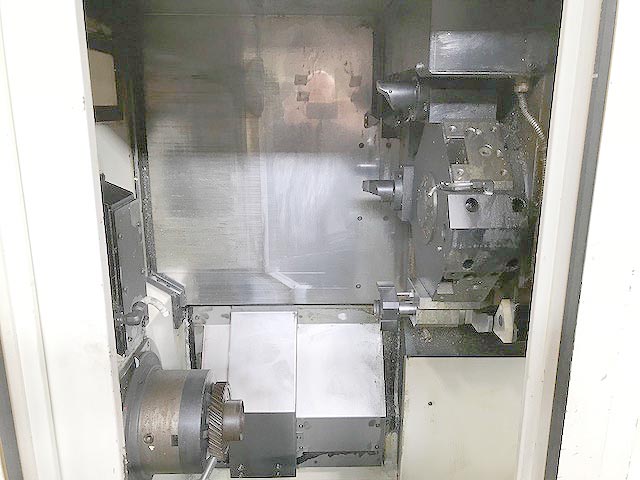

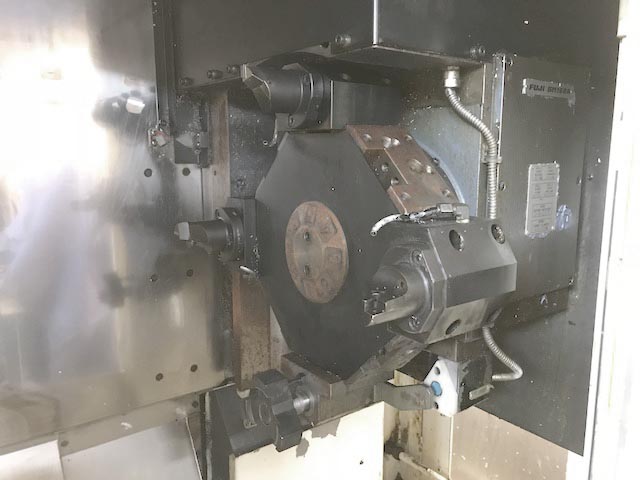

Mandral Fixture, 8-Position Tool Turret, Tool Probe, Auto Lube, Auto Door,
Accretech Automatic Micrometer Part Measuring System, Light Curtains,
Chip Conveyor and Coolant System.

CATALOG SPECIFICATIONS:
Max Swing Over Bed...................................................... 16.5"
Recommended Max Work Diameter............................... 7.9"
Max Swing Over Carriage.............................................. 10.3"
Standard Chuck Size (Not Equipped)............................. 8"
Cross Travel (X-Axis)...................................................... 8.86"
Longitudinal Travel (Z-Axis)............................................ 18.31"
Rapid Traverse Rate....................................................... 944 IPM
Number of Turrets.......................................................... 1
Tool Positions................................................................. 8 Total
Spindle Bore................................................................... 2.2"
Spindle Nose.................................................................. A2-6
Spindle Speed Range (1 RPM Increments)................... 35-3500 RPM
Spindle Horsepower....................................................... 10 HP
Electrics.......................................................................... 230/3/60
Approximate Machine Dimensions................................. 75" x 69"
Approximate Machine Height.......................................... 86"
Approximate Machine Weight......................................... 7,000 LBS

CONDITION: Appears to be in Very Good Condition!
