Haas TL-15B CNC Turning Center
with Sub-Spindle and Live Tooling

ACTUAL PHOTOS

Video Link

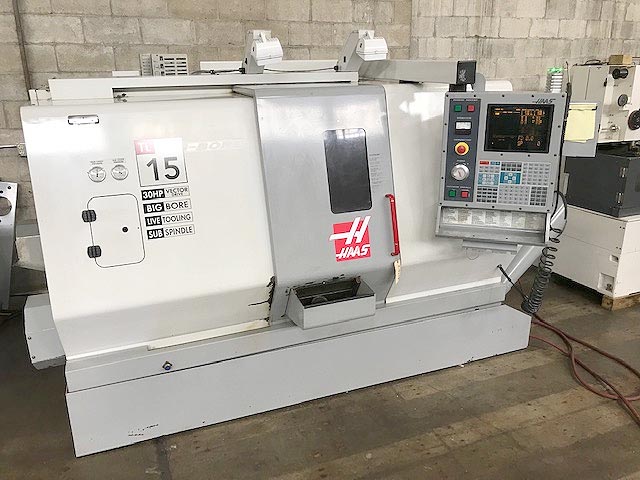

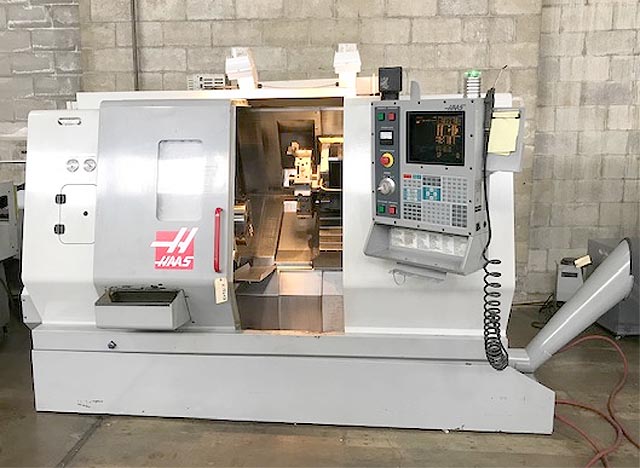

                         HAAS TL-15B CNC TURNING CENTER with SUB-SPINDLE and LIVE TOOLING
                                                               Model TL-15 Big Bore, New 2001
                                                                             Stock# K15643


MACHINE DESCRIPTION:

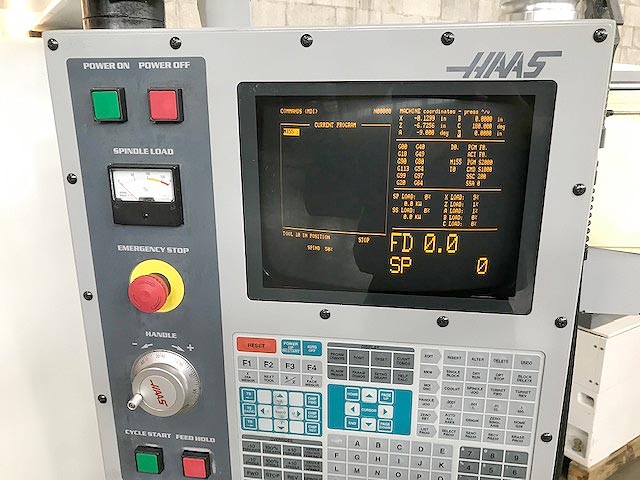

HAAS CNC Control, Quick Code Programming, RS-232 Port, Floppy Drive,

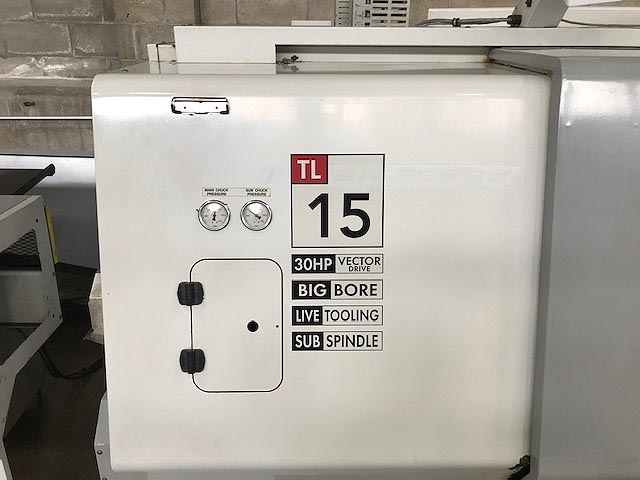

Big Bore Option, Live Tooling, Full Contouring C-Axis Spindle,

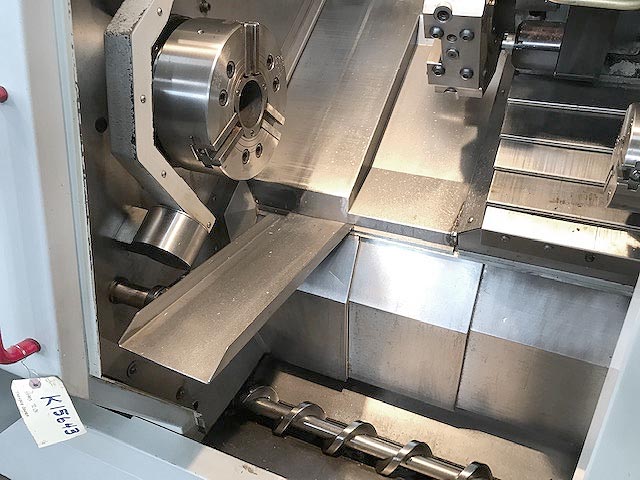

Sub-Spindle, 10" Kitagawa B-210 Power 3-Jaw Chuck on the Main Spindle,
5.5" 3-Jaw Chuck on the Sub-Spindle, 30 HP Vector Drive Spindle,

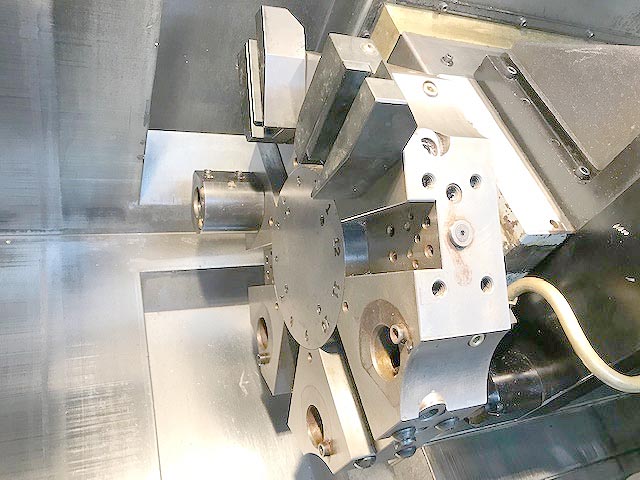

Tool Presetter, Parts Catcher, Tool Offsets, 12 Position ID/OD Turret,

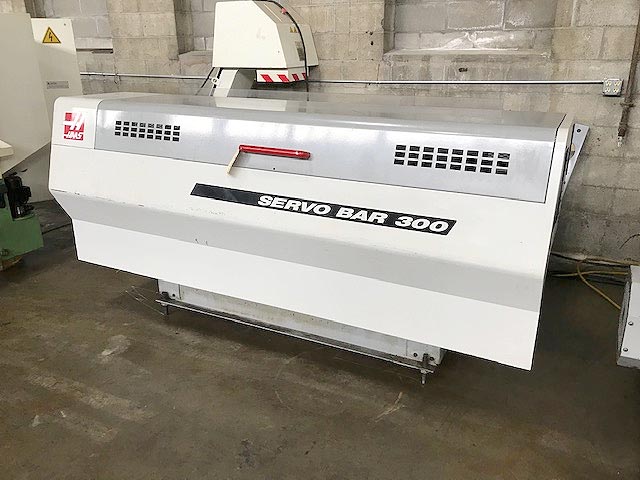

Haas Servo Bar 300 Bar Feeder, Rigid Tap, Heavy Duty Bed Construction,
Centralized Lubrication System, Load Monitor, Chip Auger, Coolant System.


CATALOG SPECIFICATIONS:
Max Swing Over Saddle..................................... 21.65"
Max Turning Diameter...................................... 8.2"
Max Swing Over Cross Slide................................ 9.5"
Max Work Length........................................... 17.5"
Distance Between Main and Sub Spindle..................... 22.11"
Cross Travel (X-Axis)..................................... 7.5"
Longitudinal Travel (Z-Axis).............................. 17.5"
Sub-Spindle Slide (B-Axis)................................ 17.9"
C Axis.................................................... 360,000 Pos.
Rapid Traverse Rate ...................................... 710 IPM
Bar Capacity.............................................. 3"
Spindle Nose.............................................. A2-6
Spindle Speed Range....................................... 45-3400 RPM
Sub-Spindle Speed Range................................... 40-4000 RPM
Live Tooling Speeds....................................... 30-3000 RPM
Spindle Drive Motor....................................... 30 HP
Live Tool Motor........................................... 5 HP
Approximate Machine Dimension............................. 102" x 67"
Approximate Machine Height................................ 80"
Approximate Machine Weight................................ 11,000 LBS


CONDITION: From a small 1-shift shop.
           Machine Appears to be in Excellent Condition!
