Lico LNC42 CNC Turning Center
with Sub-Spindle and Live Tooling

ACTUAL PHOTOS

Video Link

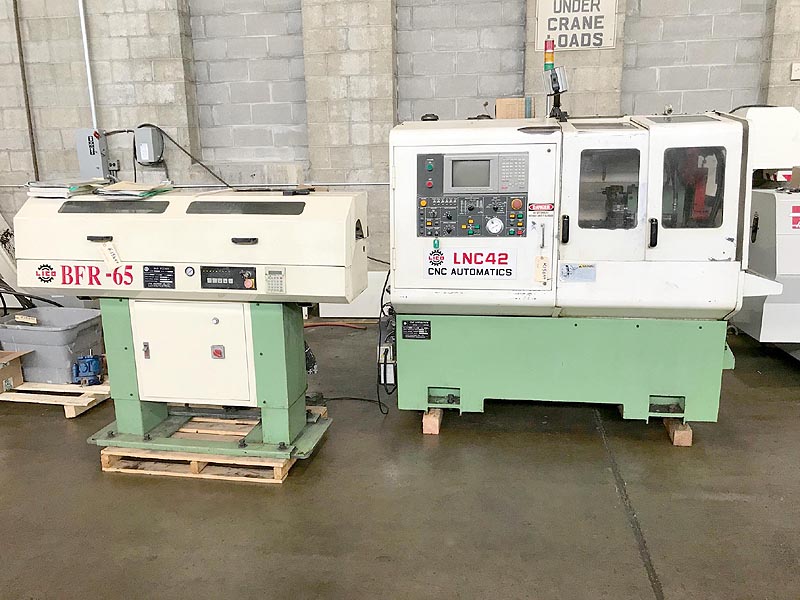

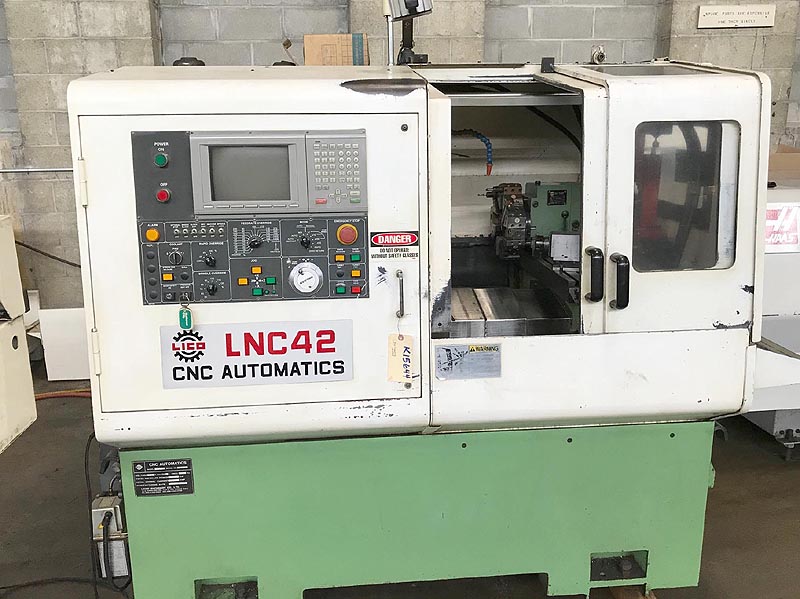

                                                           LICO LNC42 CNC TURNING CENTER
                                                            Model LNC42, S/N C86021, New 1995
                                                                             Stock# K15644


MACHINE DESCRIPTION:
Mitsubishi 520 CNC Control, 42mm Capacity Collet Chuck, RS-232

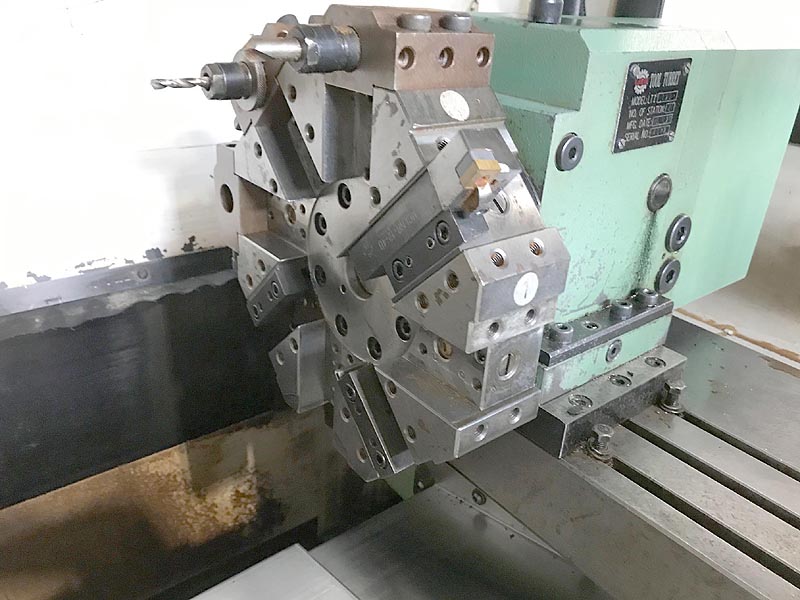

Port, Gang Tool Cross Slide with 8 Position Turret Mounted,
Cross Slide has Space Available for Mounting Additional Gang Tools and

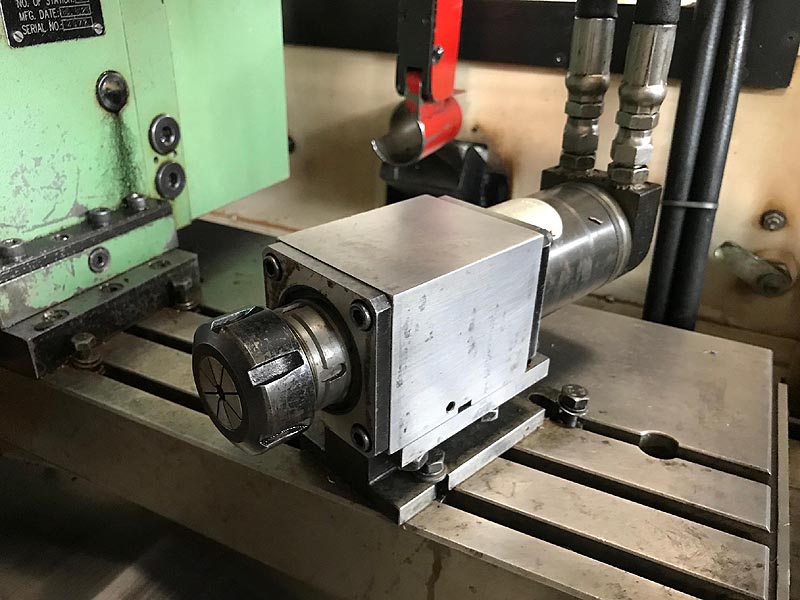

Live Tools, (3) Hydraulically Driven Live Tool Holders, Parts Catcher,
Lico BFR-65 Magizine Style Bar Feeder, Coolant System.


CATALOG SPECIFICATIONS:
Max Swing Over Bed...................................... 10.2"
Max Swing Over Closs Slide.............................. 6.5"
Max Turning Length...................................... 10.8"
Collet Chuck Size....................................... 42mm (1.625")
Cross Travel (X-Axis)................................... 11.8"
Longitudinal Travel (Z-Axis)............................ 11.8"
Rapid Traverse Rates.................................... 400 IPM
Number of Turrets....................................... 1
Tool Positions In Turret................................ 8
Gang Tool Mounting Area with Turret Mounted............. 13" x 9"
Number of Live Tools.................................... 3
Spindle Bore............................................ 42mm
Spindle Speed Range (Maximum)........................... 5000 RPM
Spindle Horsepower...................................... 7.5 HP
Approximate Dimension................................... 89" x 122"
Approximate Height...................................... 75"
Approximate Machine Weight.............................. 200 LBS


CONDITION: Machine Appears to be in Very Good Condition!
