Charmilles CNC Wire Type Electric Discharge Machine
Stock # K15650
|

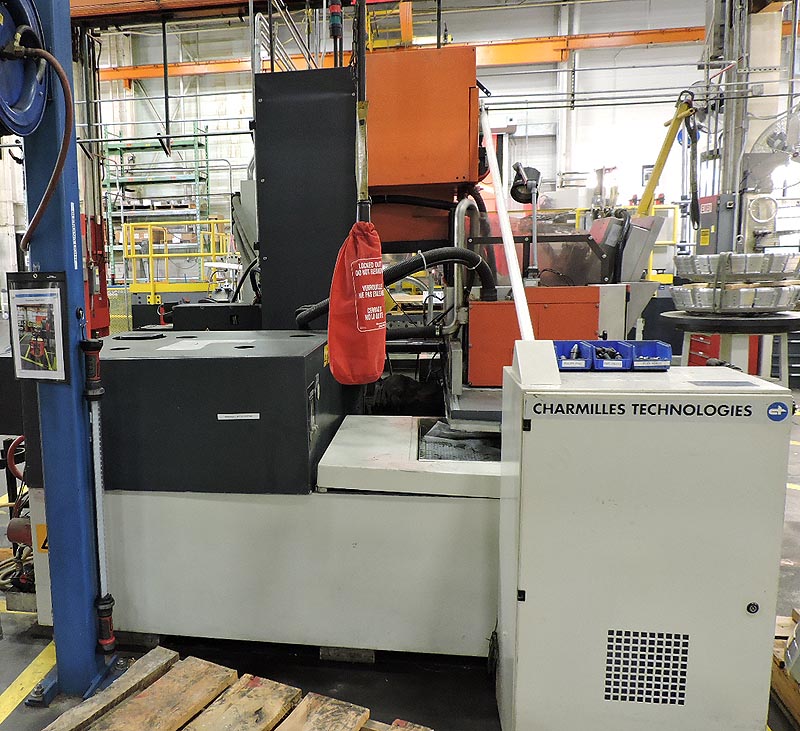

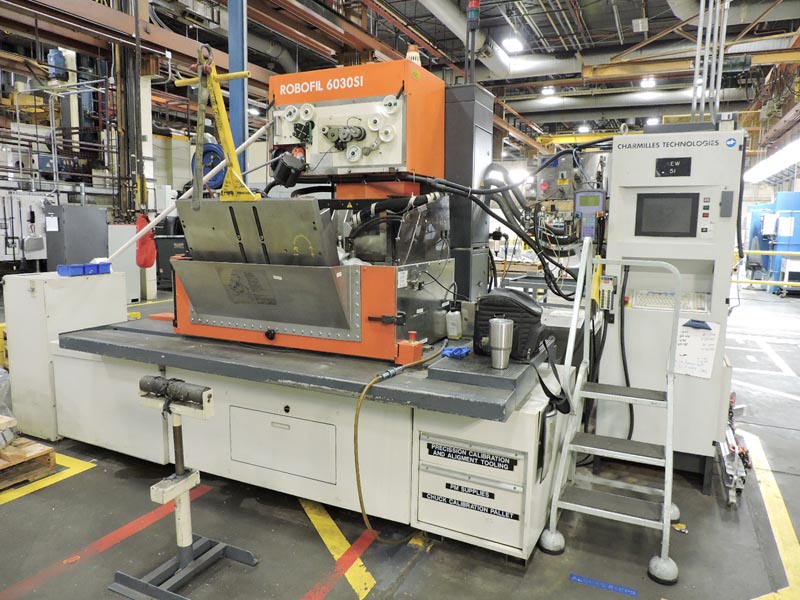

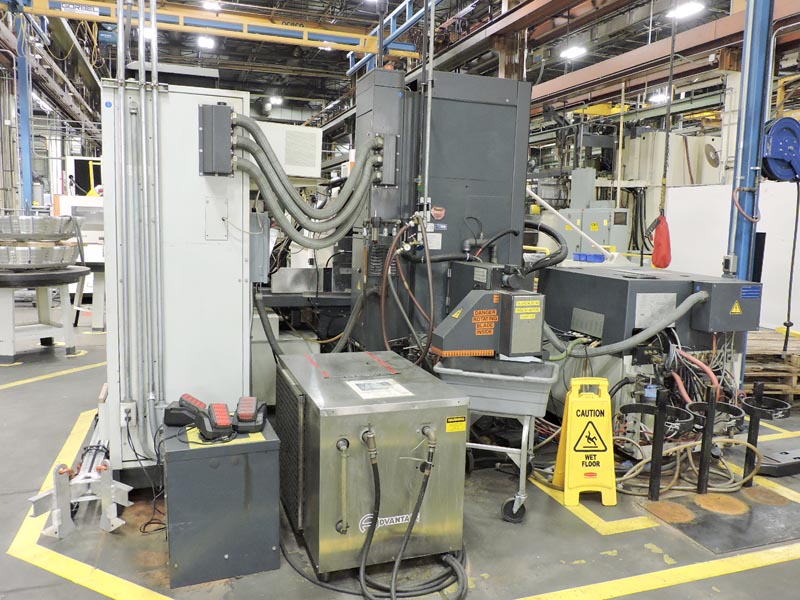

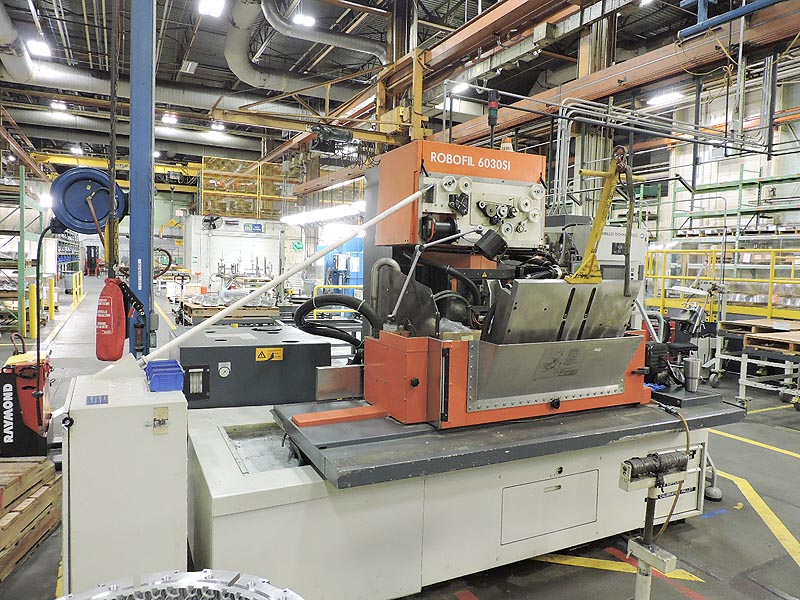

ACTUAL PHOTOS
CHARMILLES CNC WIRE TYPE ELECTRIC DISCHARGE MACHINE
Model Robofil 6030 SI, New 2000
Stock# K15650
EQUIPPED WITH:
Charmilles CNC Control, U & V Axis for Taper, Power Feed,
Automatic Threading, Chiller.
CATALOG SPECIFICATIONS:
Max Workpiece Length.................................. 49.6"
Max Workpiece Width................................... 24"
Max Workpiece Height.................................. 14.1"
Maximum Load.......................................... 1764 LBS
X Axis (Longitudinal Travel).......................... 24.72"
Y Axis (Cross Travel)................................. 15.66"
Z Axis (Vertical Travel).............................. 11.81"
U Axis Travel......................................... 3.7"
V Axis Travel......................................... 3.75"
Wire Diameter......................................... .07 - .3mm
Approximate Machine Dimensions........................ 171" x 129"
Approximate Machine Height............................ 94"
Approximate Machine Weight ........................... 11,600 LBS
CONDITION: This Machine Appears to be in Excellent Condition!
|
|
|
