4.33" Toshiba CNC Table Type
Horizontal Boring Mill

Stock Number K15655

ACTUAL PHOTOS

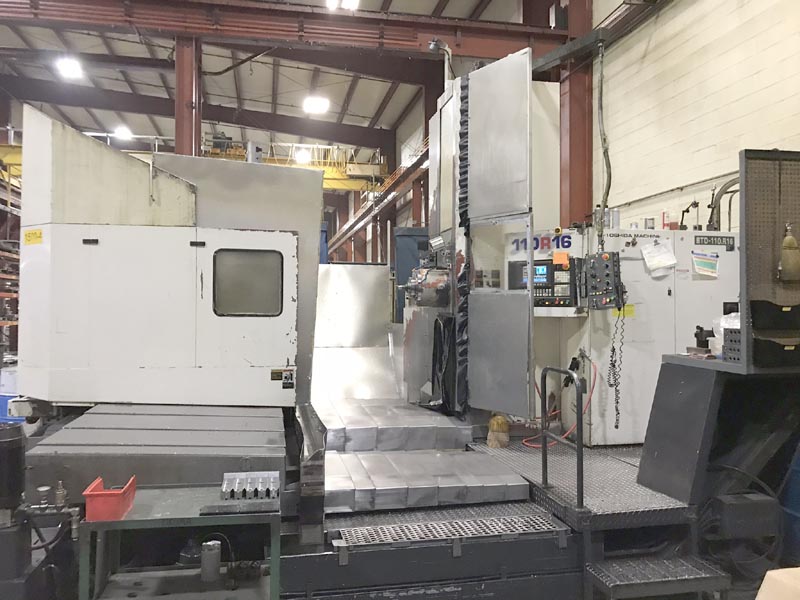

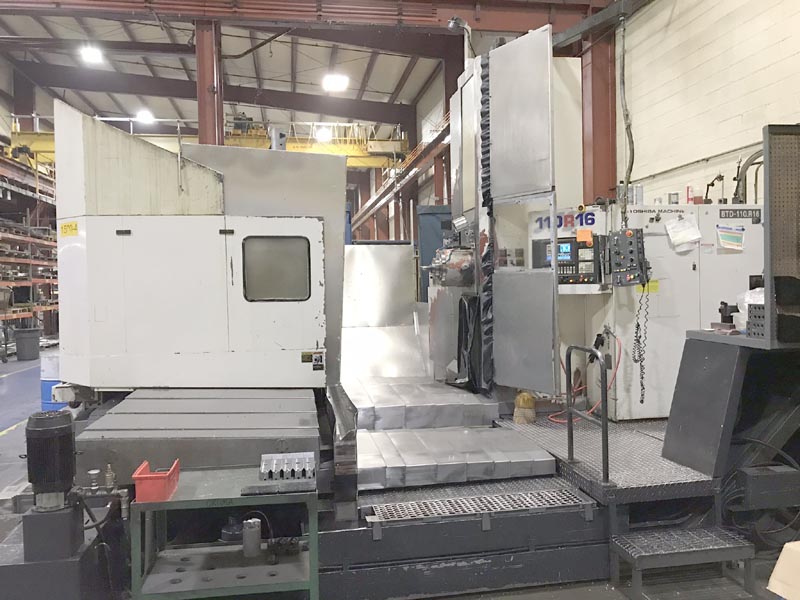

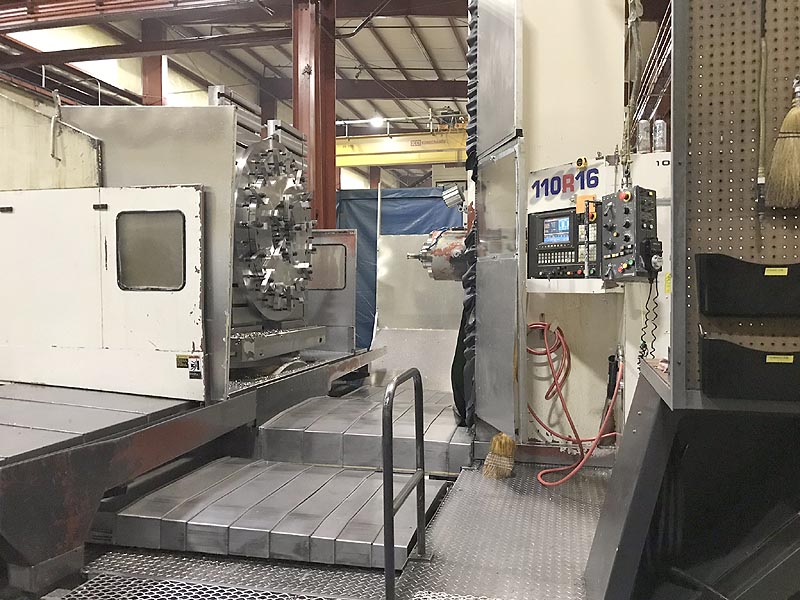

               4.33" TOSHIBA CNC TABLE TYPE HORIZONTAL BORING MILL
                                               Model BTD-110.R16, New 2005
                                                          Stock # K15655


EQUIPPED WITH:

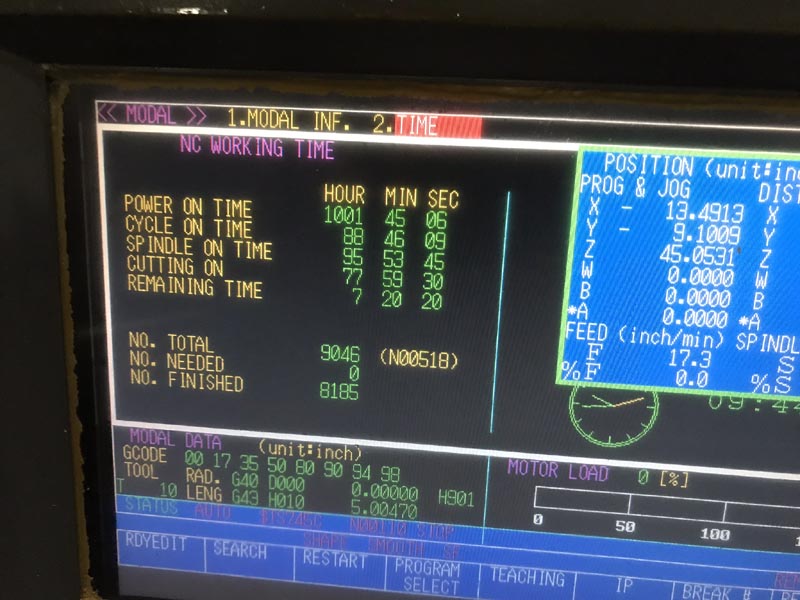

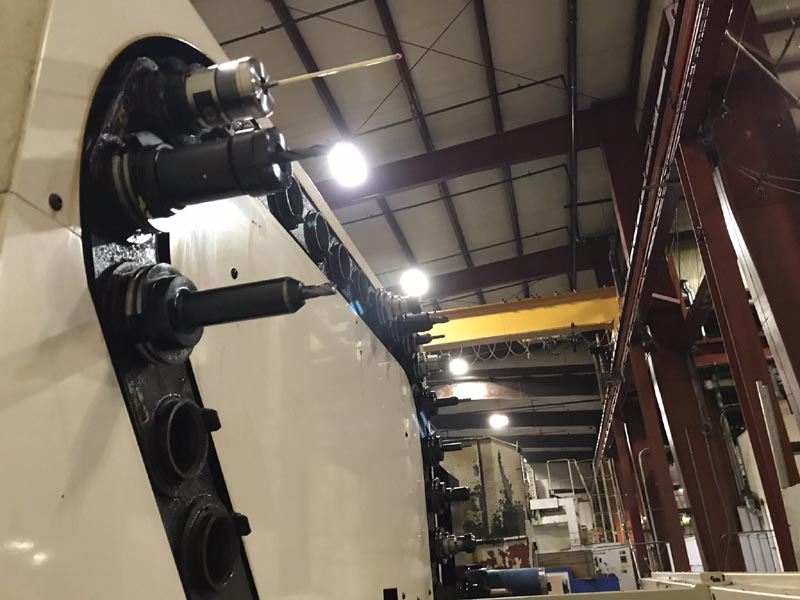

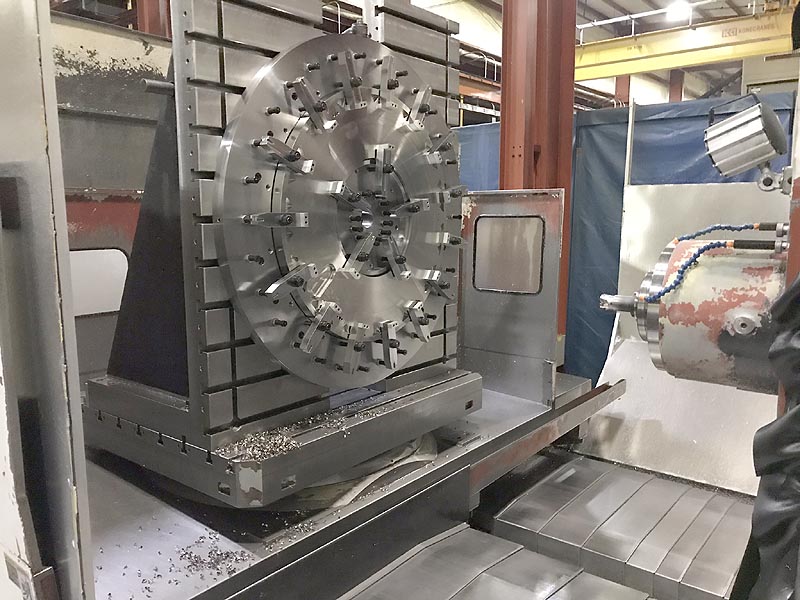

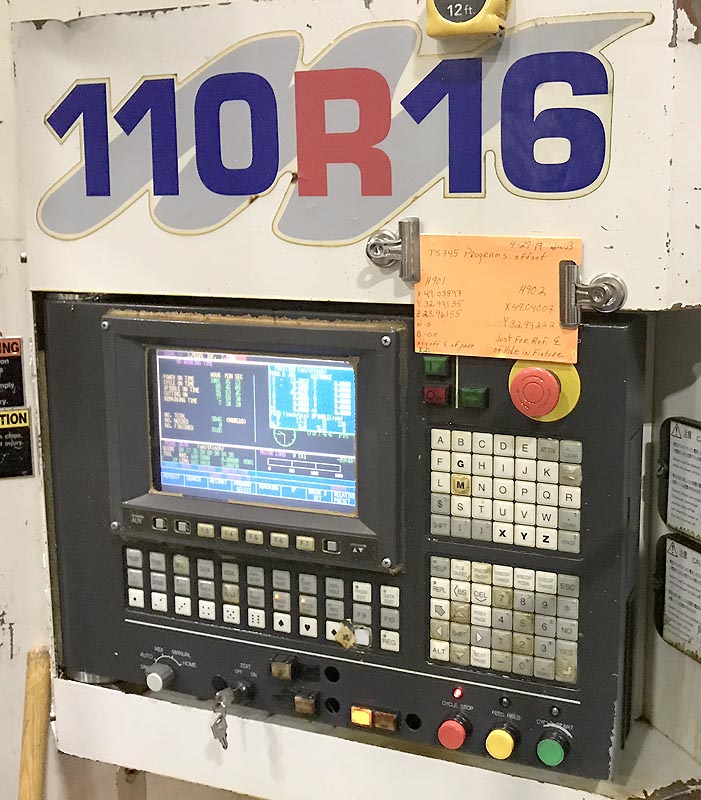

TOSNUC 888 CNC Control, 55" x 63" Full Contouring Rotary Table, 60

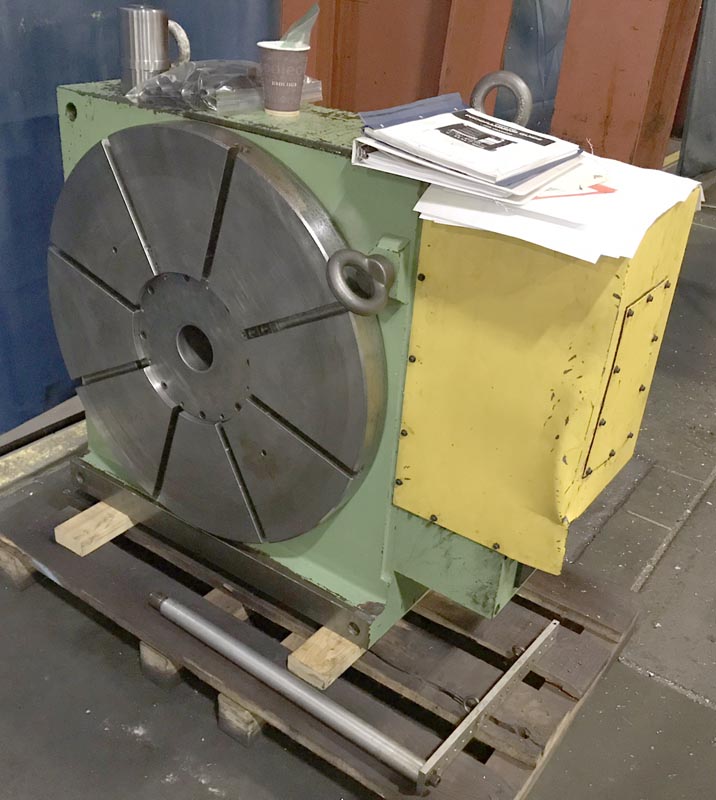

Station Automatic Tool Changer, 30" 'Add-on' CNC Vertical Rotary
Table, Heavy Duty Cat-50 Spindle, Chip Conveyor and Thru-Spindle
Coolant System.

CATALOG SPECIFICATIONS:
Spindle Diameter................................... 4.3"
Table Size......................................... 55" x 63"
Table Load Capacity................................ 30,000 LBS
Table Cross Travel (X-Axis)........................ 78.7"
Spindle-Head Vertical Travel (Y-Axis).............. 59.1"
Spindle (Quill) Travel (Z-Axis).................... 19.7"
Saddle Longitudinal Travel (W-Axis)................ 57.1"
Spindle Taper...................................... #50 ANS
Spindle Horsepower (Cont/30min).................... 30/40 HP
Spindle Speeds (Infinite in 4 ranges).............. 25 to 3000 RPM
Milling Feeds (All Axes)........................... .004 to 236 IPM
Power Rapid Traverse (X & Y Axes).................. 472 IPM
Power Rapid Traverse (Z & W Axes).................. 225 IPM
Electrics.......................................... 460/3/50
Approximate Machine Dimensions..................... 201" x 245"
Approximate Machine Height......................... 157"
Approximate Machine Weight......................... 62,000 LBS


CONDITION: Machine Appears to be in Excellent Condition!!
