Sweco Vibratory Finisher

ACTUAL PHOTOS

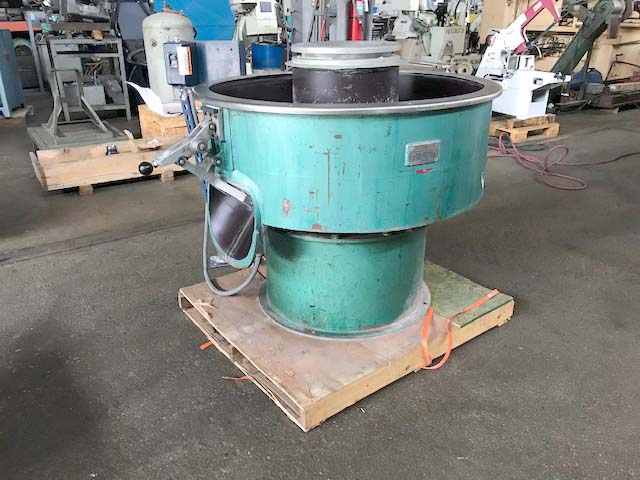

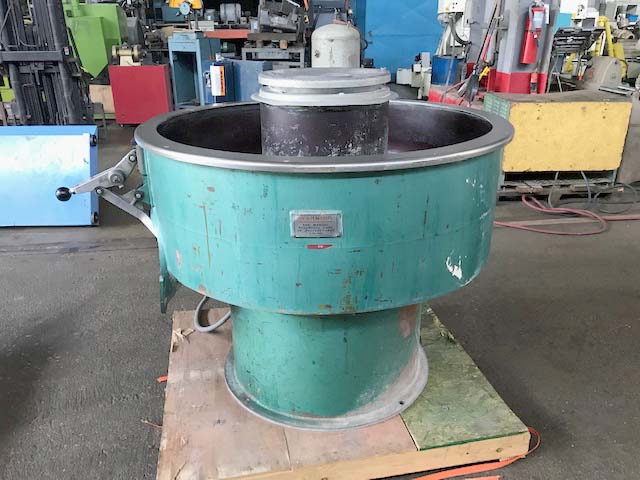

                   10 CU FT SWECO VIBRATORY DEBURRING/FINISHING MILL

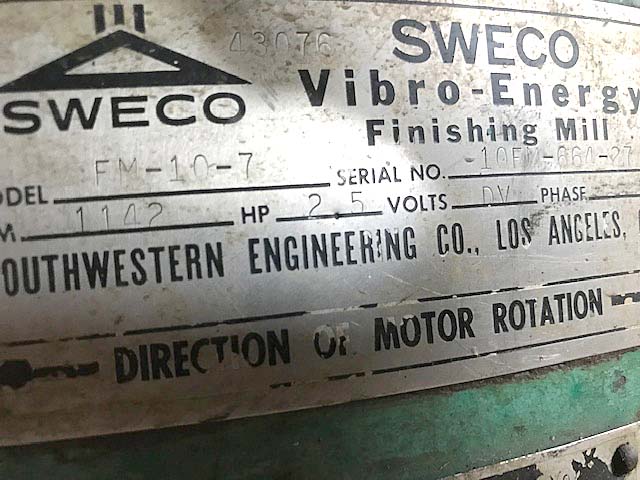

                        Model FM-10-7, S/N 10FM-664-2, New 1964
                                      Stock # K15658


EQUIPPED WITH:

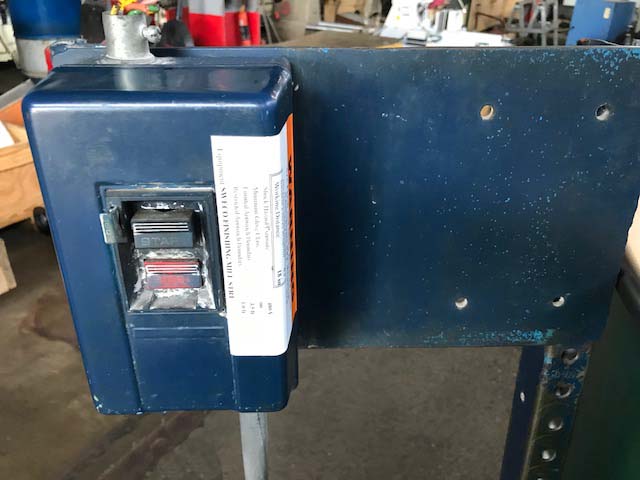

Separate Electrical Box, 44-3/4" Diameter by 14" Deep Tank with a Cast
Polyurethane Elastomer Tub Liner.


CATALOG SPECIFICATIONS:
Capacity................................................. 10 CU.FT.
Bowl Size................................................ 44-3/4" DIA
Bowl Chamber Width....................................... 13"
Maximum Straight Part Length............................. 24"
Maximum Load Capacity.................................... 3,000 LBS
Motor, Horsepower........................................ 5 HP
Motor, RPM............................................... 1200 RPM
Electrics................................................ 230/3/60
Approximate Machine Dimensions........................... 45" DIA
Approximate Machine Height............................... 46"
Approximate Machine Weight............................... 1,300 LBS

CONDITION: Appears to be in Very Good Condition.
