6" x 18" Harig Hand Feed Horizontal Spindle Grinder

ACTUAL PHOTOS

                                       6" x 18" HARIG HAND FEED HORIZONTAL SPINDLE GRINDER
                                                           Model Super 618, S/N 15561, New 1984
                                                                             Stock# K15671


MACHINE DESCRIPTION:
Accurite 2-Axis Digital Readouts,
Hand Feed Reciprocation & Crossfeed, Hand Downfeed,

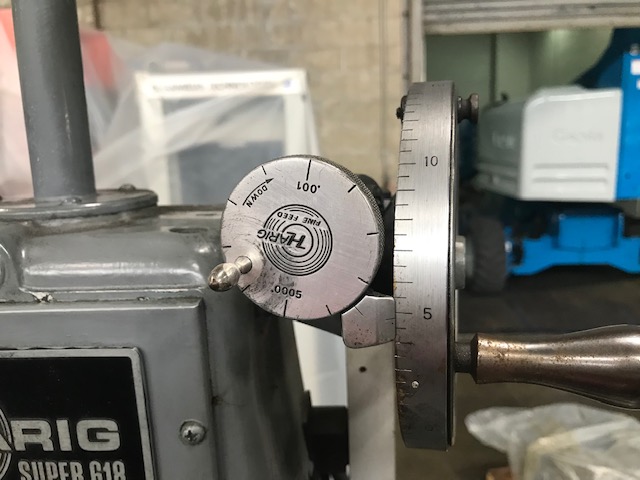

Fine Feed Handwheels on Reciprocation and Downfeed,

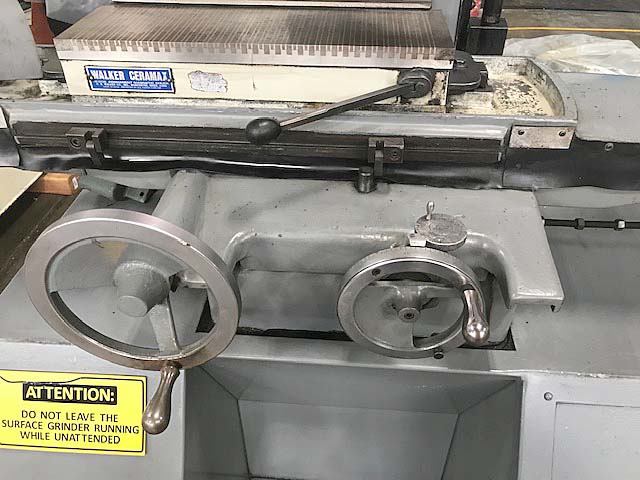

Walker 6" x 18" Pole Magnetic Chuck, Work Light,

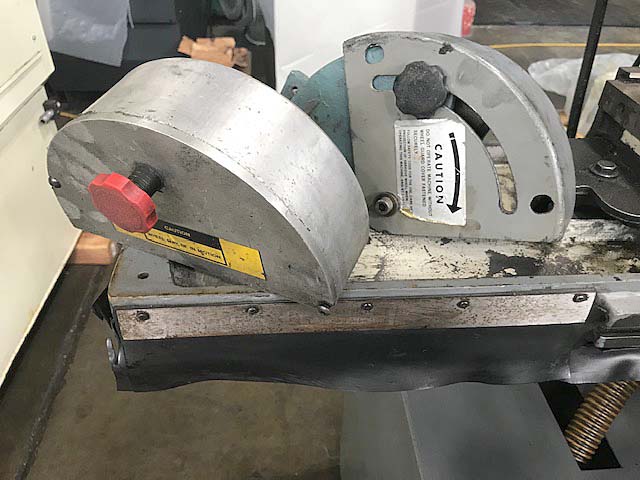

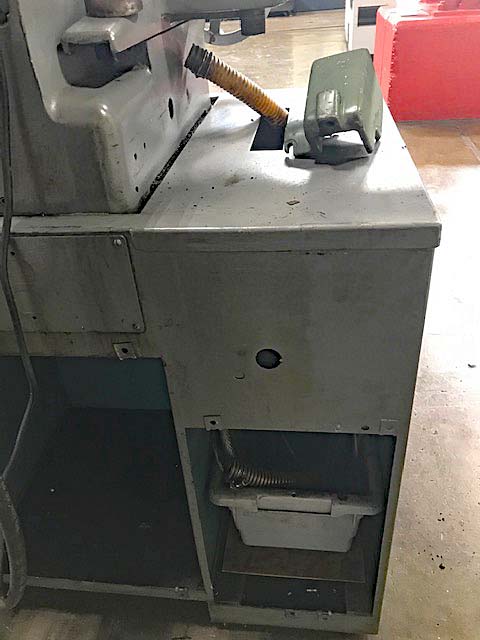

Coolant System, Wheel Guards for Wet or Dry.


CATALOG SPECIFICATIONS:
Max Table Working Surface............................ 6" x 18"
Magnetic Chuck Working Surface....................... 6" x 18"
Longitudinal Travel (X-Axis)......................... 18-1/2"
Cross Travel (Z-Axis)................................ 7.25"
Vertical Travel (Y-Axis)............................. 14.5"
Max Height Under New Wheel........................... 12"
Max Height Spindle Center to Table................... 15.5"
Standard Grinding Wheel Diameter..................... 7"
Maximum Grinding Wheel Diameter...................... 8"
Grinding Wheel Width................................. 1/2"
Grinding Wheel Hole Diameter......................... 1-1/4"
Grinding Wheel Motor................................. 1 HP
Spindle RPM.......................................... 3450 RPM
Electrics (Dual Voltage)............................. 240/460/3/60
Approximate Machine Dimensions....................... 67"x 55"
Approximate Machine Height........................... 69"
Approximate Machine Weight........................... 1,500 LBS


CONDITION: From a Tool Room, Appears to be in Very Good Condition !
