Daewoo Doosan Puma 300C CNC Turning Center

ACTUAL PHOTOS

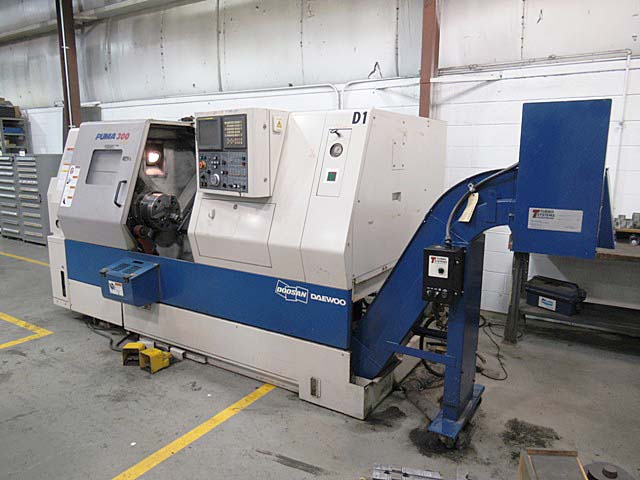

                                                 DAEWOO PUMA 300C CNC TURNING CENTER
                                                    Model Puma 300C, S/N PM302145, New 2006
                                                                             Stock# K15677


MACHINE DESCRIPTION:

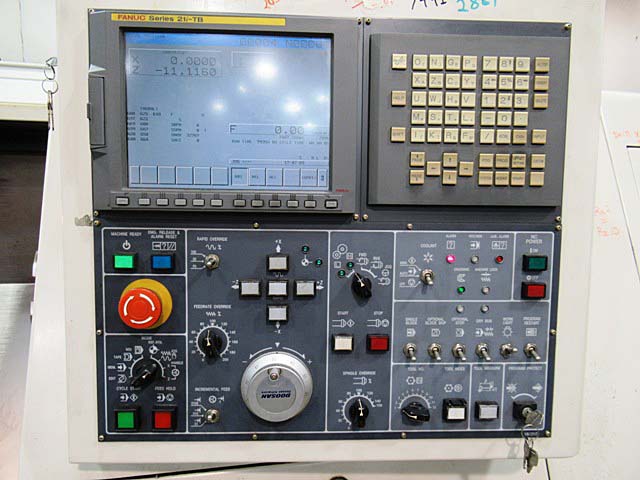

Fanuc 21i-TB CNC Control, RS-232 Port, Ethernet Port, Background

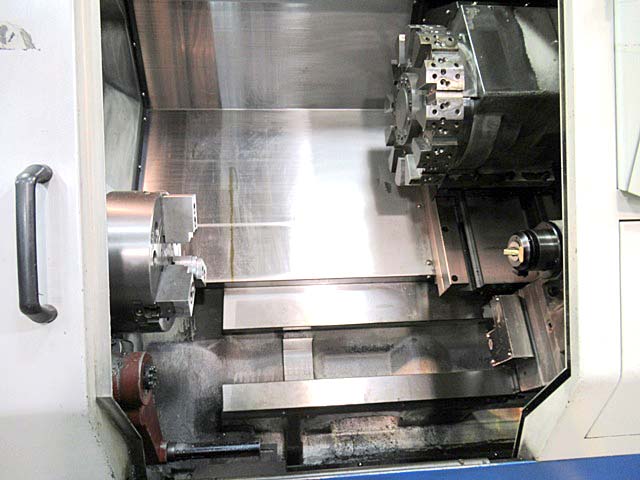

Edit, 12" 3-Jaw Kitagawa Hydraulic Chuck, 4" Bar Capacity,
Tool Setter, Parts Catcher, Barfeeder Interface, 12 Position
Turret, Tailstock with Programmable Quill, Chip Conveyor,
Coolant System.


CATALOG SPECIFICATIONS:
Maximum Swing Over Bed ............................... 23"
Maximum Swing Over Saddle............................. 14.5"
Maximum Tail Stock Position........................... 27"
Maximum Turning Length................................ 26.8"
Chuck Size............................................ 12"
Spindle Bore.......................................... 4.53"
Bar Capacity.......................................... 4"
Cross Travel (X-Axis)................................. 11.1"
Longitudinal Travel (Z-Axis).......................... 26.8"
Rapid Traverse Rate (X-Axis).......................... 800 IPM
Rapid Traverse Rate (Z-Axis).......................... 945 IPM
Tool Positions........................................ 12
Spindle Nose ......................................... A2-8
Spindle Speed Range................................... 10-2800 RPM
Spindle Drive Motor (30 Minute)....................... 30 HP
Hydraulic Tailstock Taper............................. #5 MT
Approximate Machine Dimensions........................ 135" x 72"
Approximate Machine Height............................ 80"
Approximate Machine Weight............................ 16,000 LBS


CONDITION: This Machine Appears to be in Excellent Condition!
