Mori Seiki NL-3000/1250 CNC Turning Center
Stock # K15748
|
|
ACTUAL PHOTOS
Video Link

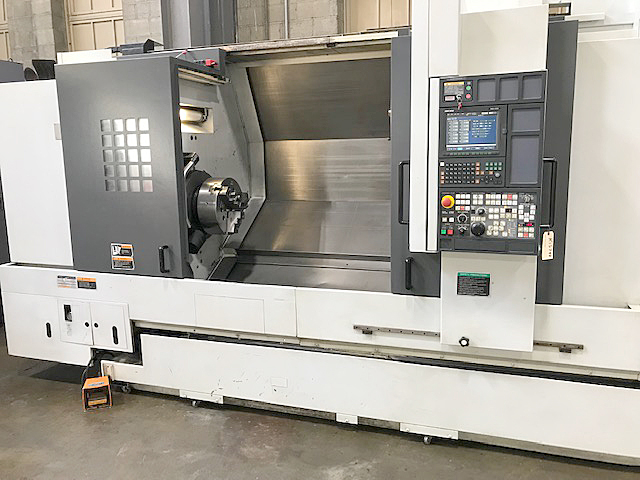

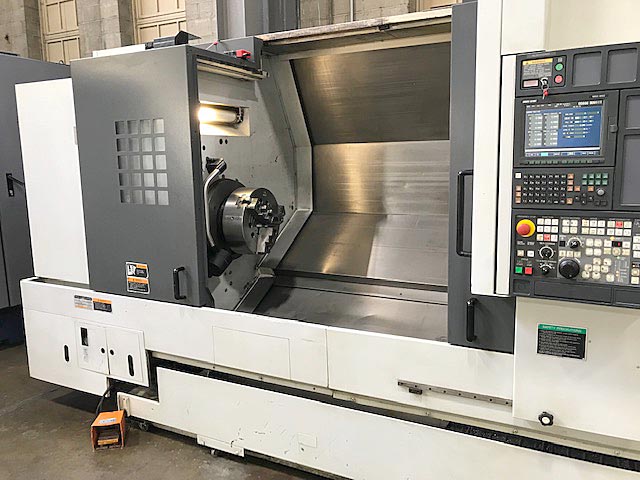

MORI SEIKI NL-3000/1250 CNC TURNING CENTER
Model NL-3000, S/N NL301FC0450, New 2006
Stock# K15748
EQUIPPED WITH:

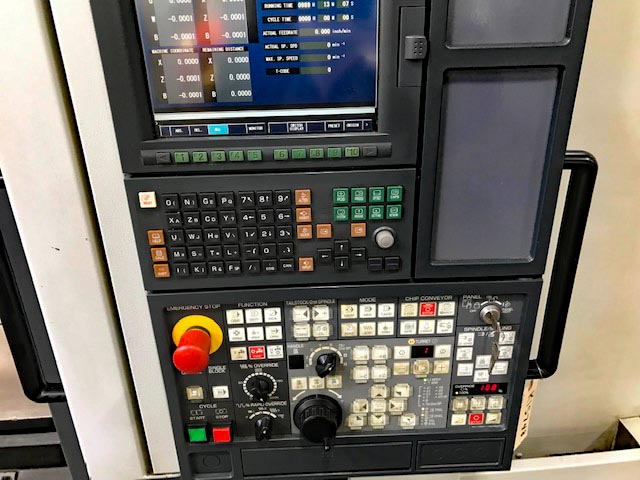

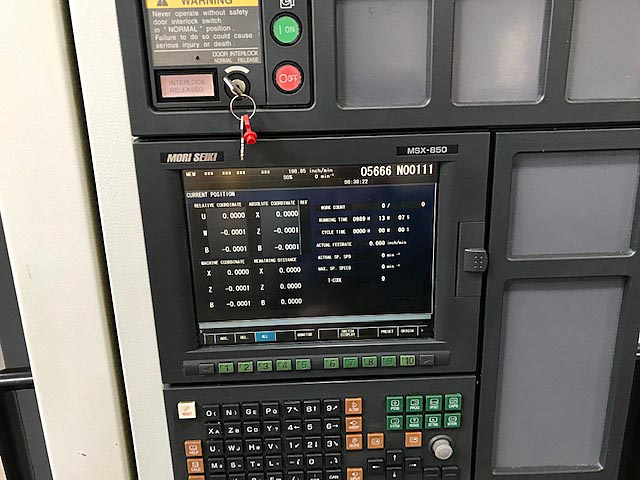

Mori Seiki MSX-850 CNC Control, Multiple Part Program Storage,
RS-232 Port, Ethernet Port, Background Edit, Chiller

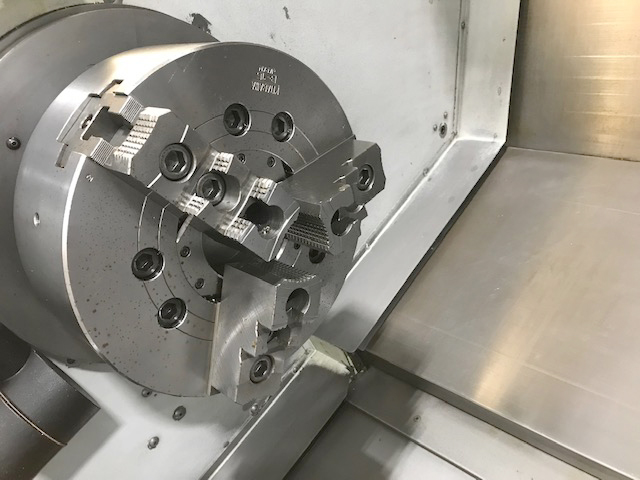

15" 3-Jaw Kitagawa Hydraulic Chuck, 2-Range Geared Spindle,

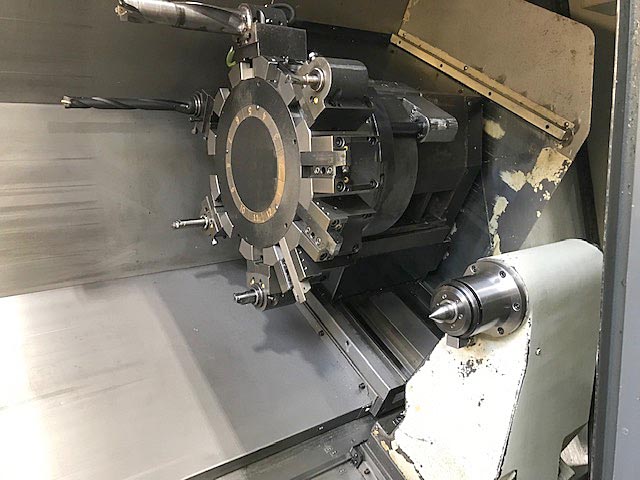

3.5" Bar Capacity, Automatic Tool Presetter, 12 Position Turret,
Tailstock with Programmable Slide, Foot Switch, Chip Conveyor,
Coolant System, Tooling Blocks, Leveling Feet, Full Set of Manuals.
CATALOG SPECIFICATIONS:
Maximum Swing Over Bed .............................. 27.56"
Maximum OD Turning Over Saddle................. 16.54"
Maximum Tail Stock Position............................ 49.8"
Maximum Turning Length................................. 49.61"
Chuck Size....................................................... 15"
Spindle Bore..................................................... 4.13"
Bar Capacity..................................................... 3.54"
Cross Travel (X-Axis)........................................ 11.1"
Longitudinal Travel (Z-Axis).............................. 53.94"
Rapid Traverse Rate (X-Axis)........................... 1181 IPM
Rapid Traverse Rate (Z-Axis)........................... 1181 IPM
Tool Positions.................................................... 12
Spindle Nose .................................................... A2-8
Spindle Speed Range....................................... 10-3000 RPM
Spindle Drive Motor (30 Minute)....................... 30 HP
Hydraulic Tailstock Taper................................... #5 MT
Electrics............................................................. 220/3/60
Approximate Machine Dimensions.................... 168" x 98"
Approximate Machine Height............................. 90"
Approximate Machine Weight............................ 17,000 LBS
CONDITION: This Machine Appears to be in Excellent Condition.
|
 |
|
