Union Traveling Column CNC Universal Machining Center

Stock # K15781

Large CNC Universal Mill Horizontal / Vertical, Union FC-1 CNC Machining Center, Universal Swiveling Head CNC Machining Center, Large Travel CNC Machining Center For Sale

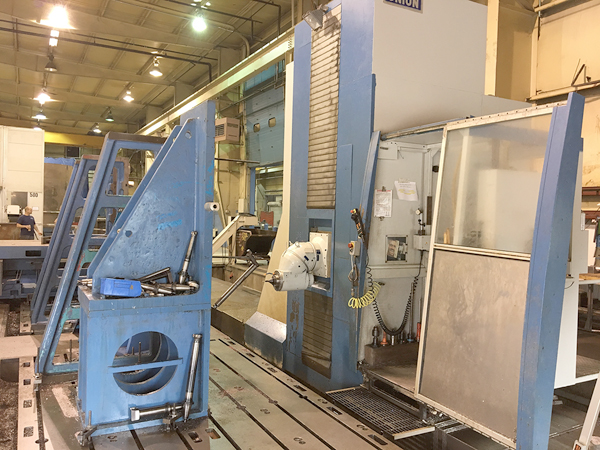

ACTUAL PHOTOS

                                UNION TRAVELING COLUMN CNC UNIVERSAL MACHINING CENTER
                                                                      Model FC-1, New 2006
                                                                              Stock# K15781

EQUIPPED WITH:
Heidenhain iTNC530 CNC Control, Heidenhain Scale Feedback,
Operator cabin with controls, CNC 2 Axis Universal head with
2.5 degree Indexing/Clamping, 24 Station Tool Changer,
79" x 98" Full Contouring Rotary Table, Chip conveyor,
Coolant thru spindle (300 PSI) with filtration system,
Complete documentation.

CATALOG SPECIFICATIONS:
X axis travel...................................... 10,000 mm (394")
Y axis travel...................................... 2,600 mm (102")
Z axis travel ram............................... 1,600 mm (63")
A axis travel....................................... +/- 120 degrees
B axis travel...................................... 360 degrees
Rotary table size............................... 79" x 98"
Rotary table load capacity................. 44,000 lbs.
Floor Plate size................................. 79" x 315"
Table load capacity............................ 80,000 lbs.
Spindle.............................................. CAT #50
Spindle speed................................... 5000 rpm
Spindle torque / power...................... 600 Ft-lbs / 50 HP MTDR
Rapid traverse rates (X, Y & Z)......... 787 IPM
Automatic tool changer capacity........ 24 tools

CONDITION: From High Precision Shop Doing Government Work.
                      This Machine Appears to be in Excellent Condition.
