40" / 56" x 120" Timemaster Gurutzpe Gap Bed Engine Lathe
Stock # K15800
|
|

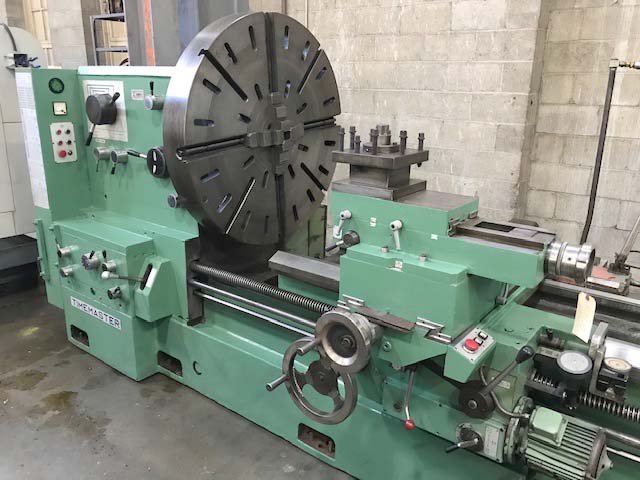

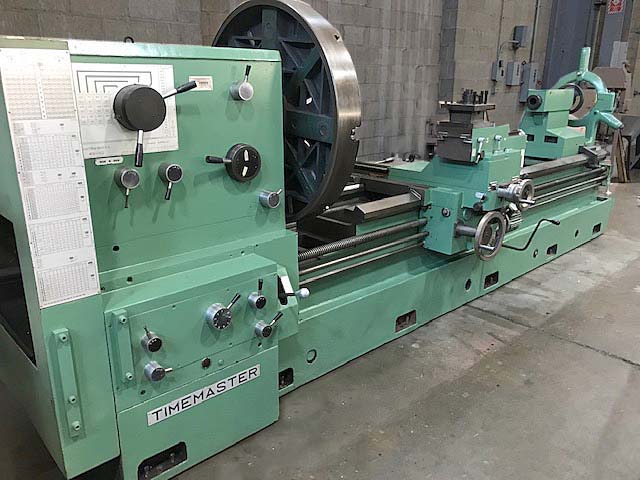

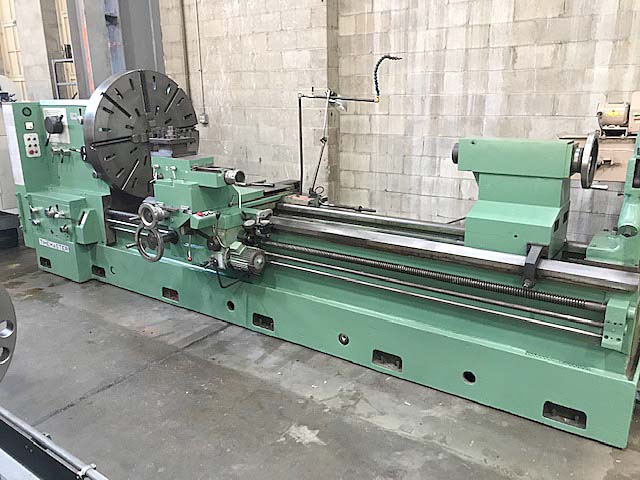

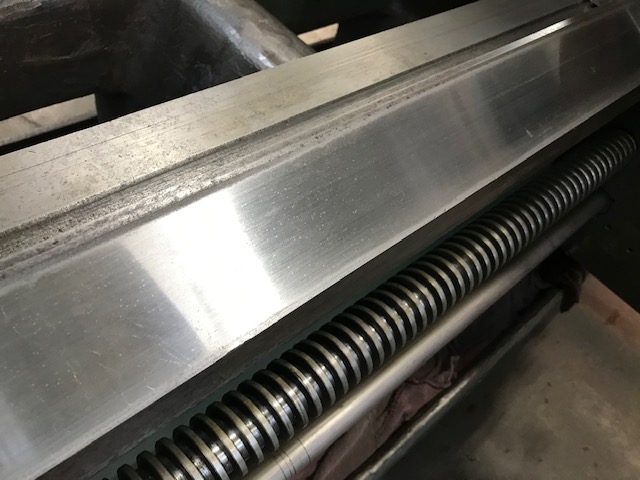

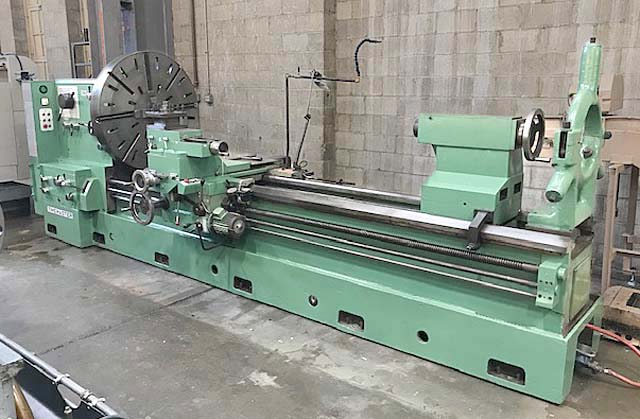

ACTUAL PHOTOS
40" / 56" x 120" TIMEMASTER GURUTZPE GAP BED ENGINE LATHE
Model Super-AT, S/N 13-27, New 1982
Stock# K15800
EQUIPPED WITH:
44" 4-Jaw Chuck, 5.5" Spindle Bore, Flange for Mounting a Rear Chuck,

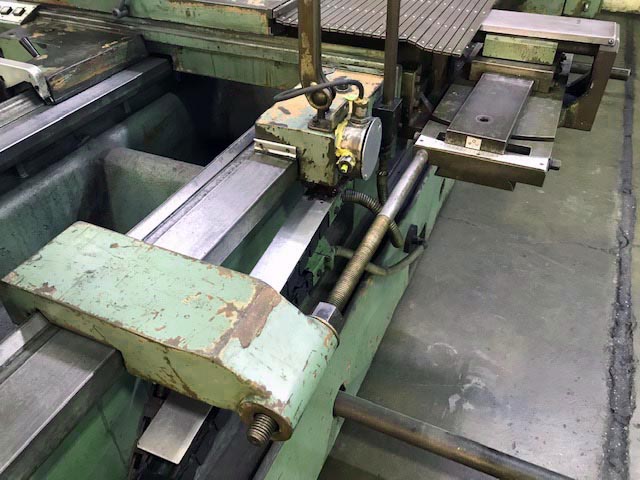

(1) 13" Max Capacity Steady Rest, Rapid Traverse, Inch/Metric/Module & DP

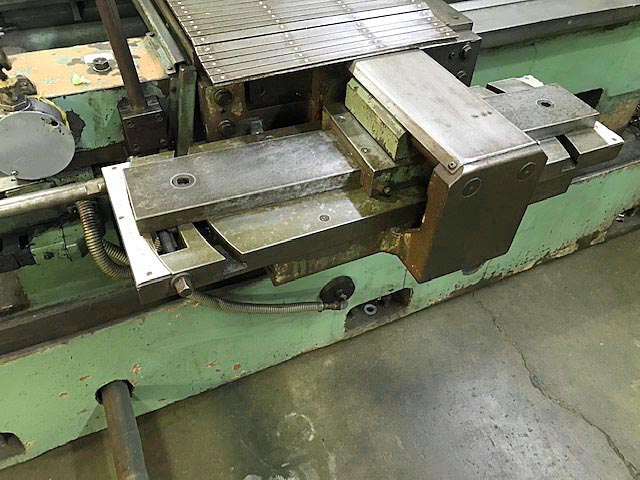

Threading, Taper Attachment with Anchor, Tailstock w/120" Centers, Compound
Cross Slide, Coolant System, Chip Pans.
CATALOG SPECIFICATIONS:
Swing over the bed....................................... 40"
Swing over the cross slide............................ 28.73"
Swing in the Gap........................................... 56"
Distance between centers............................. 120"
Cross Slide Travel......................................... 16-1/4"
Spindle Nose.................................................. D1-11
Spindle Bore................................................... 5.5"
Taper in Tailstock............................................ MT-6
Tailstock Quill Travel...................................... 10"
Spindle Speed (24)......................................... 9-500 RPM
Feed Range (108).......................................... .0009-.06" IPR
Metric Threads (61)........................................ 1-112 mm
Inch Threads (81)........................................... 1/4-112 TPI
Main Motor...................................................... 21 HP
Coolant Pump................................................. 1/4 HP
Approximate Machine Dimensions................. 58" x 202"
Approximate Machine Weight......................... 15,000 LBS
CONDITION: This Machine Appears to be in Excellent Condition.
|
 |
|
