Cincinnati Hawk 150 6" Chuck CNC Lathe with Bar Feeder For Sale
Cincinnati Milacron 'Hawk' CNC Turning Center
Stock # K15807
|
|

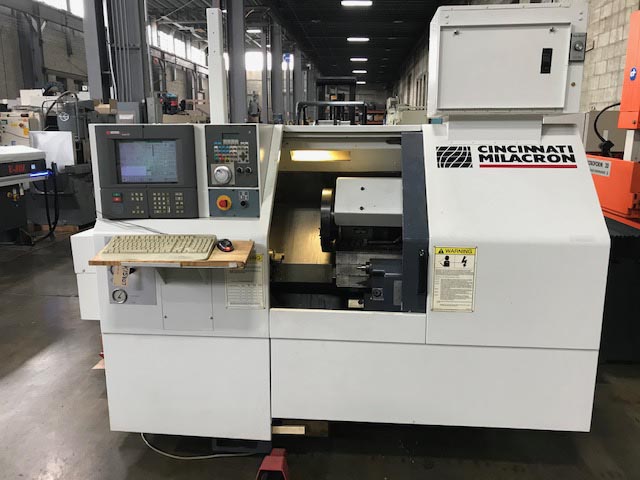

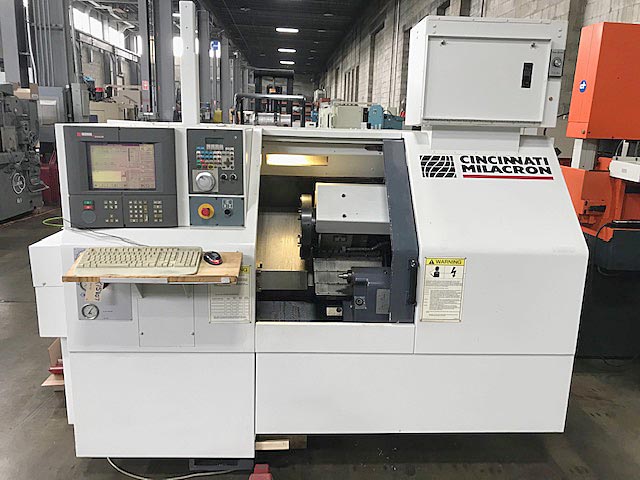

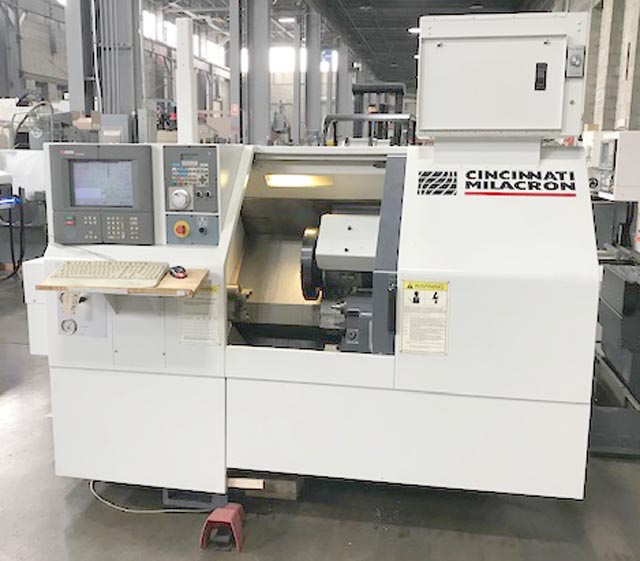

ACTUAL PHOTOS
CINCINNATI MILACRON 'HAWK' CNC TURNING CENTER

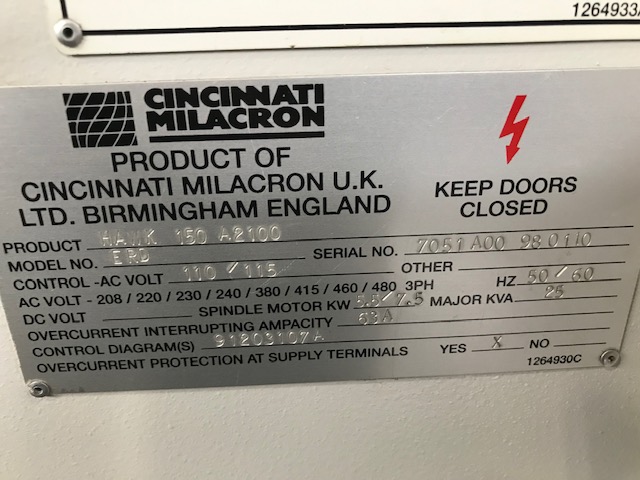

Model Hawk 150, S/N 7051A00-98-0110, New 1998
Stock# K15807
EQUIPPED WITH:

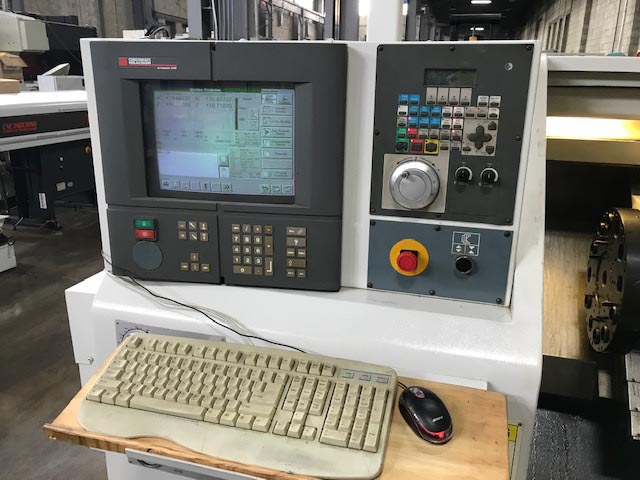

Acramatic 2100 PC Based CNC Control with Color CRT, Multiple Part

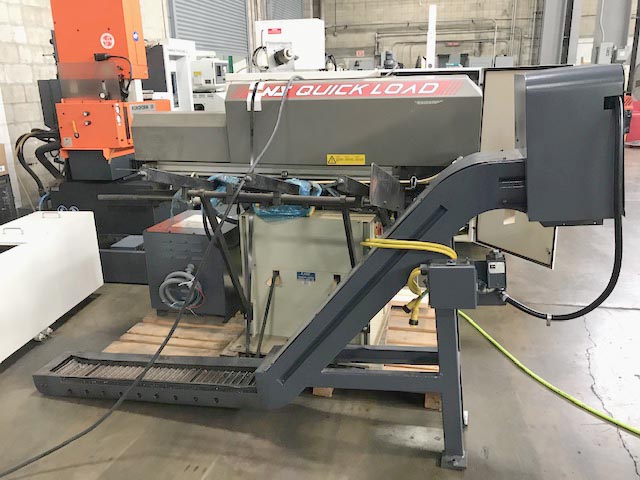

Program Storage, LNS Quick Load 4' Magazine Style Bar Feeder,
Barfeed Interface, Parts Catcher, RS-232 Port, 6" 3-Jaw Chuck,
Universal Multi Tap Transformer, Auto Lube, Chip Conveyor and
Coolant System.
CATALOG SPECIFICATIONS:
Max Swing Over Bed.................................................. 15.75"
Max Swing Over Carriage........................................... 10.63"
Max Tailstock Position................................................. 18.32"
Max Machinable Center Distance................................ 17.32"
Cross Travel (X-Axis)................................................... 8.45"
Longitudinal Travel (Z-Axis)......................................... 17.32"
Feed Range (Infinitely Variable)................................... .1-630 IPM
Rapid Traverse Rate (X-Axis)....................................... 630 IPM
Rapid Traverse Rate (Y-Axis)....................................... 1000 IPM
Number of Turrets......................................................... 1
Tool Positions................................................................ 12 Total
Spindle Bore.................................................................. 2.42"
Spindle Nose................................................................. A2-5
Spindle Speed Range (1 RPM Increments).................. 30-5500 RPM
Spindle Horsepower...................................................... 10 HP
Electrics......................................................................... 230/460/3/60
Approximate Machine Dimensions................................ 58.2" x 38"
Approximate Machine Height......................................... 63.8"
Approximate Machine Weight........................................ 10,300 LBS
CONDITION: Came from a Milacron R & D Facility.
Machine Appears to be in Very Good Condition !!
|
 |
|
