Okuma MacTurn 550W Big Bore CNC Turning Center
with Universal Head, Live Tooling, Y-Axis and Sub-Spindle

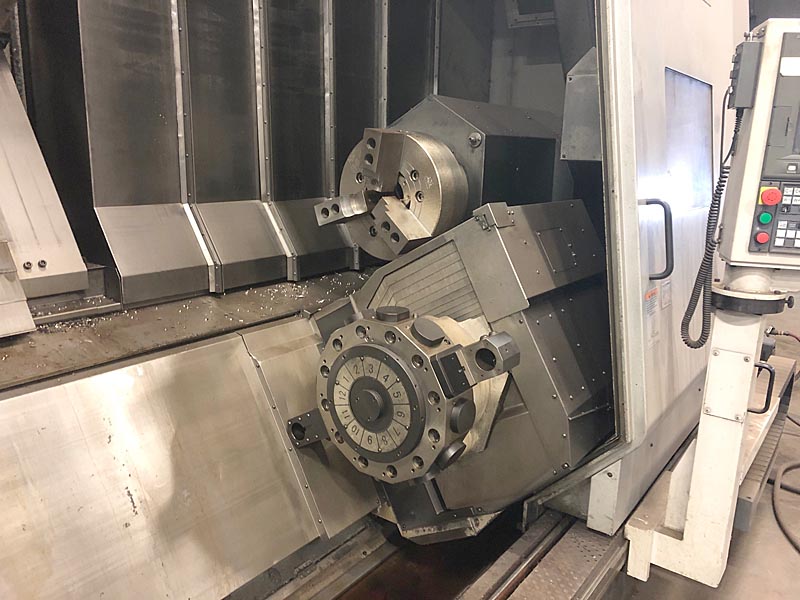

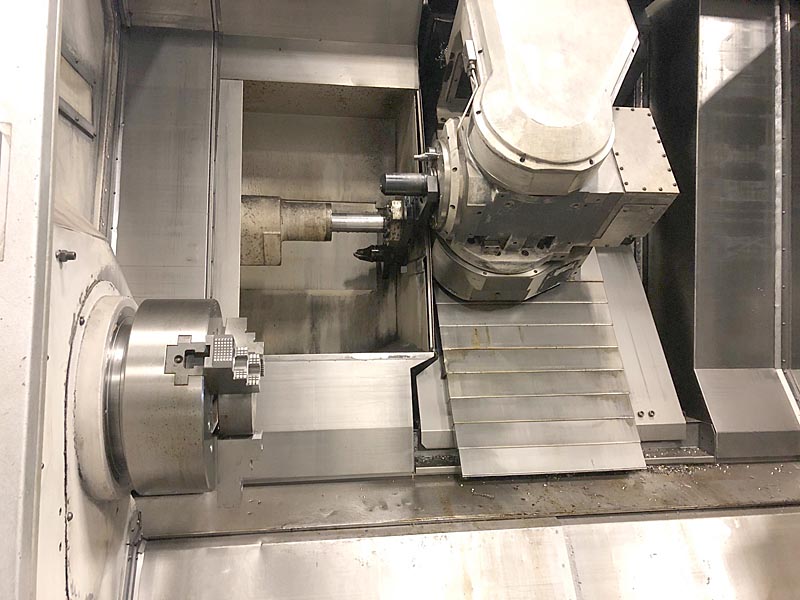

ACTUAL PHOTOS

                                        OKUMA MACTURN 550W BIG BORE CNC TURNING CENTER
                                           with Universal Head, Live Tooling, Y-Axis and Sub-Spindle
                                                               Model Macturn 550W, New 9/2008
                                                                              Stock# K15812


EQUIPPED WITH:
OKUMA OSP P200LA CNC Control, Full Contouring B-Axis Universal Head,
Kitagawa B-15 15" 3-Jaw Power Chuck, 12 Position Lower Turret Lathe Tool
Indexing, Programmable Torque Limit, 50 Station Automatic Tool Changer
Heavy Duty Sub-Spindle with 15" Chuck, 88" Between Spindles, Full
C-Axis Spindle Rotation, BT-50 Spindle Taper, 3D Animation, Servo Link
Spindle, Tool Life Management, Tool Wear Comp, Tool Setting Probe,
Helical Cutting, Synchronous Tapping, Oil Chiller, Chip Conveyor &
Coolant System.


CATALOG SPECIFICATIONS:
Max Swing Over Saddle................................................ 28.34"
Max Machining Diameter............................................... 28.34"
Max Working Distance Between Spindles..................... 88"
Cross Travel (X-Axis)..................................................... 25.98"
Longitudinal Travel (Z-Axis)........................................... 87.20"
Cross Travel Lower Turret (X2-Axis).............................. 9.05"
Longitudinal Travel (Z2-Axis)......................................... 82.67"
Y-Axis Travel ................................................................. 9.84"
B-Axis Universal Head Swivel....................................... 210 Degree
C-Axis Spindle Rotation (Both Spindles)....................... .001 Degree
Tool Positions ............................................................... 50 Total
Spindle Bore ................................................................. 5.12"
Spindle Nose ................................................................ A2-11
Spindle Speed Range .................................................. 14-3800 RPM
Spindle Horsepower Both Spindle................................ 40 HP
Live Tooling Speed Range............................................ 40-5000 RPM
Live Tooling Horsepower............................................... 15 HP
Approximate Machine Dimensions w/Conveyor............ 281" x 122"
Approximate Machine Height........................................ 123"
Approximate Machine Weight....................................... 62,000 LBS


CONDITION: Appears to be in Excellent Condition!
