Haas UMC750 5-Axis Universal CNC Machining Center

ACTUAL PHOTOS

Video Link

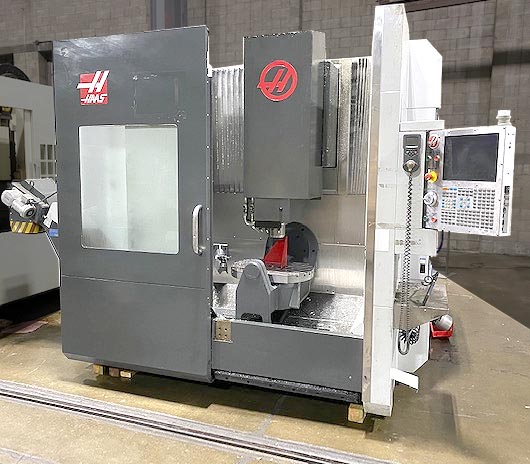

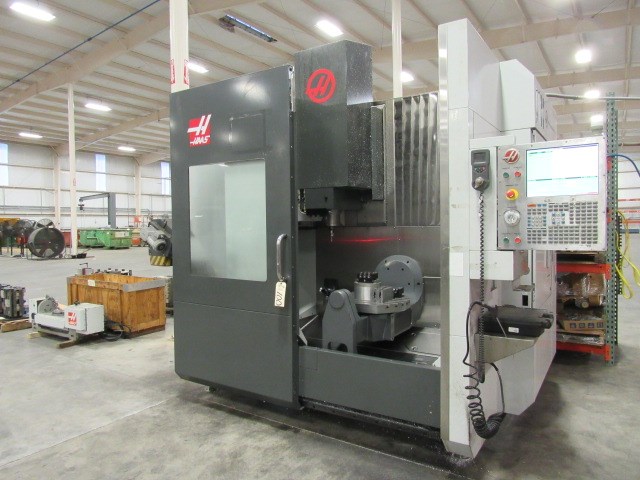

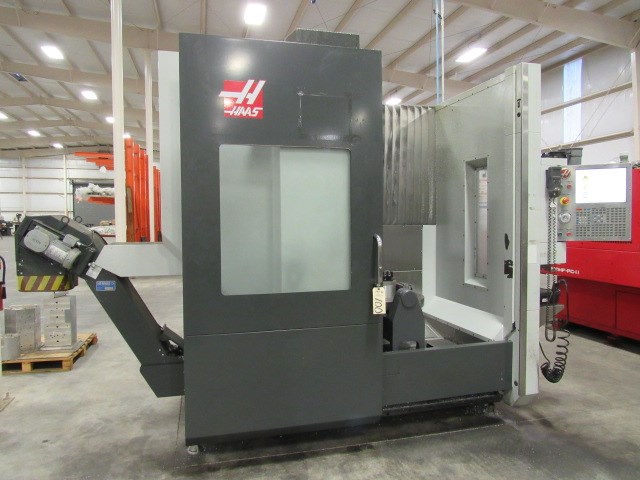

                                   HAAS UMC750 Full 5-Axis CNC Universal Vertical Machining Center

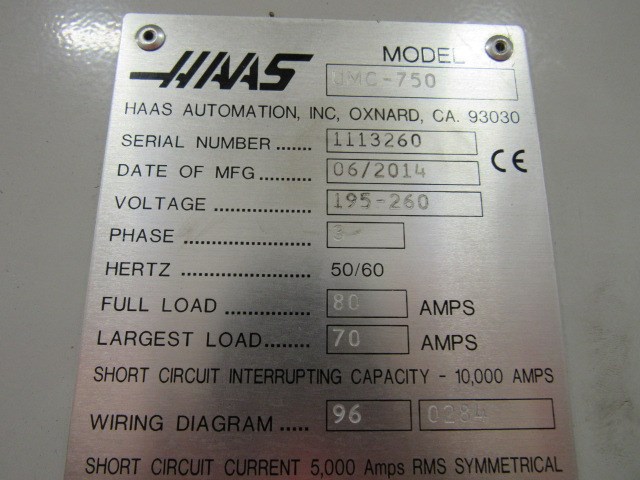

                                                       Model UMC750, S/N 1113260, New 6/2014
                                                                            Stock # K15819


EQUIPPED WITH:

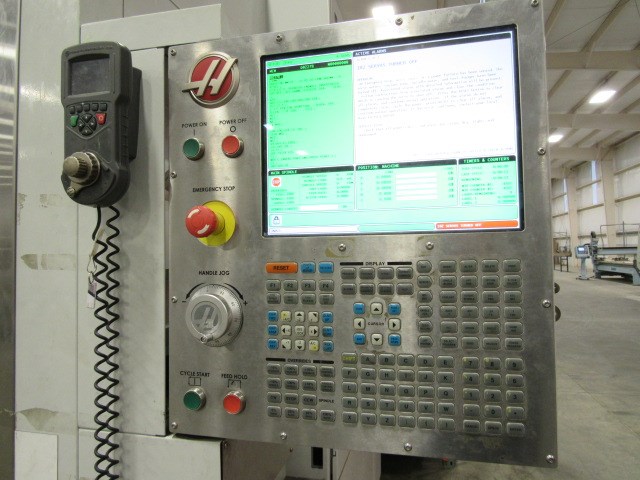

Haas 5-Axis CNC Control, Full 5-Axis Contouring 19.7" Trunnion
Mounted Rotary Table, Remote Handwheel, RS-232 Port, Ethernet Port,
750 MB Memory, Haas Intuitive Probing, 8,100 RPM Spindle, Rigid
Tapping, Rotation and Scaling, Advanced Tool Management, Power Default
Detection, Remote Jog Handwheel, Lifting Kit, Helical-Cut, 40 Station
Tool Changer, Cat-40 Spindle Taper, Programmable Coolant Nozzle,
Chip Conveyor and Coolant System.

CATALOG SPECIFICATIONS:
Table Working Surface (Round): ................ 19.7" Dia.
Max Table Load: ......................................... 660 LBS
X-Axis Travel: ............................................. 30"
Y-Axis Travel: .............................................. 20"
Z-Axis Travel: .............................................. 20"
A-Axis Trunnion Tilt Range: ........................ +120 to -35 Degrees
C-Axis Table Rotation Positioning: .............. 360,000 Degrees
Table Surface To Spindle Nose: .................. 4"-24"
Rapid Traverse X/Y/Z: ................................. 1200 IPM
Spindle Taper: .............................................. CAT-40
Spindle Speeds:............................................ 50-8,100 RPM
Spindle Motor: .............................................. 30 H.P.
Tool Magazine Capacity: .............................. 40
Electrics: ....................................................... 230/3/60
Approximate Dimensions: ............................. 96" x 160" x 110"H
Approximate Weight: ..................................... 20,000 LBS

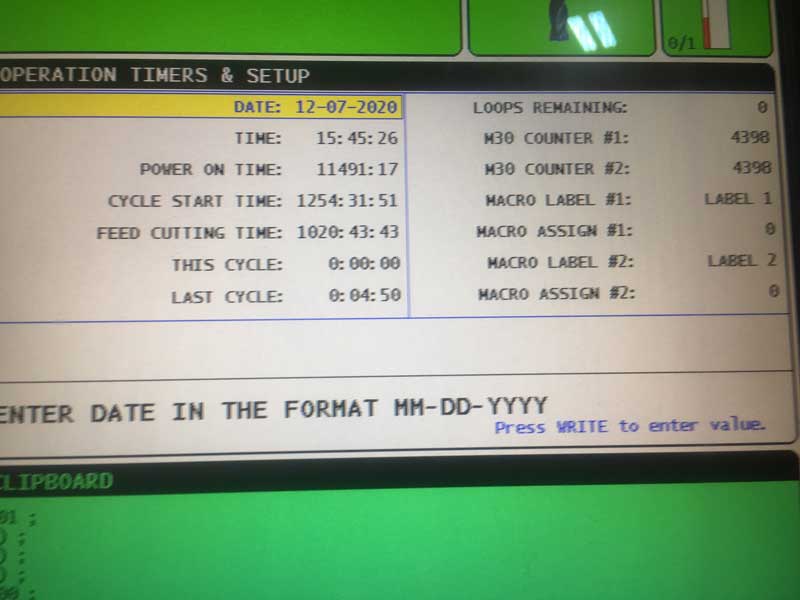

CONDITION: Only 1020 Cutting Hours. From an Aerospace Facility.
                      Cut Only Aluminum.
                      Machine Appears to be in Excellent Condition!
