Mighty Viper VMC-1270 CNC Vertical Machining Center

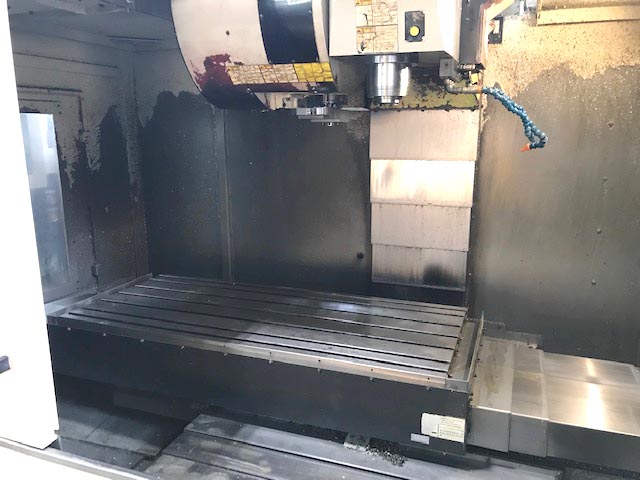

ACTUAL PHOTOS

Video Link

                                              MIGHTY VIPER CNC VERTICAL MACHINING CENTER
                                                      Model VMC-1270AG, New 2004, S/N 005616
                                                                              Stock# K15823


EQUIPPED WITH:

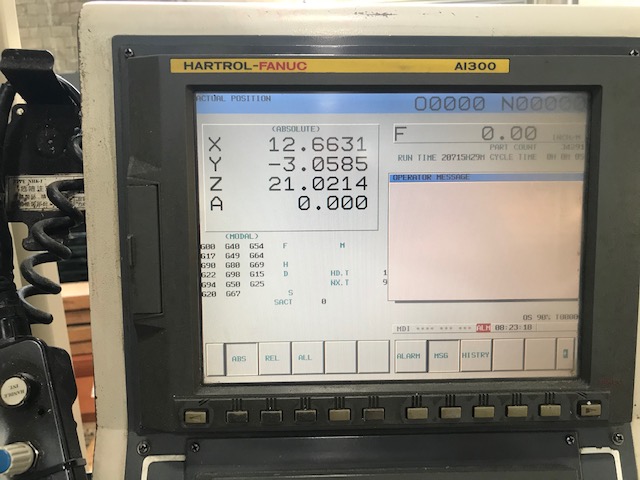

Fanuc 18i CNC (Hartrol AI300) CNC Control, Multiple Program Storage,
RS-232 Port, AI Programming and Setup Functions, Remote Jog Pendent,
Rigid Tap, Thru-Spindle Coolant, 99 Tool Offsets, Work Offsets,
21 Station Side Mount Tool Changer, Chip Conveyor and Coolant System.


CATALOG SPECIFICATIONS:

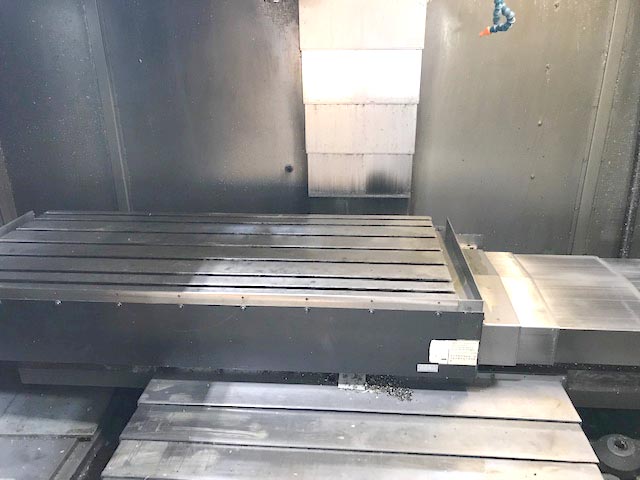

Table Working Surface...................................... 54" x 23"
Longitudinal Travel (X-Axis).............................. 50"
Cross Travel (Y-Axis)......................................... 25"
Vertical Travel (Z-Axis)....................................... 25"
Table Load Capacity.......................................... 3000 LBS
Rapid Feed Rate X&Y Axis............................... 1100 IPM
Rapid Feed Rate Z Axis.................................... 800 IPM
Tool Storage Capacity........................................ 24
Spindle Horsepower.......................................... 15 HP
Spindle Speeds Range...................................... 60-8,000 RPM
Spindle Taper....................................................... #40 CAT (V-Flg)
Approximate Machine Dimensions.................... 96" x 170"
Approximate Machine Height............................. 100"
Approximate Machine Weight............................ 16,000 LBS


CONDITION: From a Small Job Shop. Well Maintained. Runs Great.
