Nakamura STS-40 9-Axis CNC Mill / Turn Machine
Stock # K15968
|
|
ACTUAL PHOTOS

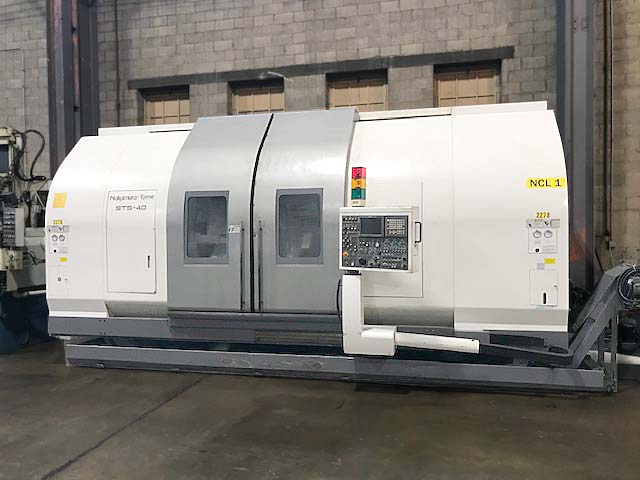

NAKAMURA STS-40 9-AXIS CNC TURNING/MILL CENTER
Model STS-40, S/N V400301, New 2008
Stock # K15968
EQUIPPED WITH:

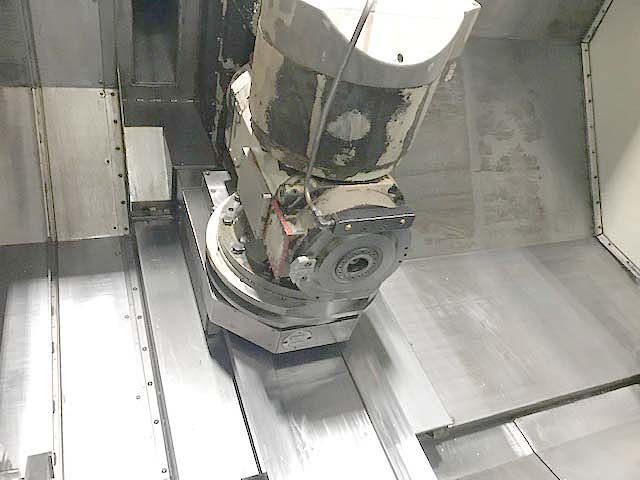

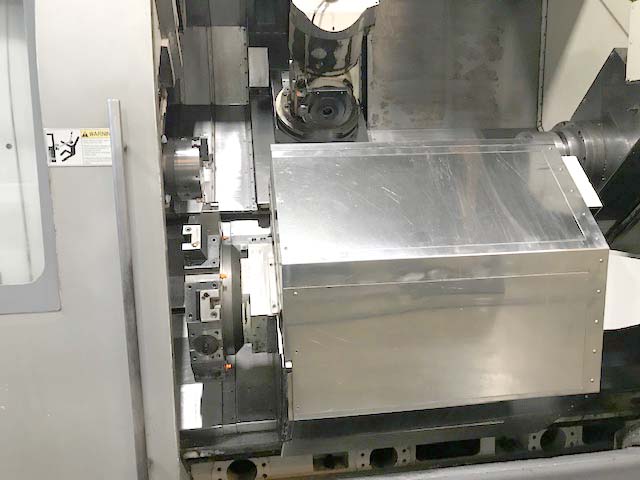

Fanuc 18iTB CNC Control, Upper Universal Head with Milling and Turning

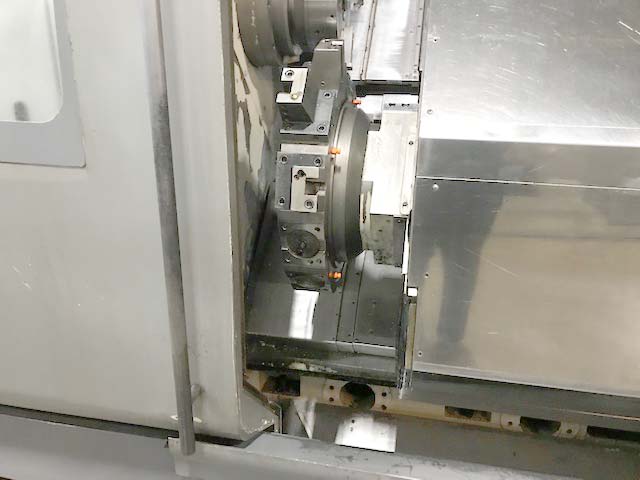

Capacity, 40 Station Automatic Tool Changer, Lower 12 Position Turret
with Live Tooling, Y-Axis on Upper Universal Head, Full Contouring

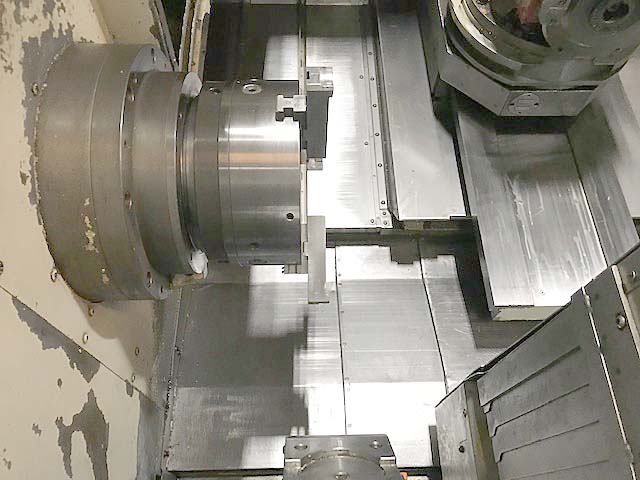

B-Axis Head Swivel, Main Spindle and Sub-Spindle Both Have C-Axis,
Probe Ready, Chip Conveyor and Coolant System.
CATALOG SPECIFICATIONS:
Max Swing Over Slant Bed ........................................... 24"
Max Turning Capacity..................................................... 22.44"
Max Turning Capacity Over Cross Slide........................ 18.5"
Max Distance Between Spindles.................................... 74"
Max Turning Length........................................................ 60"
Cross Travel (X-Axis) Upper Head....................... 24"
Lower Turret...................... 10.82"
Longitudinal Travel (Z-Axis) Upper Head........................ 63"
Lower Turret....................... 63"
Y-Axis Travel Upper Universal Head (+3.94 -3.55)......... 7.49"
B-Axis Universal Head Swivel (+100 to -100)................. 200 Degree
W-Axis Sub-Spindle Slide............................................... 63.2"
C-Axis on Both Spindles................................................. .001 Degree
Tool Positions On Lower Turret....................................... 12
Spindle Bore ................................................................... 2.8"
Spindle Nose................................................................... A1-8
Spindle Speed Range..................................................... 20-3500 RPM
Spindle Horsepower........................................................ 30 HP
Sub-Spindle Speed Range............................................. 20-3500 RPM
Sub-Spindle Horsepower................................................ 30 HP
B-Axis Milling Head Speed Range.................................. 50-6000 RPM
B-Axis Milling Head Horsepower..................................... 19.5 HP
Live Tooling Speed Range.............................................. 90-6000 RPM
Live Tooling Horsepower.................................................. 7.5 HP
Universal Head Spindle Taper.......................................... KM63
Approximate Machine Dimensions................................... 266" x 137"
Approximate Machine Height........................................... 126"
Approximate Machine Weight.......................................... 52,600 LBS
CONDITION: Machine Appears to be in Very Good Condition !
|
 |
|
