Doosan Puma 700LM CNC Turning Center with Live Tooling
Stock # K15998
|
ACTUAL PHOTOS
DOOSAN PUMA 700LM CNC TURNING CENTER With LIVE TOOLING

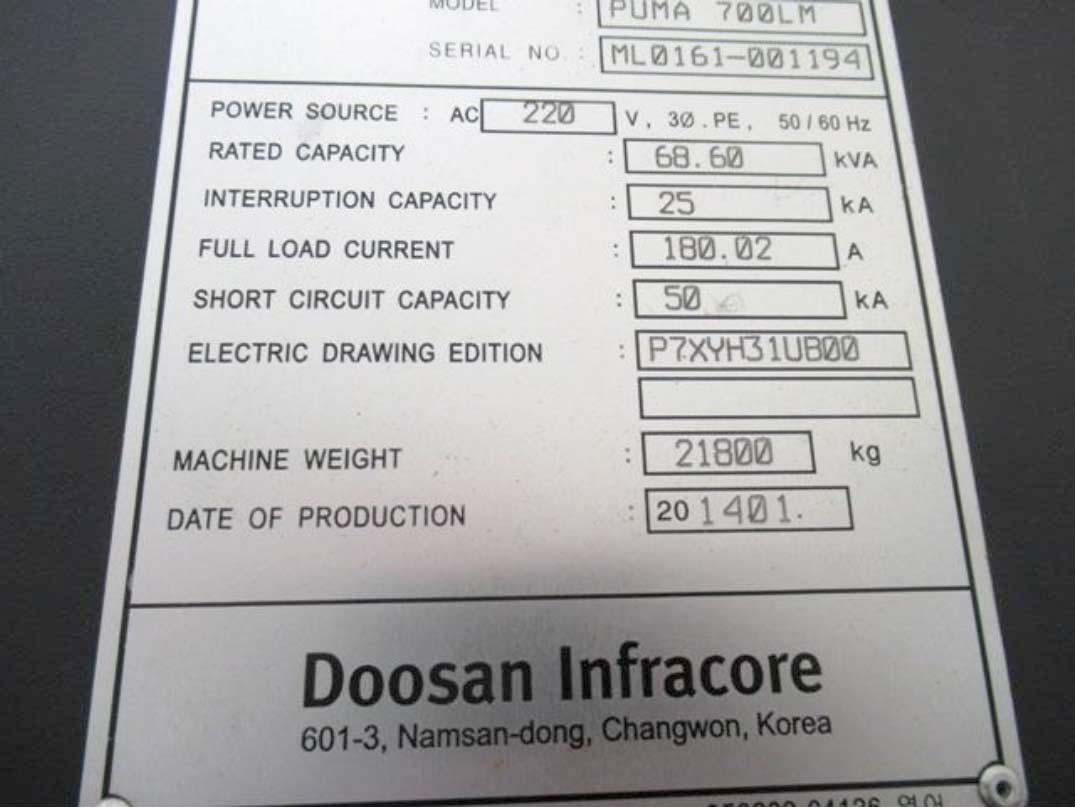

Model Puma 700LM, New 2014
Stock # K15998
EQUIPPED WITH:

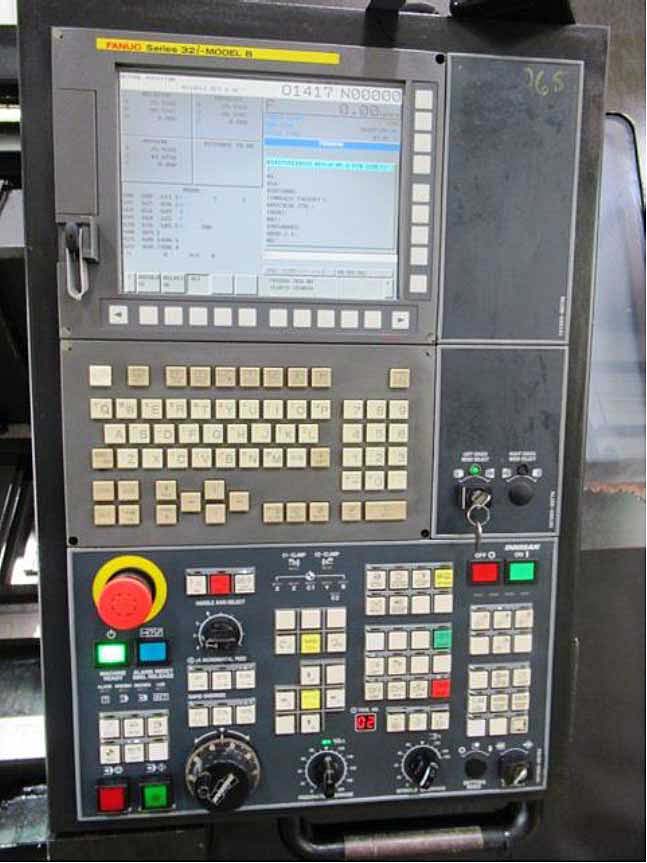

Fanuc 32i-Model B CNC Control, Manual 24" 4-Jaw Chuck,

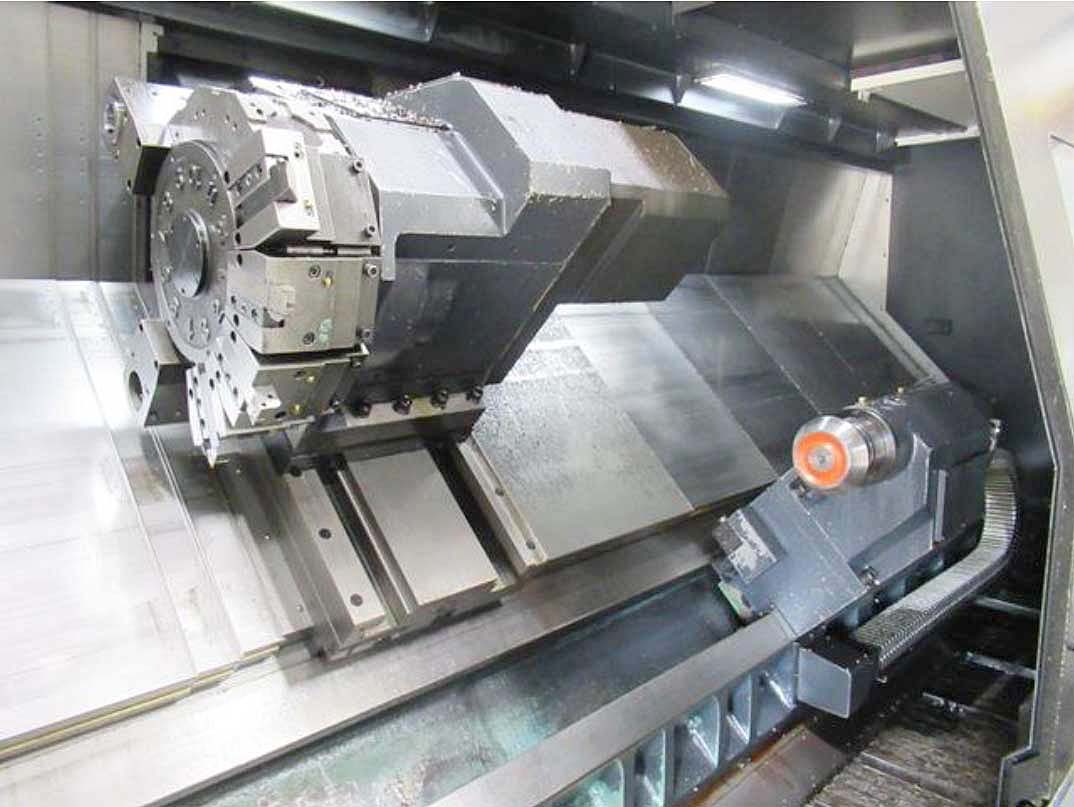

Full Contouring C-Axis, Live Tooling, Programmable Tail Stock
with 120" Centers, 12 Position Tool Turret, Includes
(3) Live Tool Holders, Chip Conveyor and Coolant System.
CATALOG SPECIFICATIONS:
Max. Swing over the Bed.................................... 40.58"
Max. Turning Diameter........................................ 35.4"
X-Axis Travel....................................................... 24"
Z-Axis Travel....................................................... 120"
Rapid Traverse (X/Z).......................................... 472/393 IPM
Hole Thru The Spindle........................................ 7.2"
Bar Capacity....................................................... 6.5"
Max. Distance Between Centers........................ 122"
Spindle Nose/Bore.............................................. A1-15"
Spindle Speeds................................................... 20 to 1,500 RPM
Spindle Motor...................................................... 60/50 HP
Rotary Tool Speed.............................................. 100 to 3,000 RPM
Rotary Tool Motor............................................... 15 HP
Tailstock/Quill Diameter...................................... 6.3"/MT #5
Tailstock Quill Travel........................................... 5.9"
Approximate Machine Dimensions..................... 336" x 109"
Approximate Machine Height............................. 102"
Approximate Machine Weight............................ 48,500 LBS
CONDITION: Machine appears to be in Excellent Condition.
Only 10,103 Hours
|
|
|
