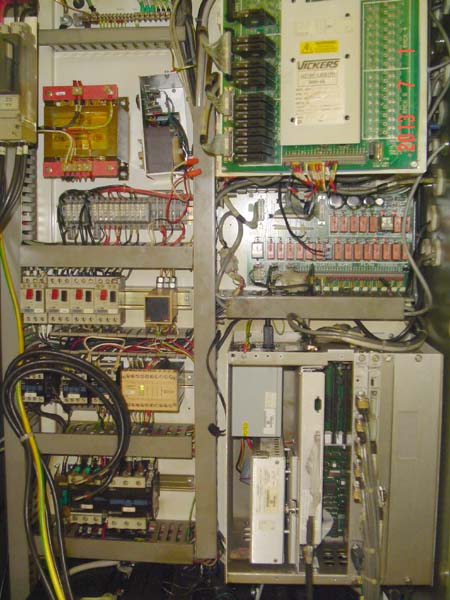

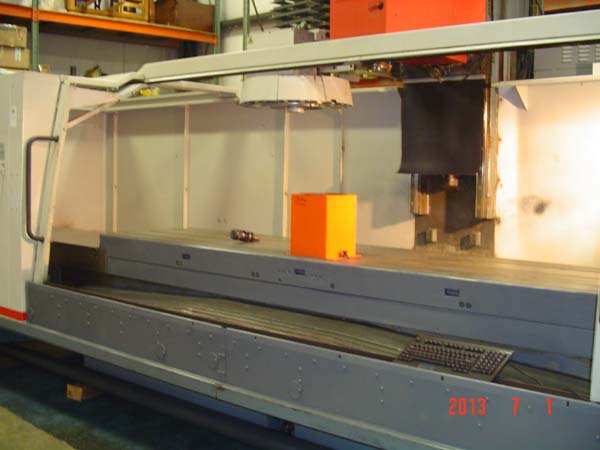

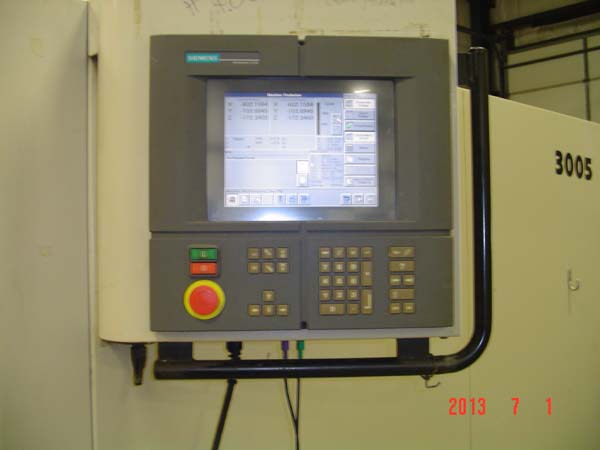

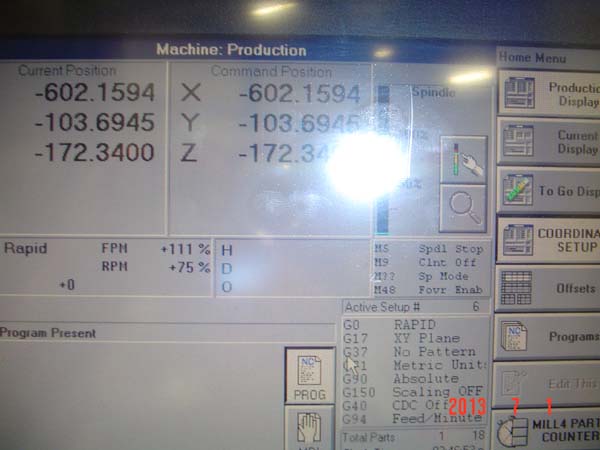

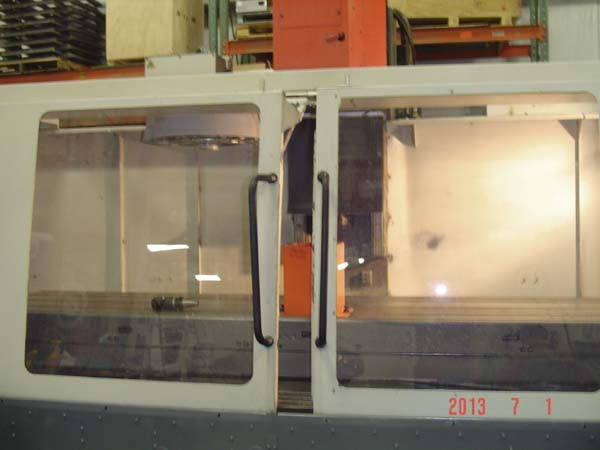

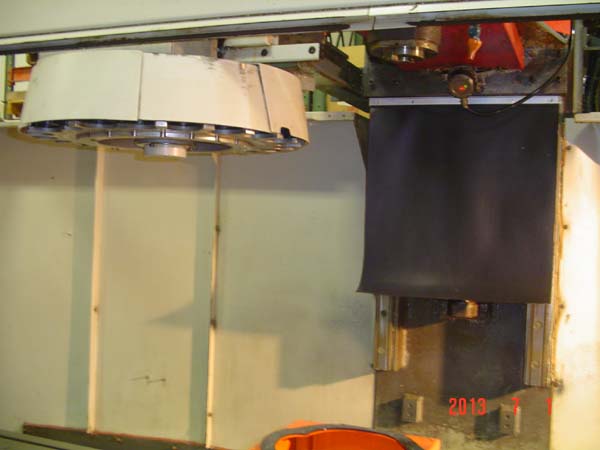

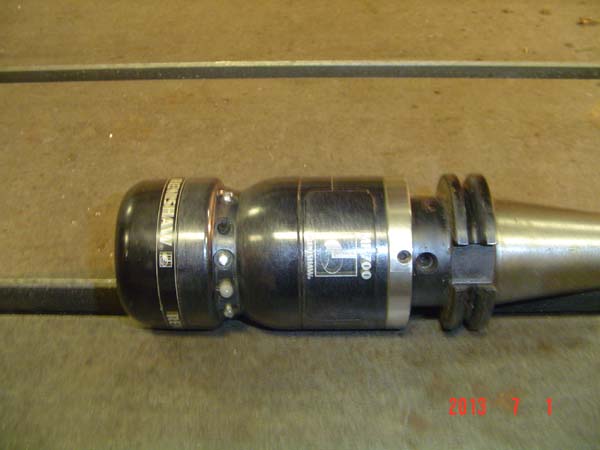

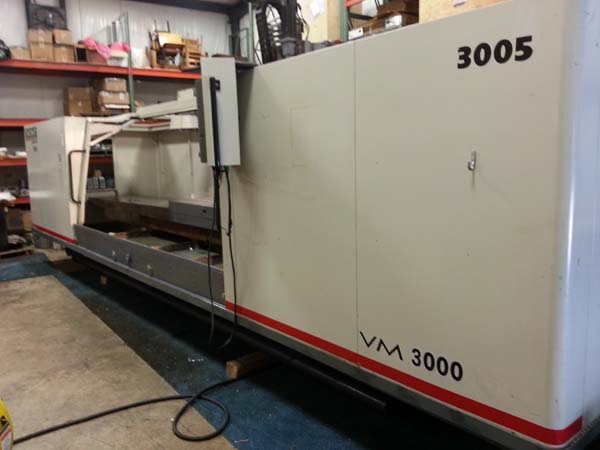

CINCINNATI ARROW 3000 CNC Vertical Machining Center

Stock Number K14031

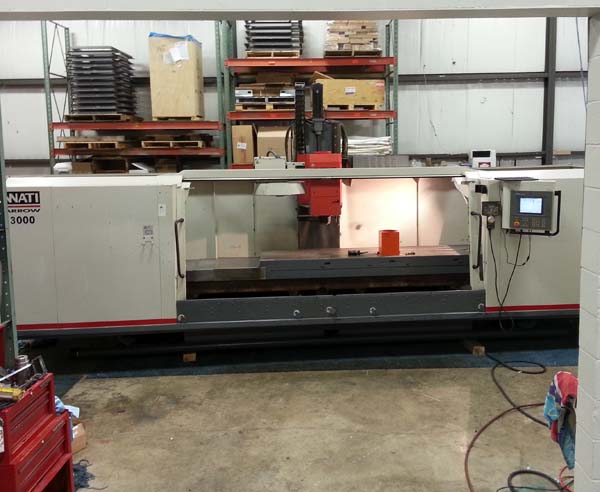

Cincinnati Arrow 3000 120" CNC vertical Machining Center CNC Mill for sale

ACTUAL PHOTOS

MUBEA KL750 82 TON SINGLE STATION PUNCH
Model KL750, S/N 0505981727324, New
Stock# K13718

EQUIPPED WITH:

Large quantity of Punches, Large and Small Punch Holders.

CATALOGUE SPECIFICATIONS:

Tonnage Capacity, Bottom Stroke...................... 82 Tons
Power Stroke Length.................................. 1-1/8"
Maximum Strokes per Minute........................... 45
Throat Depth......................................... 15-3/4"
Thickness Capacity, Maximum.......................... 13/16"
Hole Capacity Thru 13/16" Material................... 1-1/4"
Hole Capacity Thru 1/2" Material..................... 2"
Drive Motor.......................................... 3 HP
Electrical System.................................... /3/60
Overall Dimensions, L x W............................ 50" x 31"
Overall Height....................................... 74"
Weight, Approximately................................ 3600 Lbs.

NOTE: Machine is in Very Good Condition. From the Re-work Department
of a Large Sheet Metal Fabricators Shop.

PRICE: F.O.B. Cincinnati, Ohio...................... $ 2,950.

OKUMA Multus B300W CNC Turning Center with Universal Head and Sub-Spindle
New 2008

Equipped With:
OKUMA OSP P200 CNC Contol with THiNC ADMAC Parts software
Big Bore Option A2-8 nose (38-3800 RPM, 30/20HP) , 8" Kitagawa Chuck Package, 40 Station Automatic Tool Changer
CAPTO C6 Spindle Taper, Parts Catcher, Parts Catcher for the subspindle,
Mist Collection System, Side Exit Chip Conveyor, Chip Blaster JV10 1000 psi Pump System - multi-port
version w/ programmable pressures, Thru H1 Spindle Coolant Preparation for 1,000 psi,  Multi-tap transformer for 480 volt incoming line power

Specifications:
Distance between Spindle Noses:                                 50.8"
Distance between Std. Chucks with Std. Jaws:          39.6"
Swing over Bed:                                                      24.8"
Max Recommended Turning Diameter:                       23.8"
Max Recommended Turning Length:                            39.6"
X-Axis Travel:                                                  22.83" (+22.04" to -0.79")
Y-Axis Travel:                                                   6.30" (+3.15" to -3.15")
Z-Axis Travel:                                                              36.81"
W-Axis Travel (sub-spindle):                                    39.37"
C-Axis Travel:                                      Control angle 0.001 degrees, both spindles
B-Axis Travel:                                Control angle 0.001 degrees, 225 total, +30 to -195 degrees
Rapid Travel IPM:          X (1,574); Y (1,024); Z (1,574); W (787); C (200 RPM); B (200 RPM)
Coolant Tank:                                  105 gallons
Floor Space                            (W x D x H): 171" x 89" x 102" (not including chip conveyor)
Weight:                                        22,660 lbs. (w/ 40 ATC)

Condition : The machine has only cut plastic and has approximately 6,400 hours of cut time on it
Appears to be in Excellent Condition !

       OKUMA CAPTAIN L470/1250
                        CNC TURNING CENTER WITH 15" CHUCK
                                    NEW: 2007

Serial Number: 130095
SWING OVER BED......................... 24.4"
SWING OVER SADDLE...................... 18.9"
MAXIMUM TURNING DIAMETER............... 16.5"
MAXIMUM WORK LENGTH.................... 49.2"
X-AXIS TRAVEL.......................... 11.8"
Z-AXIS TRAVEL.......................... 50.2"
SPINDLE NOSE........................... A2-11
SPINDLE BORE / DRAW TUBE ID............ 4.33" / 3.62"
SPINDLE SPEED RANGE.................... 28 TO 3,000 RPM
SPINDLE MOTOR.......................... 30 HP
TURRET TYPE............................ V12
RAPID TRAVERSE RATE (X/Z AXIS)......... 787/984 IPM
FLOOR SPACE.................. 157" X 75" X 83" TALL
APPROXIMATE MACHINE WEIGHT... 16,500 LBS

EQUIPPED WITH:
* OKUMA OSP-P200L CNC CONTROL
* 15" KITAGAWA 3-JAW HYDRAULIC CHUCK
* CHIP CONVEYOR
* ONE TOUCH IGF-XL CONVERSATIONAL PROGRAMMING
* TOOL SETTER
* HYDRAULIC TAILSTOCK WITH 5MT QUILL

*** ONLY 2,665 CUTTING HOURS ***

                         OKUMA ES-L8 CNC TURNING CENTER
                            Model ES-L8, New 2000, S/NC1706
                                              Stock# K14028

EQUIPPED WITH:
OSP U10L CNC Control, 8" 3-Jaw Hydraulic Chuck, 8 Position ID/OD Tool
Turret, Expanded Auto Chamfer, Thread Feed Hold, Animation, Programmable
Tailstock, Lap-4, Nose R 2B, User Task 2, NC Torque Limit, Servo Link NC
Servo Link Spindle, Hi-G Control, Inch/Metric Switch, Cycle Time
Calculator, Cycle Time Reducer, PLC, Heavy Duty Slant Bed Construction,
Chip Conveyor and Coolant System.

CATALOGUE SPECIFICATIONS:

Max Swing Over Slant Bed.................................. 17.7"
Max Swing Over Carriage................................... 10.63"
Max Distance Between Centers.............................. 19.68"
Cross Travel (X-Axis)..................................... 6.10"
Longitudinal Travel (Z-Axis).............................. 20.47"
Feed Range (Infinitely Variable) ......................... .1 to 200 IPM
Rapid Traverse Rate ...................................... 591 IPM
Number of Turrets......................................... 1
Turret Positions.......................................... 8
Spindle Bore.............................................. 2.44"
Bar Capacity.............................................. 2"
Spindle Speed Range....................................... 100-4200 RPM
Spindle Drive Motor....................................... 10 HP
Electrics................................................. 220/3/60
Approximate Machine Dimension............................. 107" x 70"
Approximate Machine Height................................ 75"
Approximate Machine Weight................................ 6000 LBS

CONDITION: Appears to be in Excellent Condition !

       CINCINNATI MILACRON 'AVENGER' CNC TURNING CENTER
                  Model 200T, New 1994, S/N 3650A0T94-0224
                                                Stock# K13910

EQUIPPED WITH:

Acramatic 850SX CNC Control with Color CRT, Multiple Part Program
Storage, Data Line RS-232 Port, Tailstock Option w/Programmable Body and
Quill, Manual Programming, Extended Storage, Extended Tool Data, MTB
Panel, Cycle Time Monitor, Enhanced Maintenance, Extended Threading, 8"
3-Jaw Buck Maxamoto Power Chuck, Tool Setting Probe, Auto Lube, Chip
Conveyor and Coolant System, Includes 4 Bolt-on Stick Tool Holders.

CATALOGUE SPECIFICATIONS:

Max Swing Over Bed...................................... 23.54"
Max Swing Over Carriage................................. 10.55"
Max Tailstock Position.................................. 23.5"
Max Machinable Center Distance.......................... 20.87"
Standard Chuck Size..................................... 8.27"
Cross Travel (X-Axis)................................... 7.09"
Longitudinal Travel (Z-Axis)............................ 20.87"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 787 IPM
Rapid Traverse Rate (Y-Axis)............................ 944 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 3.15"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 30-5000 RPM
Spindle Horsepower...................................... 30 HP
Electrics............................................... 230/460/3/60
Approximate Machine Dimensions.......................... 104" x 68"
Approximate Machine Height.............................. 69"
Approximate Machine Weight.............................. 10,300 LBS

CONDITION: From a Aerospace Facility. Appears to be un Very Good
Condition.

5.1" TOSHIBA TABLE TYPE HORIZONTAL BORING MILL
MODEL BFT-13C, NEW 1979

EQUIPPED WITH:
POWER DRAW BAR
READOUTS - 3 AXIS
HARDENED AND GROUND BOX WAYS
FOUR WAY BED
TELESCOPING WAY COVERS
POWER DRAW BAR
59" X 59" POWERED ROTARY TABLE AVAILABLE FOR ADDITIONAL COST

SPINDLE DIAMETER........................................................ 5.13"
SPINDLE NOSE................................................................... # 50 TAPER
SPINDLE SPEEDS............................................................... 9 -1200 RPM (3 RANGES)
RAPID TRAVERSE.............................................................. 126 IPM
MAIN MOTOR...................................................................... 25 HP.
SPINDLE FEEDS (54)............................................................ 0.0001"- 1.71 " /REV.
SPINDLE TRAVEL............................................................... 35.4"
VERTICAL TRAVEL OF HEADSTOCK............................. 82.7""
CROSS TRAVEL OF TABLE............................................... .118"
LONGITUDINAL TRAVEL O F SADDLE.......................... 51.2"
TABLE WORKING SURFACE............................................ 58" X 118"
RAPID TRAVERSE...............................................................126 IPM
PERMISSIBLE WEIGHT OF WORK................................. 22,000 LB
