ACTUAL PHOTOS

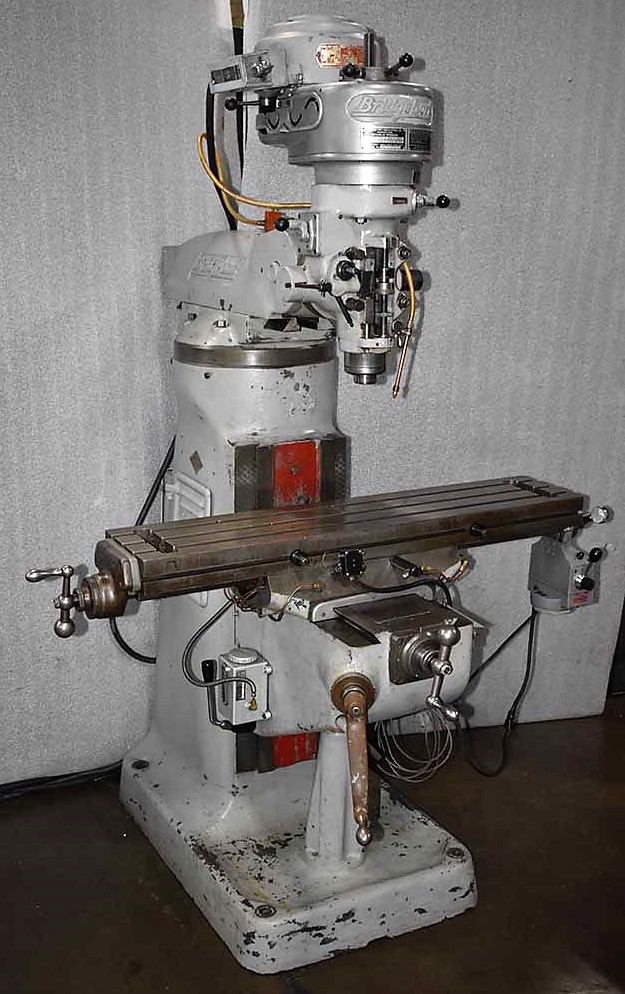

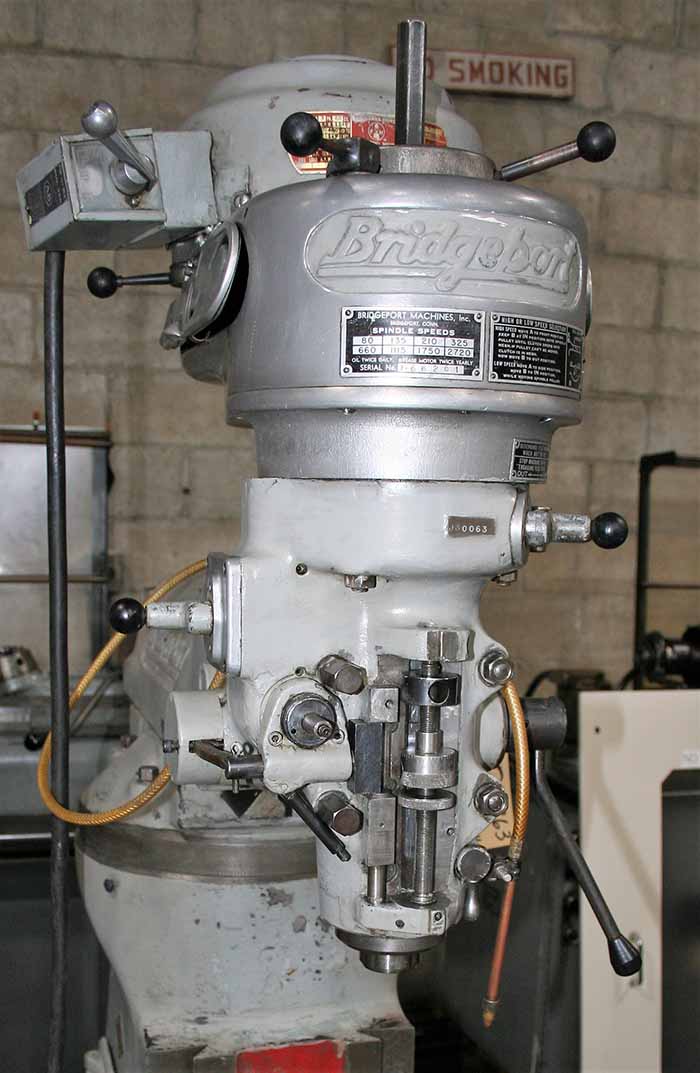

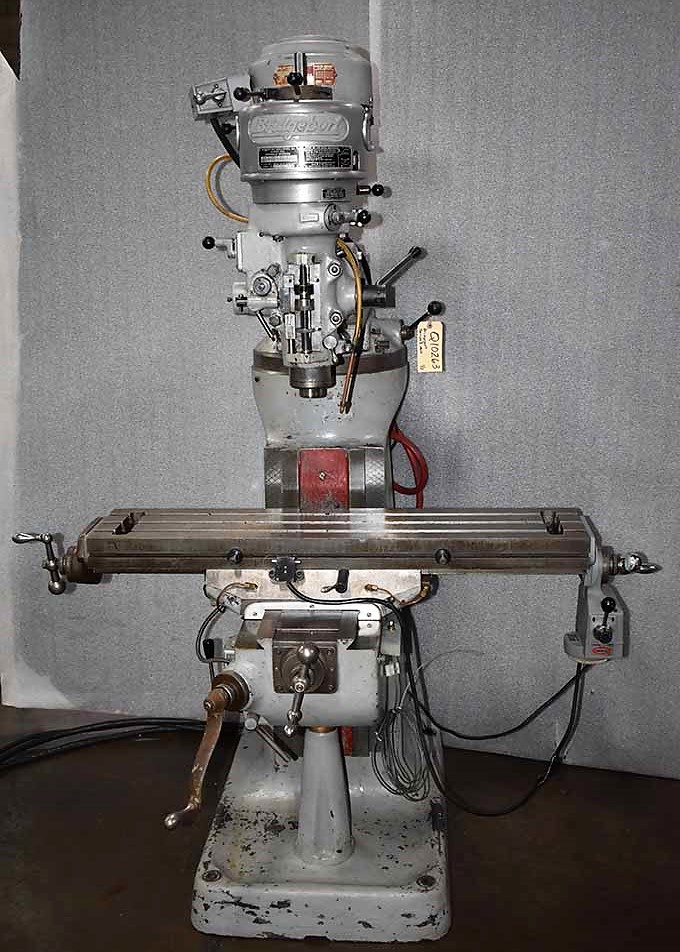

1 HP Bridgeport Series I Vertical Knee Mill
Model Series 1, S/N 244733, New 1960
Stock# Q10263
EQUIPPED WITH:

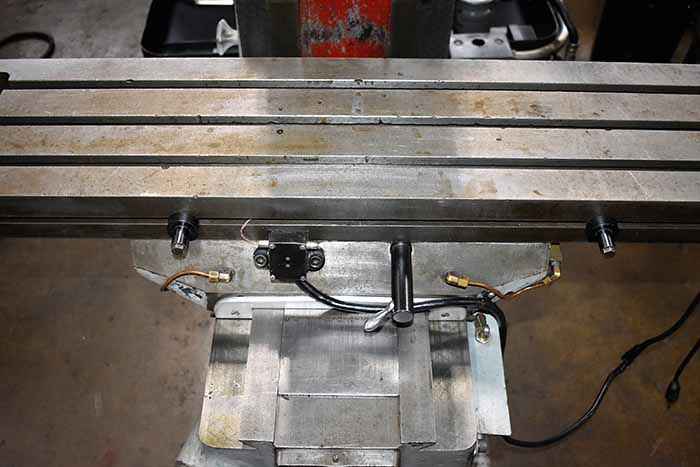

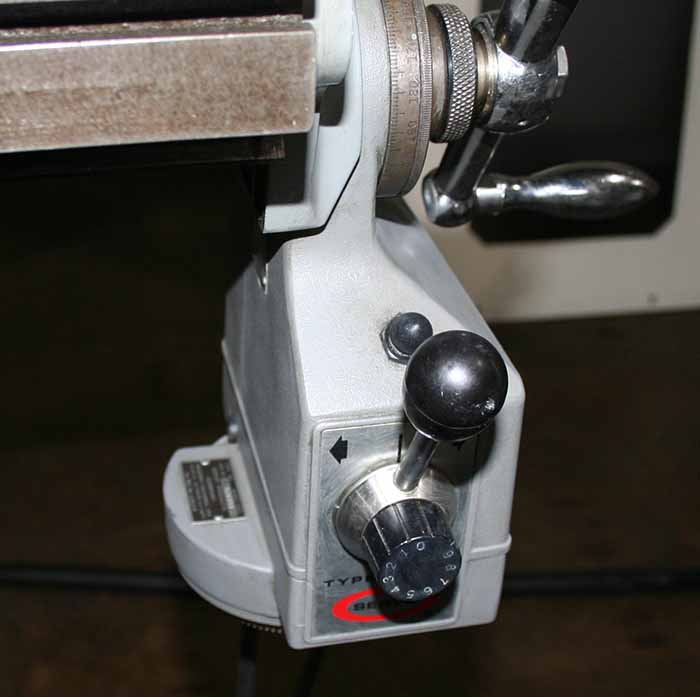

9" x 42" Table, X-Axis Servo Power Feed, Knee Lock, Swivel Type Overarm,
One Shot Bijur Lube System.
CATALOG SPECIFICATIONS:
Table Dimensions (Overall, W x L)................... 9" x 42"
Longitudinal Table Travel (X-Axis).................... 30"
Cross Saddle Travel (Y-Axis)............................ 9"
Vertical Knee Travel (Z-Axis)............................ 16"
Quill Travel........................................................ 5"
Spindle Taper.................................................... R-8
Spindle Speeds................................................. 80 - 2720 RPM
Motor (Spindle).................................................. 1 HP
Approximate Machine Dimensions.................... 60" x 66"
Approximate Machine Height............................ 78"
Approximate Machine Weight............................ 2,200 LBS
CONDITION: Appears to be in Excellent Condition!
