42" Bullard MAN-AU-TROL
CNC Vertical Turret Lathe

Stock Number Q10272

ACTUAL PHOTOS

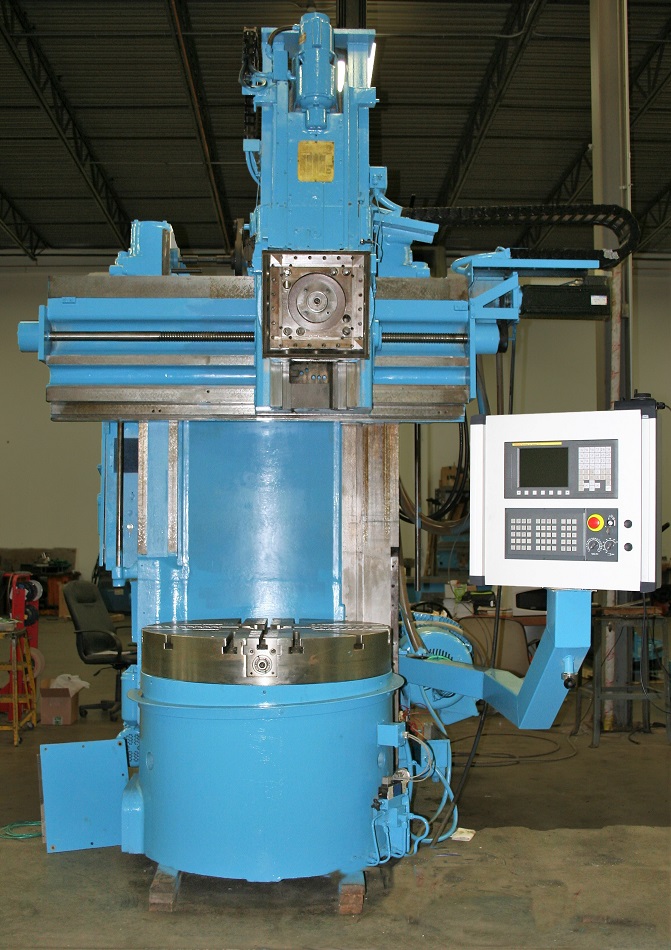

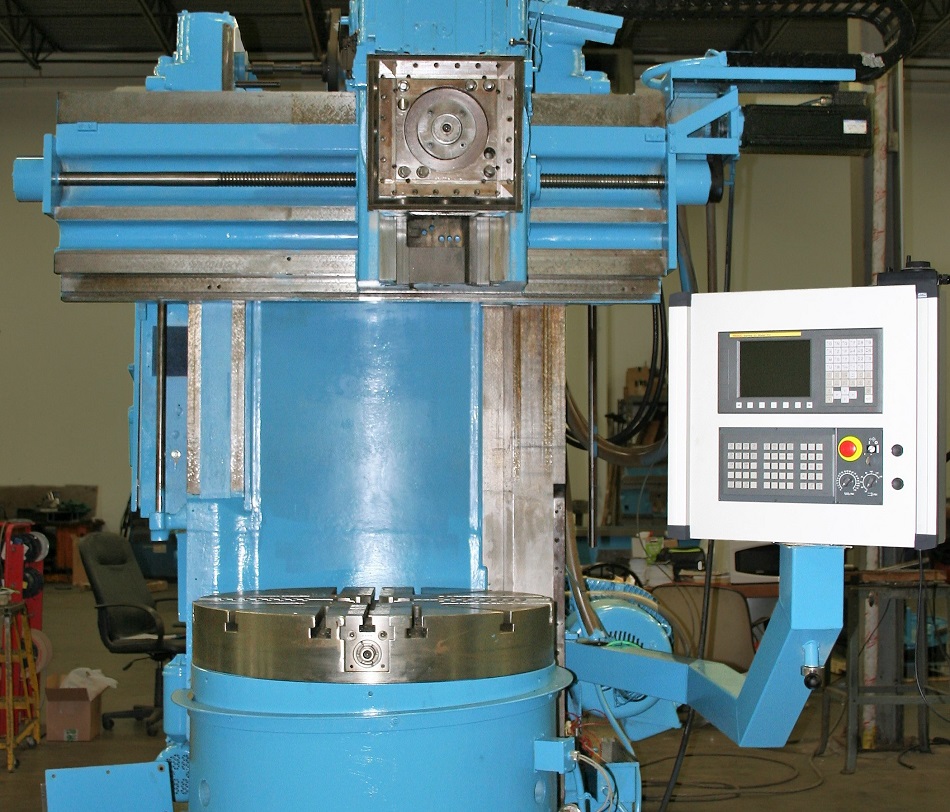

                    42" BULLARD MAN-AU-TROL CNC VERTICAL TURRET LATHE
                                   Model MAN-AU-TROL, S/N 26035, Retrofit 2018
                                                         Stock # Q10272


EQUIPPED WITH:

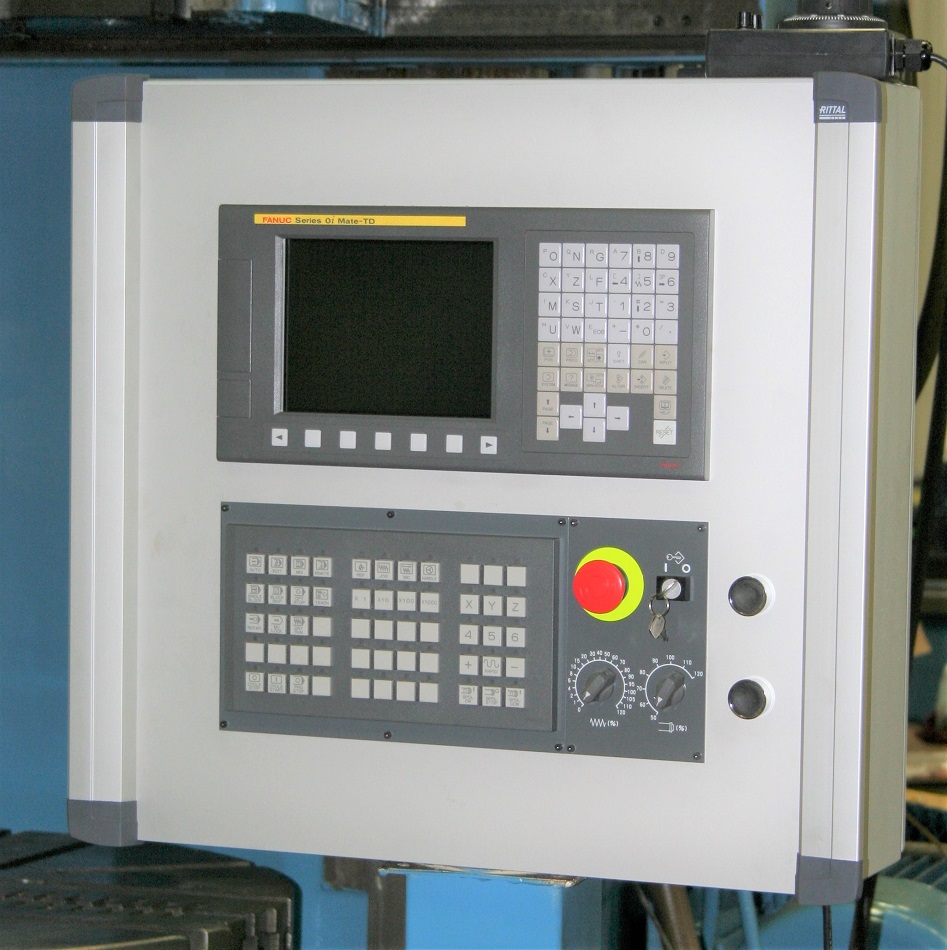

(New) Fanuc 0i-TD CNC Control, 42" 4-Jaw Independent Hydraulic Chuck,
4 Position Programmable Ram Head, Constant Surface Speed, Threading,

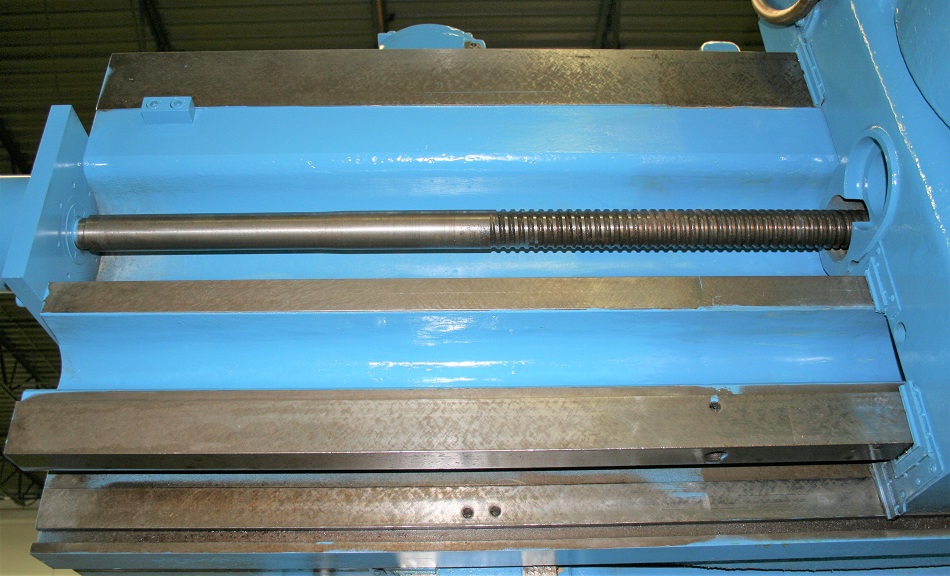

(New) Ball Screws, (New) Encoder Feedback, Hardened Ways, 40 HP

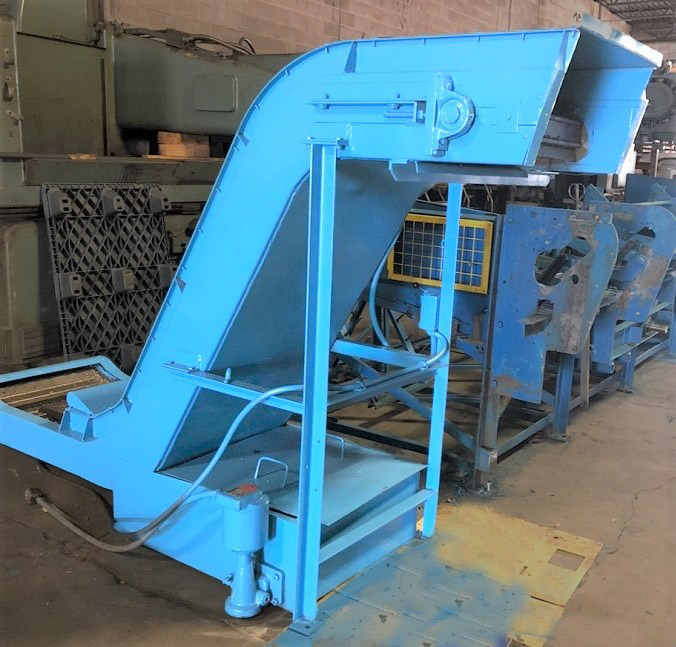

Reliance Spindle Motor, Chip Conveyor, Splash Guards, Hydraulic System
w/ (New) 5HP Baldor Pump.

* No Pit Required *

CATALOG SPECIFICATIONS:
Table Size Diameter....................................... 42"
Max Swing..................................................... 54"
Clearance Under Rail.................................... 36"
Vertical Travel Of Turret Z-Axis..................... 30"
Cross Travel of Turret Head X-Axis.............. 46"
Vertical Travel of Cross Rail.......................... 25"
Table Speeds (Infinitely Variable).................. 5 to 200 RPM
Axis Feed Rate.............................................. 0 to 200 in/min
Approximate Machine Dimensions .............. 128" x 107"
Approximate Machine Height........................ 135"
Approximate Machine Weight....................... 34,000 Lbs

CONDITION: This machine has been retrofitted in 2018 with a
                      Fanuc 0i-TD Control. Also rebuilt with New Ballscrews
                      and Encoder Feedback.

                      The Machine appears to be in Excellent Condition.
