Daewoo Puma 300C CNC Turning Center

Stock Number Q10276

ACTUAL PHOTOS

Video Link

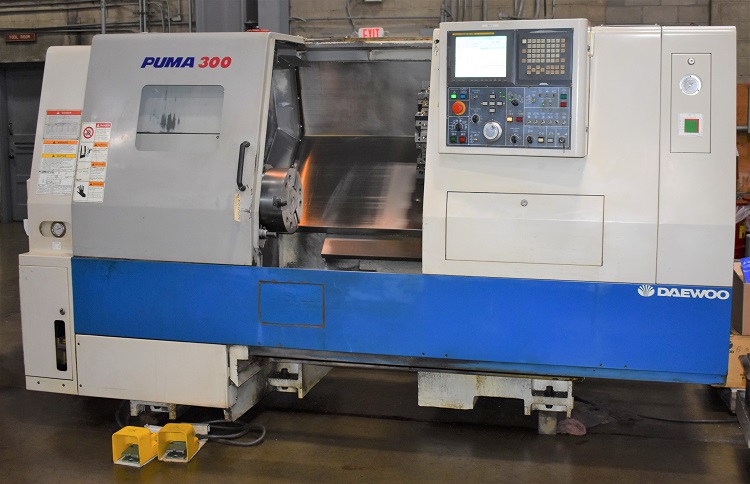

                                   DAEWOO PUMA 300C CNC TURNING CENTER

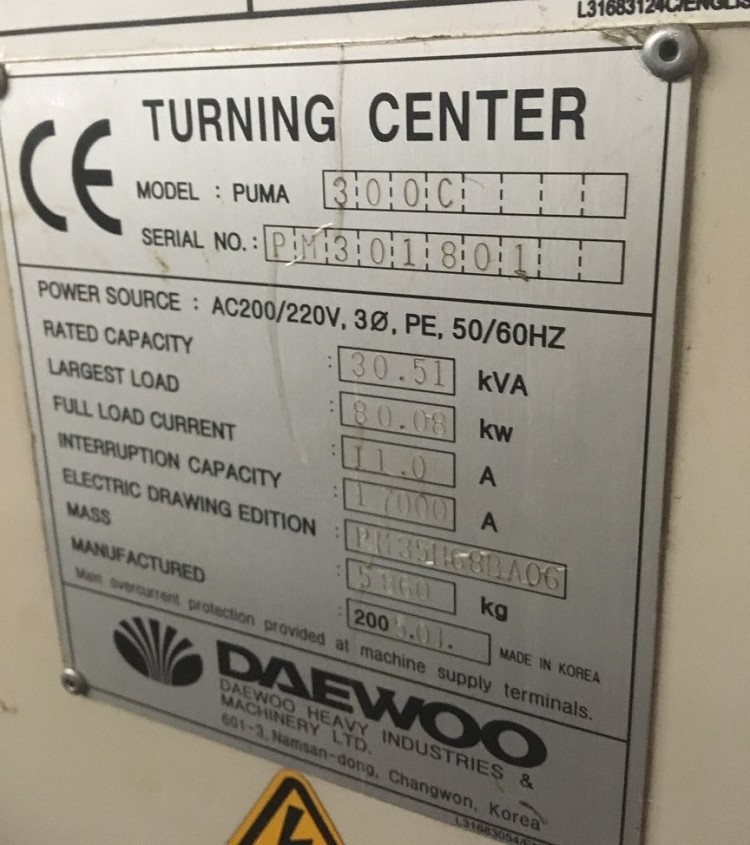

                                     Model Puma 300C, S/N PM301801, New 2005
                                                         Stock # Q10276


EQUIPPED WITH:
Fanuc 21i-TB CNC Control, Conversational Programming, RS-232 Port,

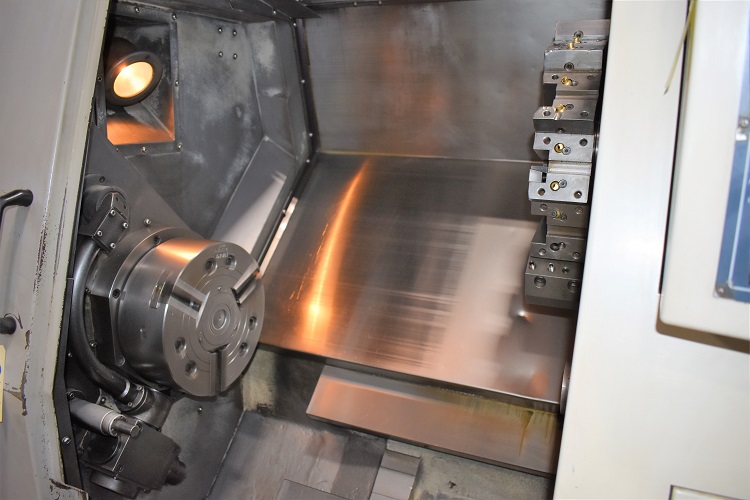

Ethernet Port, Background Edit,12" 3-Jaw Kitagawa Hydraulic Chuck,

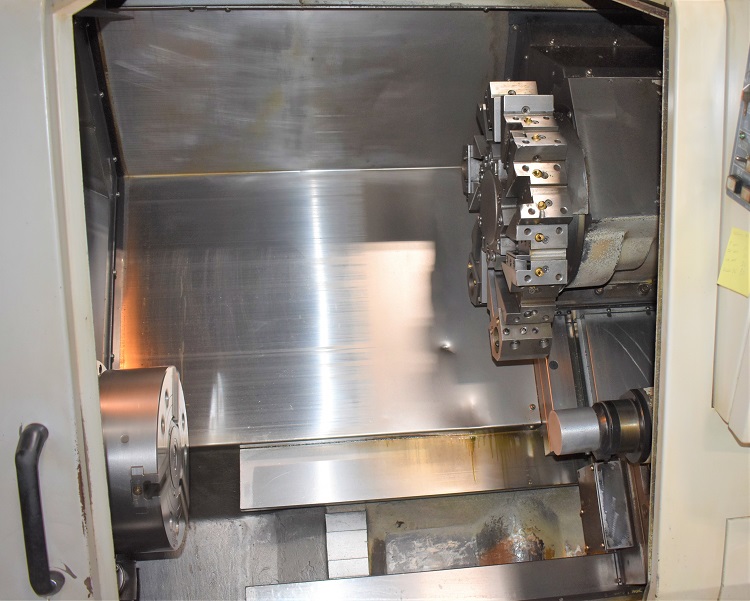

12 Position Turret, Hydraulic Tailstock with Programmable Quill,
2-Range Geared Spindle, Chip Conveyor, Coolant System.


CATALOG SPECIFICATIONS:
Max Swing Over Bed................................................. 23"
Max Swing Over Saddle............................................ 14.5"
Max Tail Stock Position.............................................. 27"
Maximum Turning Length.......................................... 26.8"
Chuck Size................................................................ 12"
Spindle Bore.............................................................. 4.53"
Bar Capacity.............................................................. 4"
Cross Travel (X-Axis)................................................ 11.1"
Longitudinal Travel (Z-Axis)....................................... 26.8"
Rapid Traverse Rate (X-Axis).................................... 800 IPM
Rapid Traverse Rate (Z-Axis).................................... 945 IPM
Tool Positions............................................................ 12
Spindle Nose............................................................. A2-8
Spindle Speed Range............................................... 10-2800 RPM
Spindle Drive Motor (30 minute)................................ 30 HP
Hydraulic Tailstock Taper........................................... #5 MT
Approximate Machine Dimensions............................ 135" x 72"
Approximate Machine Weight.................................... 16,000 LBS

CONDITION: Machine Appears to be in Great Condition
