8' x 19" Carlton 4A Radial Arm Drill
Stock # Q10279
|
ACTUAL PHOTOS
Video Link

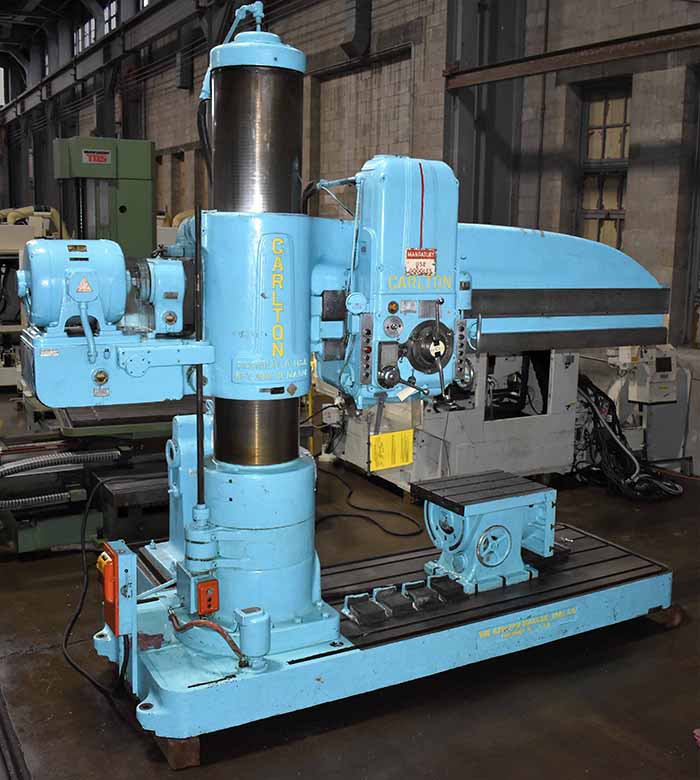

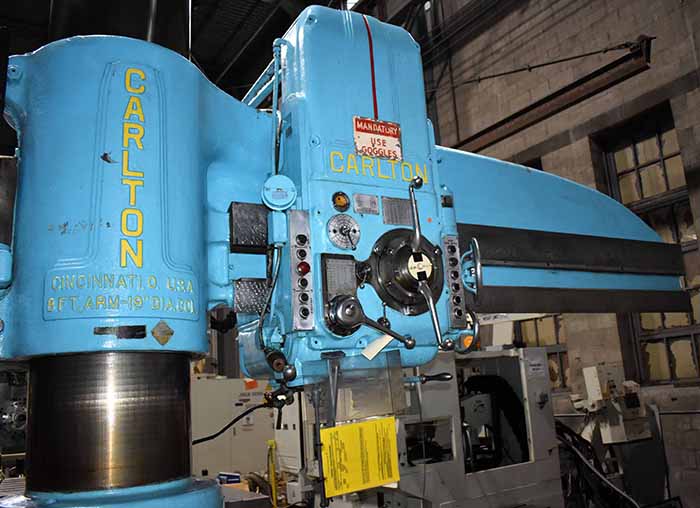

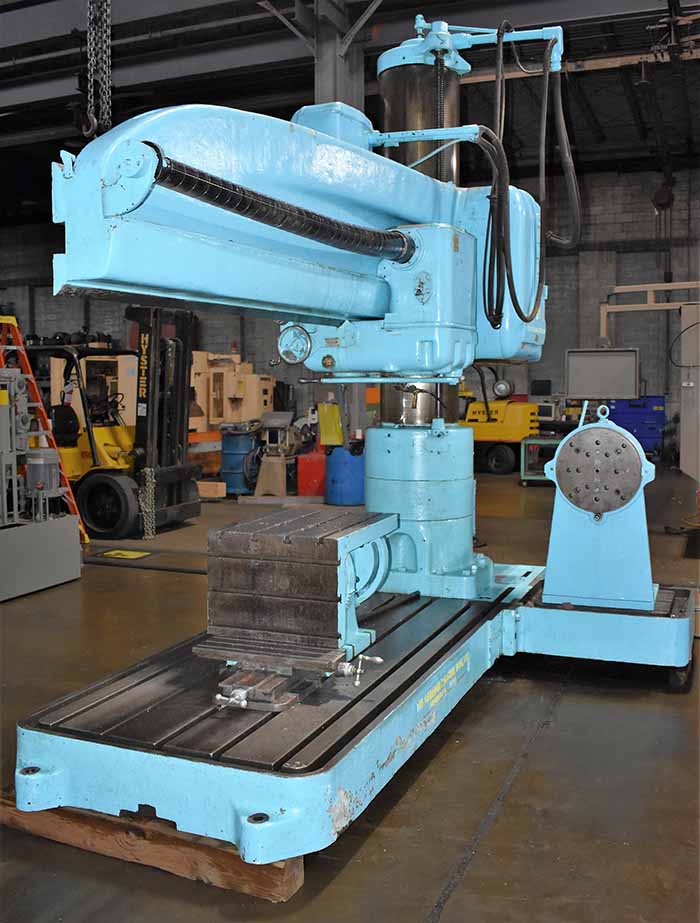

8' x 19" Carlton 4A Radial Arm Drill
Model 4A, S/N 4A-3497
Stock# Q10279
EQUIPPED WITH:

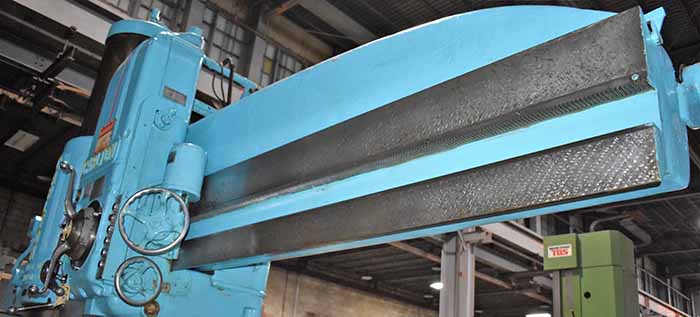

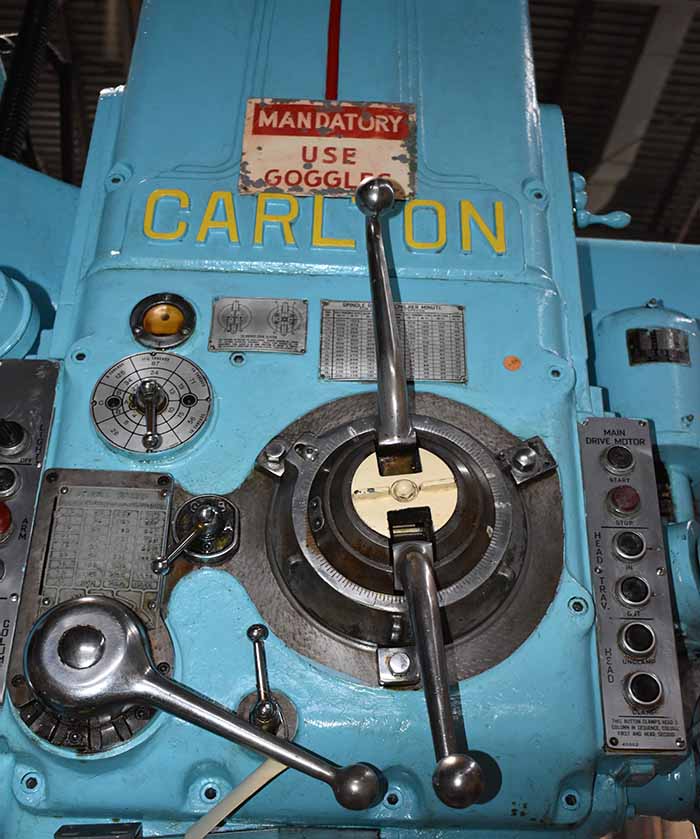

Power Clamping of Head and Arm, Power Elevation of Arm, Rapid Power Traverse of Head

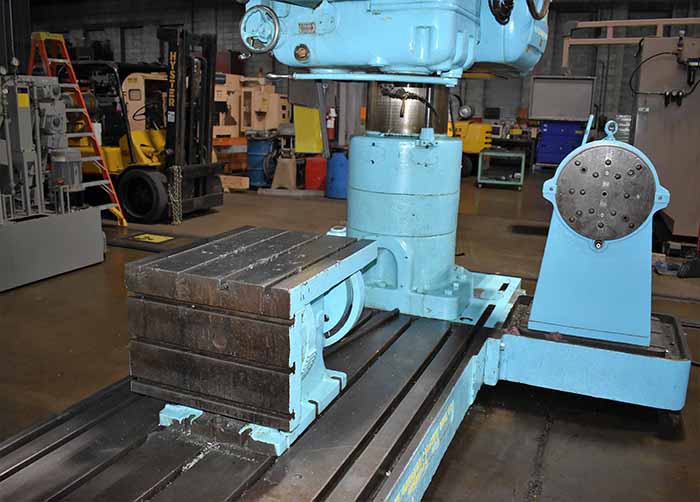

on Arm, 26" x 23" Optional L-Base Extension, 30" x 24" x 24" Universal Swivel Box Table,
"Add on" Trunnion Table (Rotating Horizontal Parts), Built-in Coolant System.
CATALOG SPECIFICATIONS:
Diameter of Column............................................. 19"
Arm Length........................................................... 96" (8')
Face of Column to Center of Spindle (Min).......... 13.25"
Max. Spindle Height to Base................................ 78" (6.5')
Min. Spindle Height to Base................................. 14.5"
Working Surface of Base (W x L)......................... 50" x 98"
L-Base Extension................................................. 23" x 26"
Height of Base..................................................... 10"
Vert. Travel of Spindle in Head............................. 20"
Spindle Dia. (Driving Dia.).................................... 4"
Spindle Speeds (36)............................................ 15 to 1500 RPM
Spindle Taper....................................................... #6 MT
Vert. Traverse of Arm on Column........................ 43"
Horiz. Traverse of Head on Arm.......................... 82"
Drills to Center of Circle...................................... 16'
Feeds and Tap Leads (18 Changes).................. .004- .250
Horizontal Side Head Motor................................ 15 HP
Machine Dimensions (LxWxH)............................ 182" x 70" x 147"
Approximate Weight of Machine.......................... 35,000 LBS
CONDITION: Appears to be in Excellent Condition from Aerospace Facility.
|
|
|
