ACTUAL PHOTOS

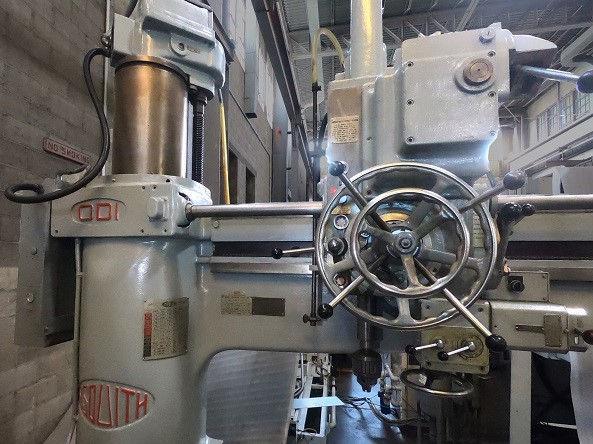

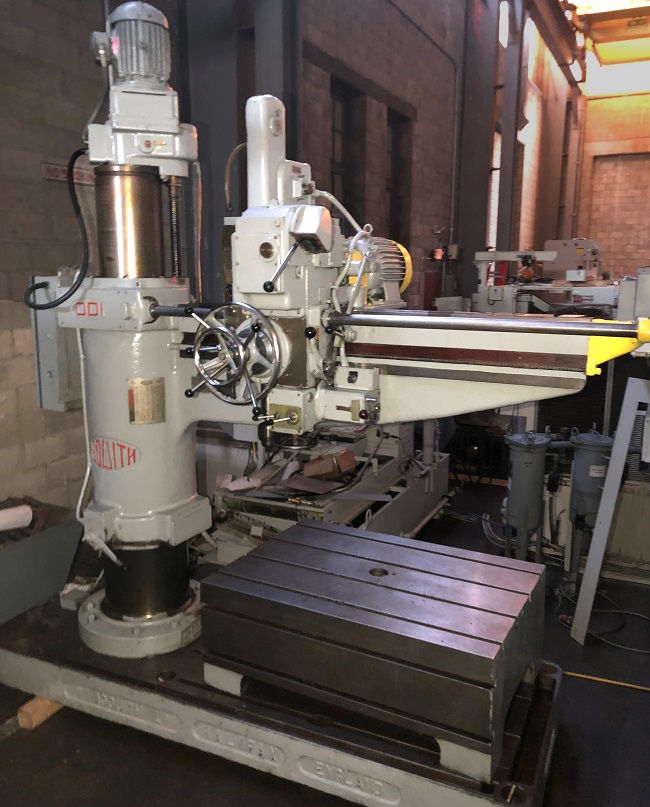

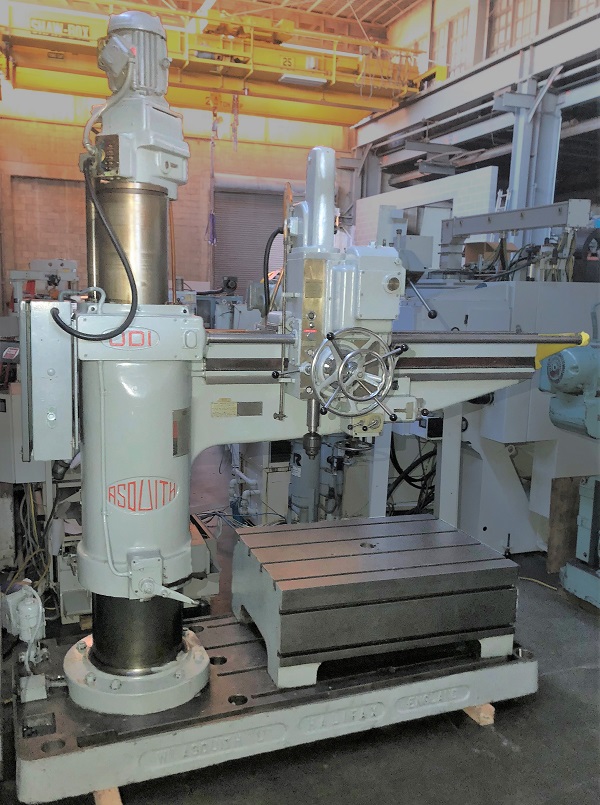

6' x 11" Asquith Radial Arm Drill

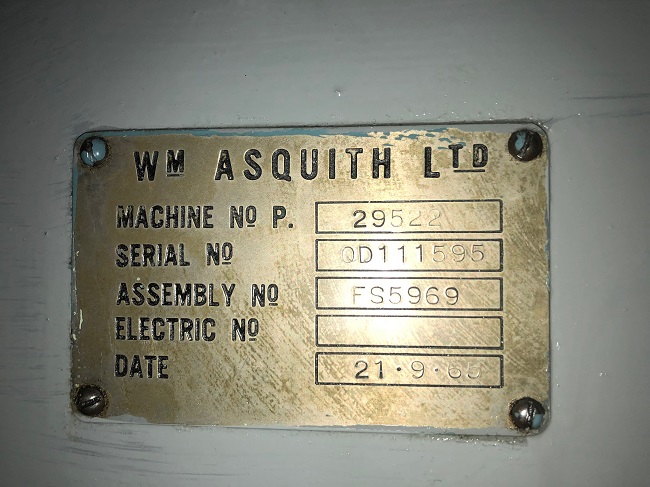

Model OD1, S/N P29522, New 1965
Stock# Q10301
EQUIPPED WITH:
Power Arm Elevation, Power Column Clamping on Arm, Power Head Clamping,
Tapping, 51" x 36" x 20" Free Standing Box Table,
Built-in Coolant System.
CATALOG SPECIFICATIONS:
Arm Length........................................................... 72" (6')
Column Diameter................................................... 11"
Working Surface of Base (T-Slotted).................... 36" x 64"
Vertical Spindle Travel in Head............................. 13"
Vertical Travel of Horizontal Arm on Column........ 28"
Horizontal Head Travel on Arm............................. 52"
Distance Spindle to Base, Maximum..................... 62"
Distance Spindle to Base, Minimum...................... 35"
Face of Column to Spindle, Maximum................... 9"
Face of Column to Spindle, Minimum.................... 72"
Spindle Taper.......................................................... #5 MT
Spindle Diameter..................................................... 2 1/2"

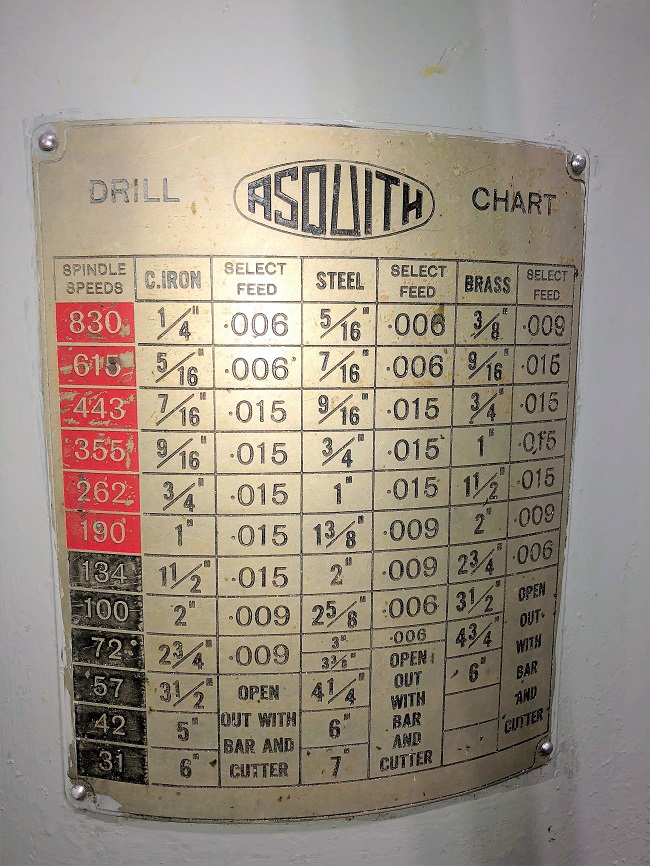

Spindle Speeds (36) Range.................................... 31 to 830 RPM
Spindle Feed Range (18) Range............................. 012- .00832"
Motor........................................................................ 7.5 HP
Electrics................................................................... 220/3/60
Height of Base......................................................... 8"
Approximate Machine Dimensions ......................... 113"x 70"
Approximate Machine Height ................................. 109"
Approximate Weight of Machine............................. 11,000 LBS
CONDITION: Appears to be in Excellent Condition.
