ACTUAL PHOTOS
Video Link

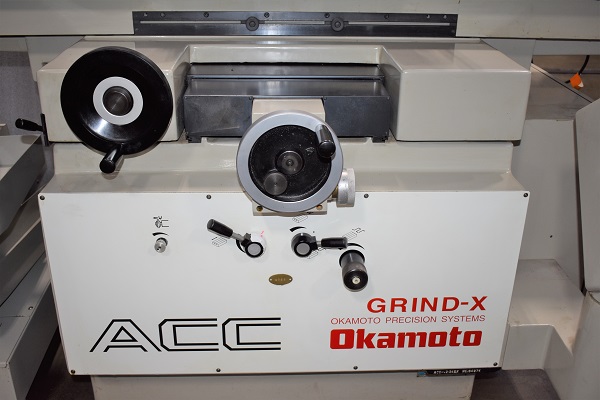

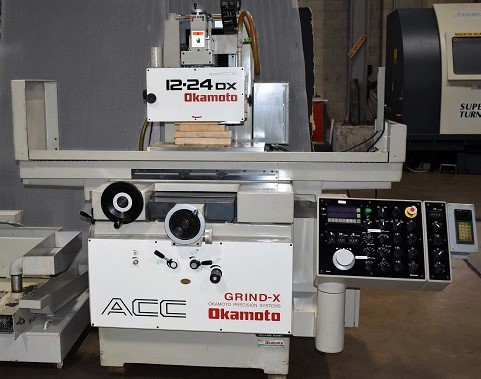

12" x 24" Okamoto Horizontal Spindle Reciprocating Surface Grinder
Model ACC12.24DX, S/N 64974, New 1997
Stock# Q10310
EQUIPPED WITH:
Okamoto Control with Readouts, Variable Speed Spindle Control,Automatic Incremental Power
Down feed,
Manual Pulse Generator, Spark-Out Cycle, Automatic Grinding Cycle,
Automatic Wheel Retract after Spark-Out, 12" x 24" Walker Electro-Magnetic Chuck,
Above-The-Wheel Diamond Wheel Dresser, Coolant Filtration System.
CATALOG SPECIFICATIONS:
Magnetic Chuck Working Surface........................... 12" x 24"
Longitudinal Travel (X-Axis).................................... 29.5"
Cross Travel (Z-Axis).............................................. 13.5"
Vertical Travel (Y-Axis)............................................ 19.25"
Max Height Under a New 12" Wheel...................... 13.7"
Table Longitudinal Feeds Range (Variable)............ 1-82 FPM
Cross Feeds Increments........................................ .02 -.8 IPM
Spindle Vertical Feeds Increments......................... .00005"- .0015"
Grinding Spindle Speed.......................................... 1800 RPM
Grinding Wheel Diameter........................................ 12"
Grinding Wheel Width, Standard............................. 1-1/2"
Grinding Wheel Motor.............................................. 5 HP
Electrics (Dual Voltage)........................................... 440/3/60
Approximate Machine Dimensions.......................... 80" x 95"
Approximate Machine Height................................... 80"
Approximate Machine Weight.................................. 6,180 LBS
CONDITION: From Medical Facility, very low use, Excellent Condition!
