Okuma MU-400VA
5-Axis Full Contouring
CNC Vertical Machining Center

ACTUAL PHOTOS

Video Link

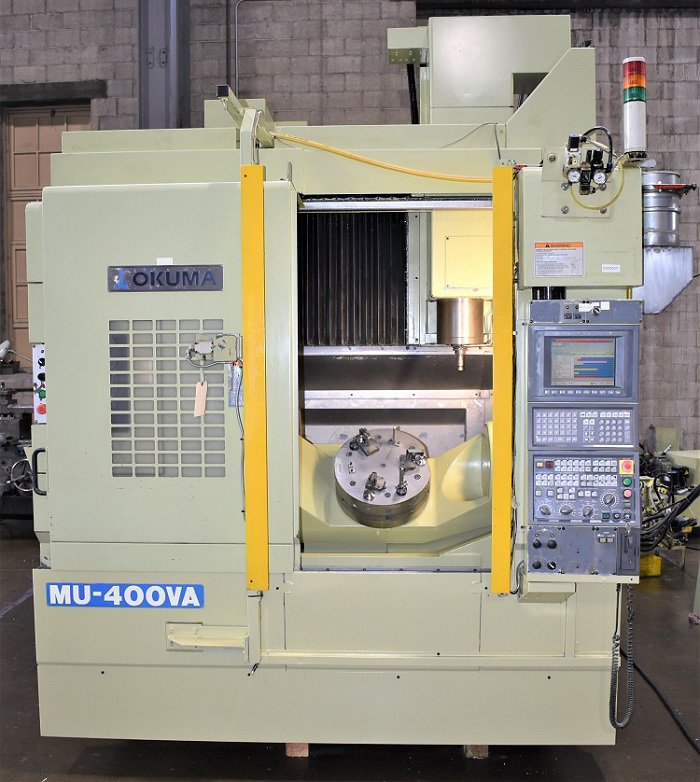

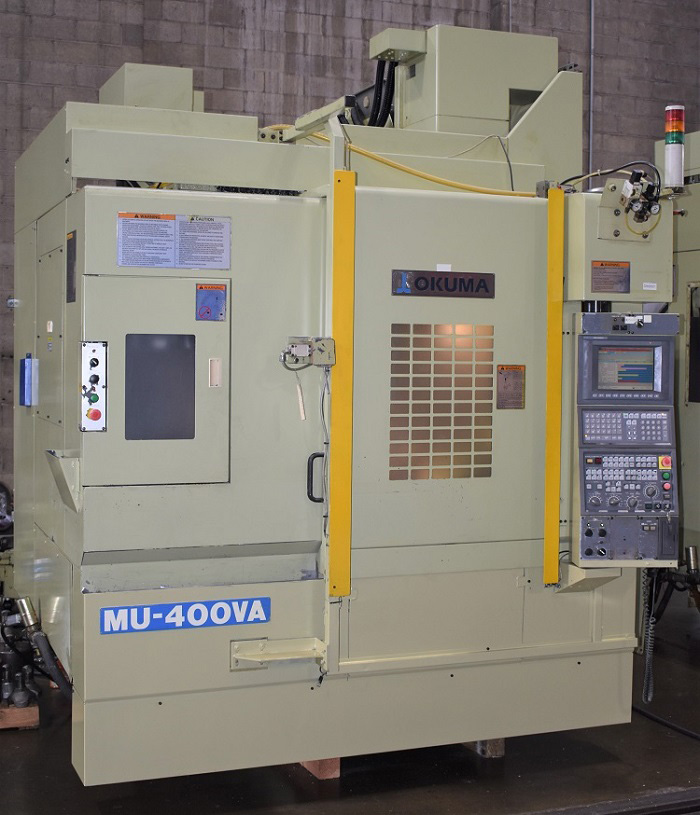

            OKUMA MU-400VA 5-AXIS FULL CONTOURING CNC VERTICAL MACHINING CENTER
                                    Model MU-400VA, New 2005, S/N 110594
                                       Stock # Q10321


EQUIPPED WITH:

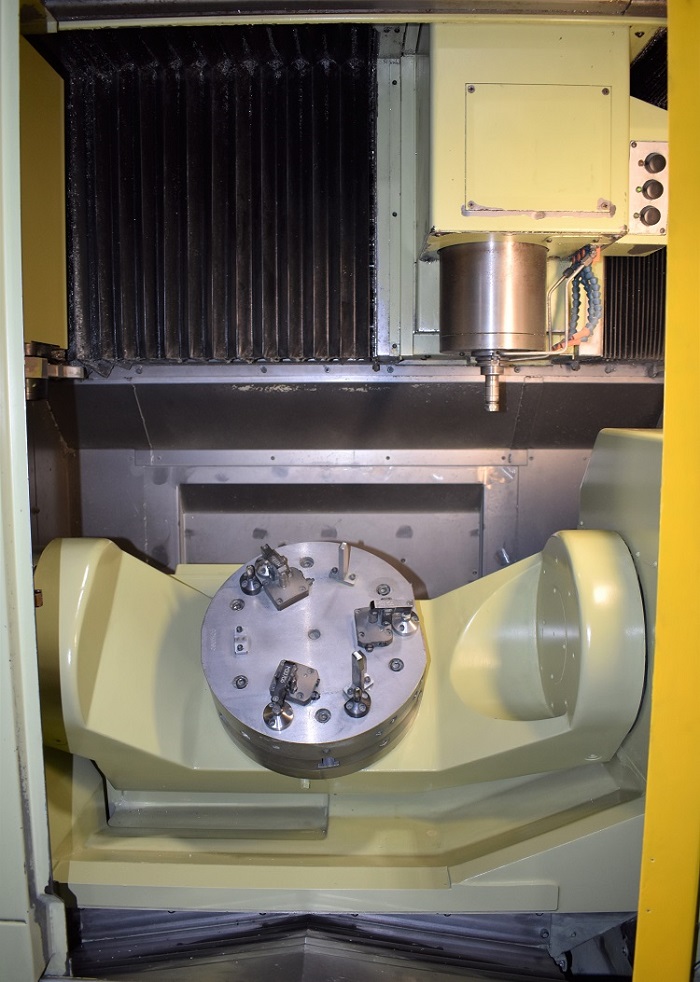

5-Axis Full Contouring With 15.75" Trunnion Mounted Rotary Table,

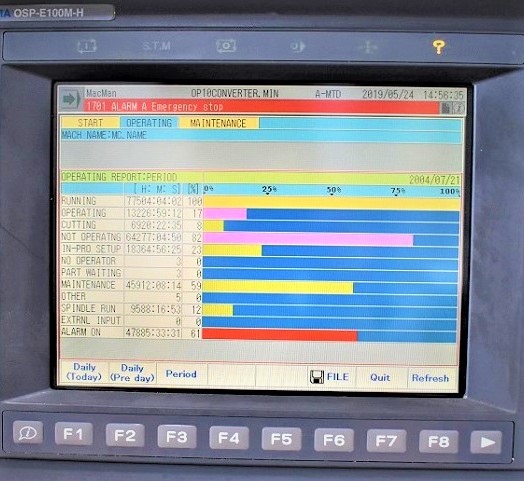

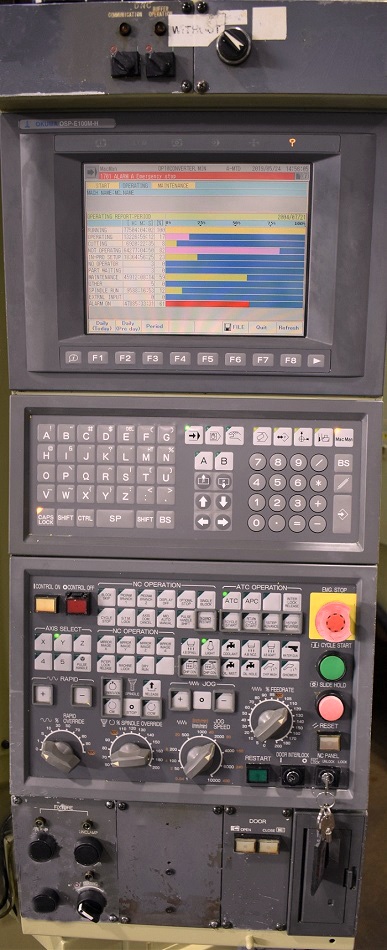

Okuma OSP-E100M-H CNC Control, Remote Handwheel, RS-232 Port,
(Optional) DNC-DT, 8000 RPM Spindle, Through Spindle Coolant,
Flood Coolant, 20 Station Tool Changer, Cat-40 Spindle Taper,
Automatic Pneumatic Doors with Safety Light Curtains, Spindle Chiller,
Auxillary Hydraulic Tank for the Work Table which is Plumbed for

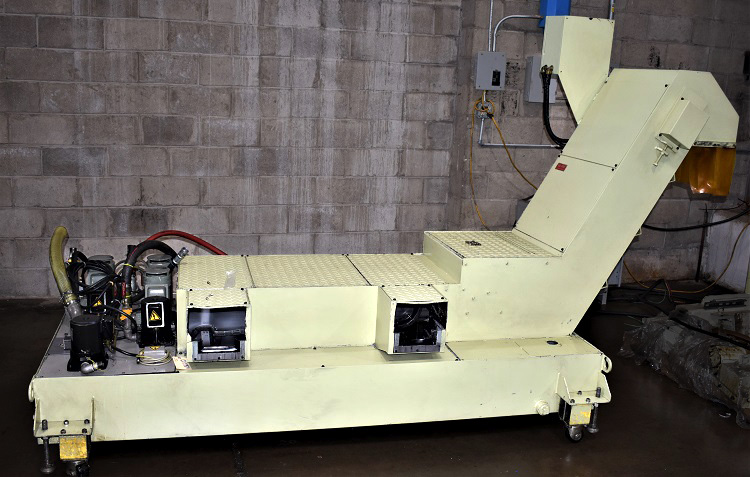

Automatic Power Part Clamping, Chip Conveyor, Coolant System & Tank,
Manuals.


CATALOG SPECIFICATIONS:
Table Working Surface (Round): ................. 15.75" Dia.
Max Table Load: .......................................... 660 Lbs.
X-Axis Travel: .............................................. 30"
Y-Axis Travel: .............................................. 18.11"
Z-Axis Travel: .............................................. 18.11"
A-Axis Trunnion Tilt Range: ........................ +20 to -110 Degrees
C-Axis Table Rotation Positioning: .............. 360,000 Degrees
Table Surface To Spindle Nose: .................. 3.94"-22.05"
Rapid Traverse X/Y/Z: ................................. 1574 IPM
Spindle Taper: ............................................. CAT-40
Spindle Speeds:........................................... 50-8,000 RPM
Spindle Motor: ............................................. 20 H.P.
Tool Magazine Capacity:.............................. 20
Electrics:....................................................... 220/3/60
Approximate Dimensions:............................. 114" x 160" x 116"H
Approximate Weight:..................................... 17,000 LBS

CONDITION: Machine Cutting Hours: 6,900
           Machine Appears to be in Very Good Condition!
