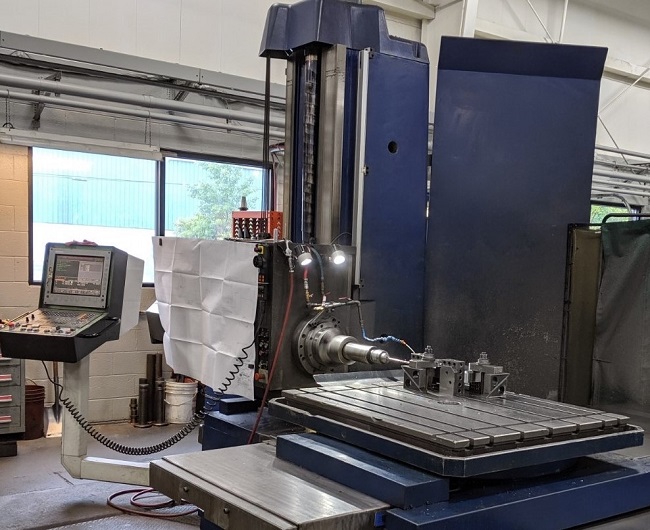

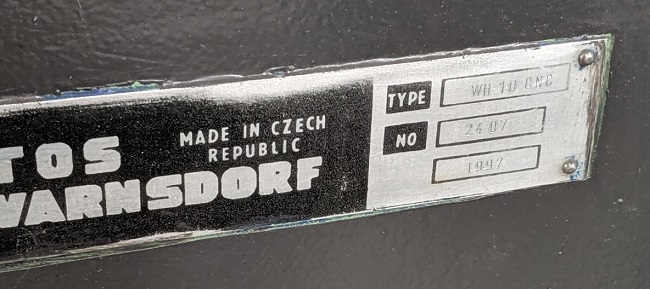

Tos Varnsdorf WH-10CNC
Table Type CNC Horizontal Boring Mill

ACTUAL PHOTOS

                              3.9" TOS VARNDORF CNC TABLE TYPE HORIZONTAL BORING MILL
                                                                  Model WH-10CNC, New 1997
                                                                             Stock# Q10368


MACHINE DESCRIPTION:

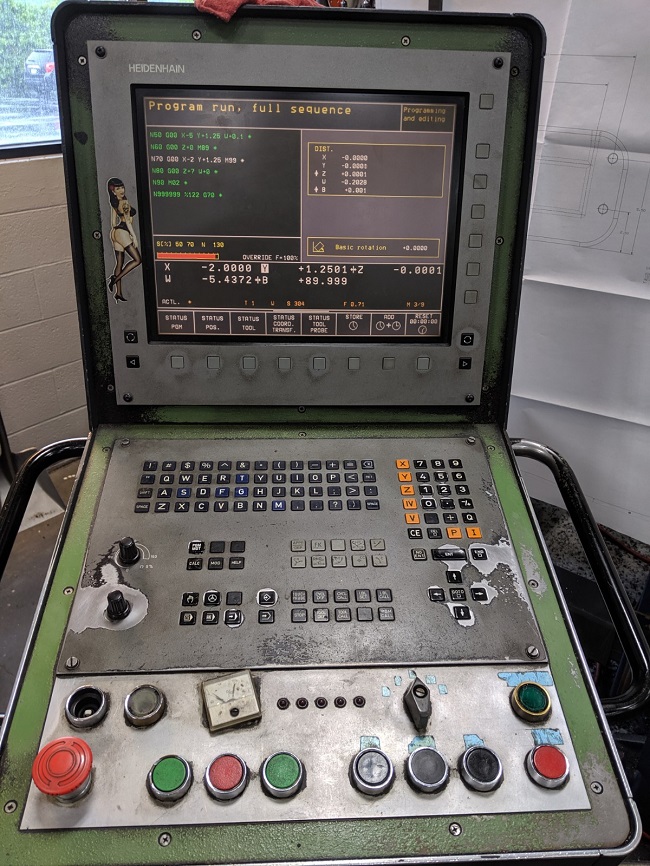

Heidenhain TNC 426C CNC Control, Heidenhain Scales on X/Y/Z-Axis,

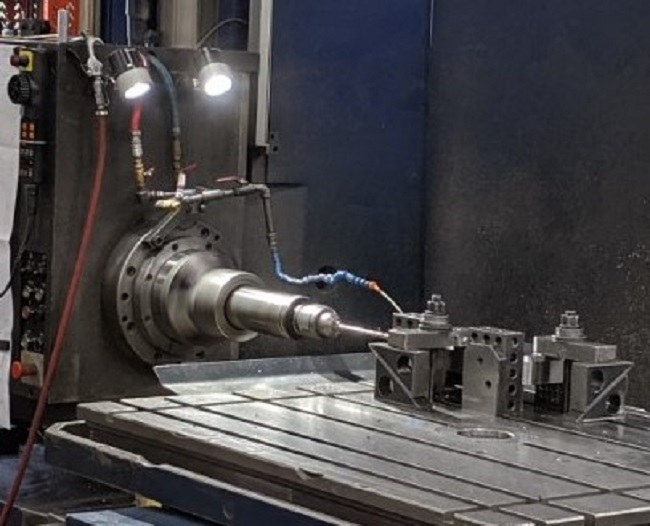

3.93" Spindle Diameter, 44" x 40" Power Rotary Table, Heavy Duty 26 HP
50 Taper Spindle, Precision Ball Screws, Hardened and Ground Ways,
Coolant System.


CATALOG SPECIFICATIONS:
Spindle Diameter................................... 3.93"
Table Size......................................... 44" x 40"
Table Load Capacity................................ 6,613 lbs
X-Axis (Table Cross Travel)........................ 49.21"
Y-Axis (Vertical Travel Above Std Machine Table)... 44.09"
Z-Axis (Spindle (Quill) Travel).................... 24"
W-Axis (Saddle Longitudinal Travel)................ 37"
B-Axis (Rotary Table Positions).................... 360 Degree
Spindle Taper...................................... ISO 50
Spindle Horsepower................................. 26.8 HP
Spindle Speeds .................................... 10 to 1800 RPM
Rapid Traverse (X/Y/Z)............................. 255 in/min
Electrics.......................................... 460/230/3/60
Approximate Machine Dimensions Assembled........... 220" x 144"
Approximate Machine Height......................... 132"
Approximate Machine Weight......................... 28,000 LBS


CONDITION: Seller Spent 116k in 2016 Rebuilding the Machine and Replacing the Spindle.
           Machine Appears to be in Excellent Condition!

Buyer Responsible for Loading Machine onto Truck.
