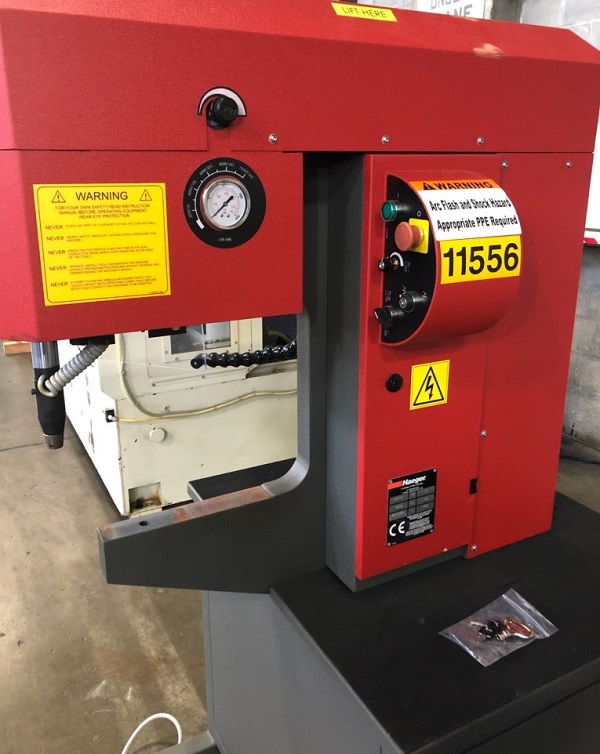

Haeger 516-110 Hardware Insertion Machine

ACTUAL PHOTOS

                                                 HAEGER 516-110 HARDWARE INSERTION MACHINE

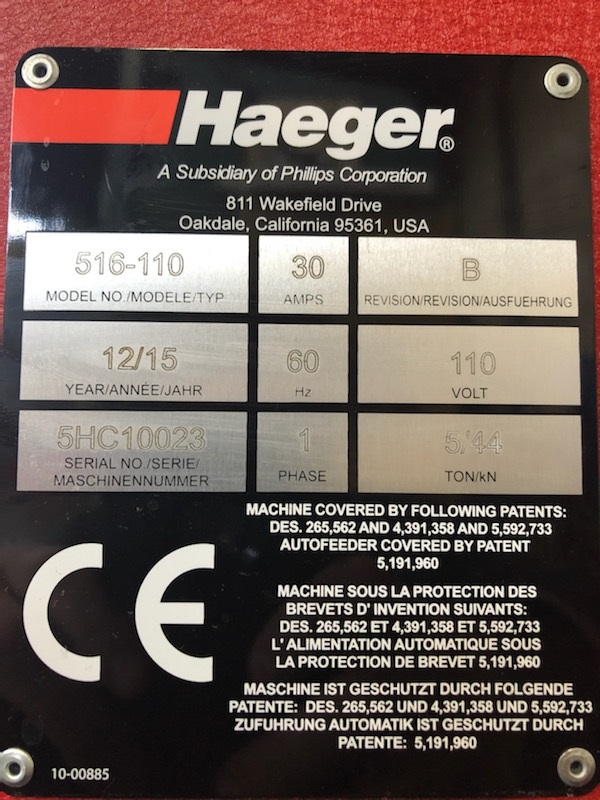

                                                          Model 516-110, S/N 5GC10023, New 12/2015
                                                                                Stock# Q10381


MACHINE DESCRIPTION:
The fully hydraulic system of the 516 is extremely accurate and allows the operator
to apply full tonnage at any point in the stroke. This allows the use of any tooling
length and thus, the ability to fit nearly any shaped workpiece in the machine.The
single phase hydraulic system of the 516 machine uses approximately 50% less energy
than air or air-over-oil systems, making it less expensive to operate. Haeger’s
patented safety system is effective at any point in the ram stroke irrespective of
the tooling length, requiring no setup by the operator, thus not affecting initial
machine setup time. Storage for up to 50 manual tools J-Frame and Square Tip Tool Holder.


Force Range........................................ 10-250 LBS
Repeatability......................................... +/-2% of force set
Throat depth................................ ........ 16" (406mm)
Stroke length......................................... 0-6" Adjustable
Vertical up stroke.................................. 3/8"-6" Adjustable
Hydraulic Pump Motor.......................... 1.5 HP
Oil tank reservoir................................... 2 gallons (8 liters)
Electrical............................................... 110V or 220V single phase
Footprint dimensions (LxWxH).............. 45" x 34" x 75"
Weight................................................... 950 LBS


CONDITION: Appears to be in Excellent Condition. Very low use.
