42" x 160" Mazak Integrex E670 HS IIR/4000 CNC Milling / Turning Center

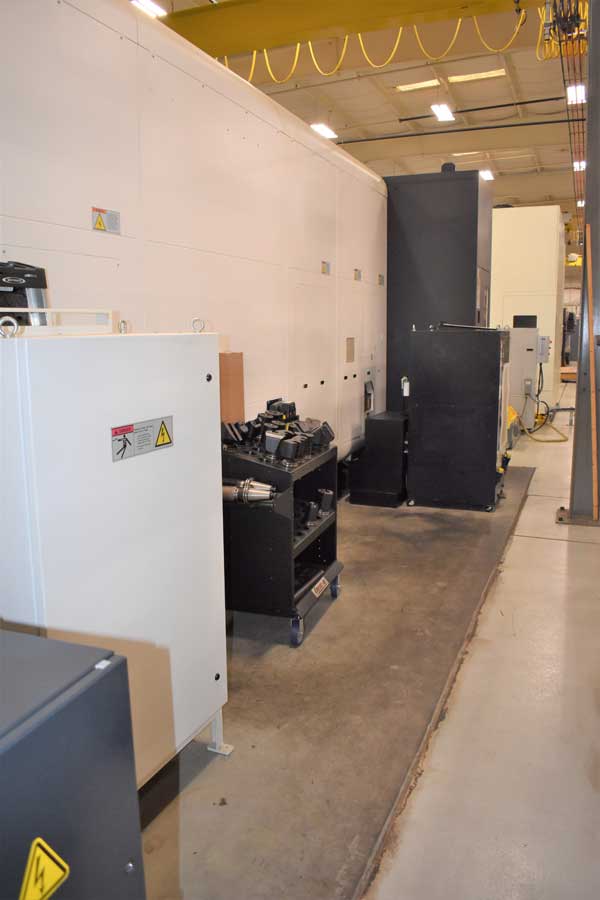

ACTUAL PHOTOS

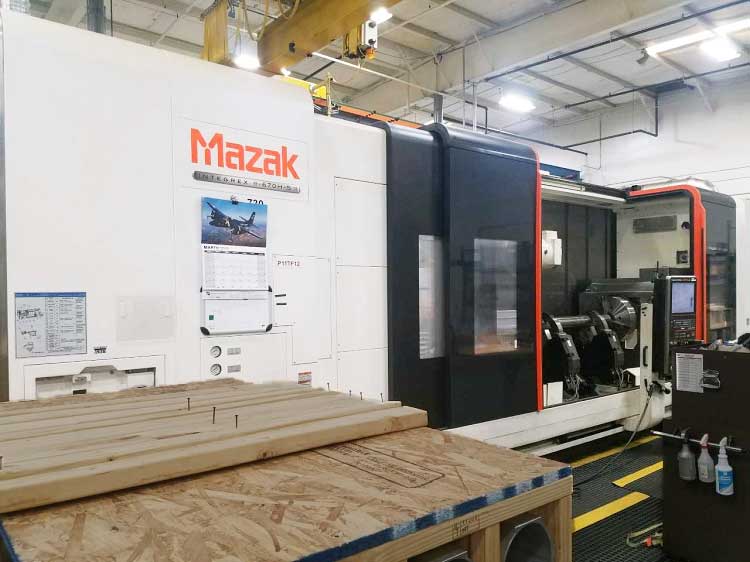

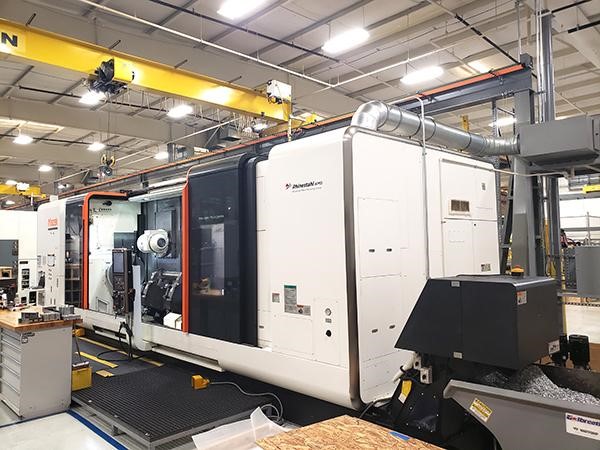

                                    MAZAK INTEGREX e670HS IIR/4000 5-AXIS CNC TURNING CENTER
                                                                     New 2011 / Installed 2013
                                                                              Stock# Q10410


EQUIPPED WITH:

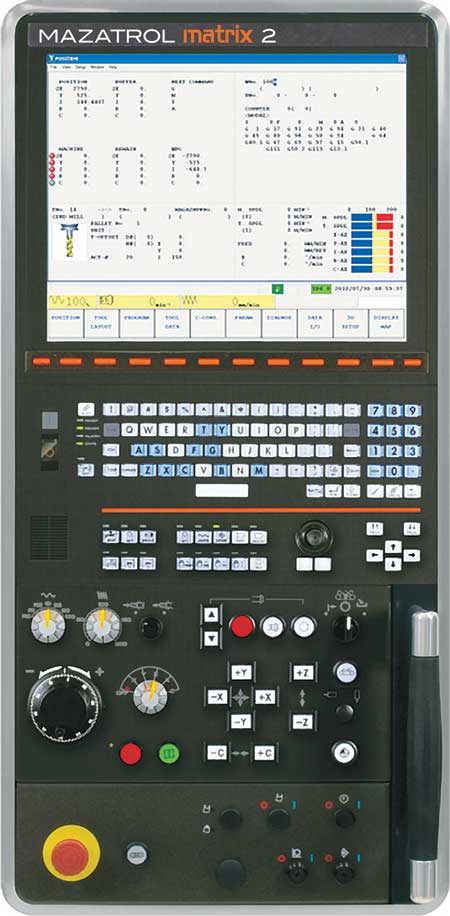

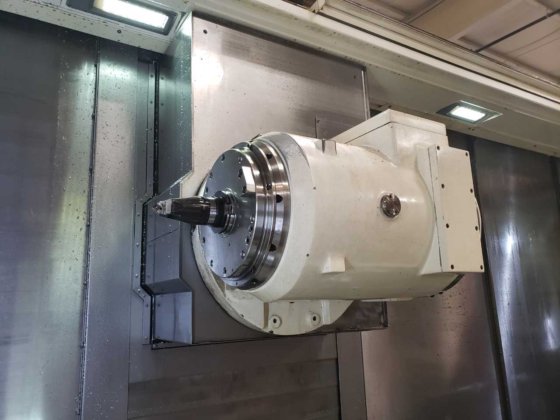

Mazatrol Matrix II CNC Control, 24" Chuck on Main and Subspindle, Hi-Torque Milling

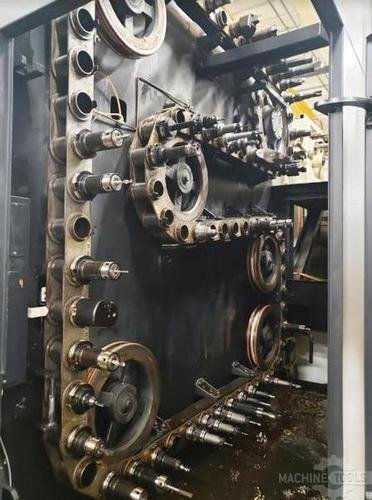

Spindle 5000 RPM, 80 Station Tool Changer (Cat 50), Manual Pulse Generator (Detachable),
Turret Air Blast ? Flood Coolant Nozzle, Glass Scale Feedback System on X,Y & Z-Axis,
Prep for Visual Tool ID Data Management for CAT Magazine, Tool Eye for 24" Chuck,

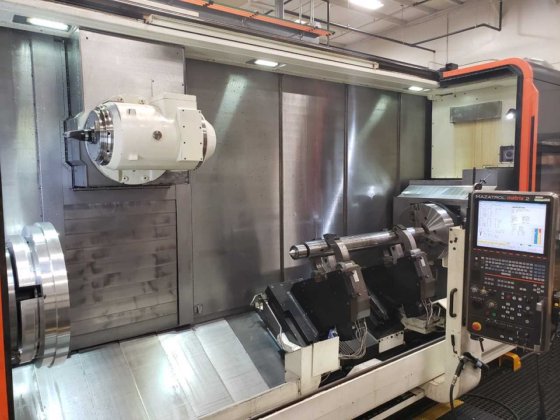

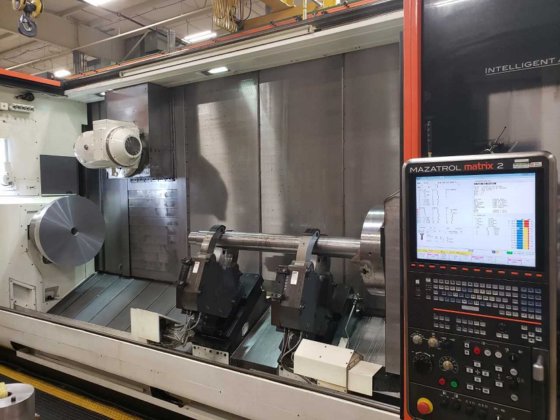

Raise Spindle Center Line 130MM, (2) Programmable LNS/SMW Turn Through Steady
Rest 3.93"-16.12"(Min-Max), W Axis Brake w/ Programmable Work Push Function, Niagara Coolant

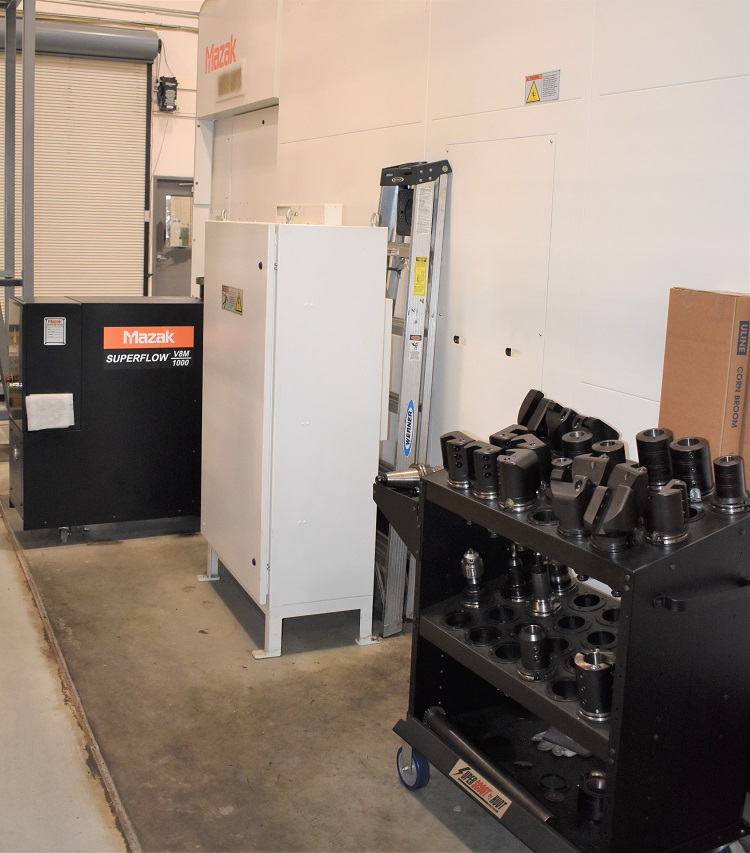

Prep w/ No Pump, 1000 PSI Super Flow Thru Spindle Coolant, 50/60 HP Main Spindle Motor,
50 HP Milling Spindle Motor, Chip Conveyor, Approx. 27 Toolholders Included.

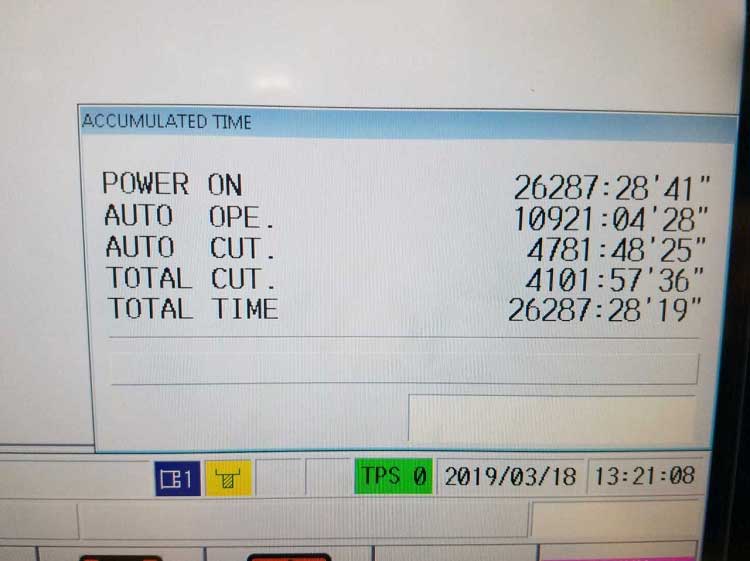

*4,218 Total Cutting Hours


CATALOG SPECIFICATIONS:
Maximum Swing................................. 42.13"
Distance Between Centers................. 162.9"
Hole-Through Spindle......................... 5.75"
Spindle Nose....................................... A2-15
Sub Spindle Bore Dia.......................... 6.69"
Main/SubSpindle Speed(s)................. 1600 RPM
Milling Spindle Speed (Hi-Torque)....... 5,000 RPM
X-Axis Travel....................................... 40.35"
Y-Axis Travel........................................ 26.38"
Z-Axis Travel........................................ 162.9"
C-Axis Indexing ................................... 0.001?
W-Axis Travel....................................... 126.54"
B-Axis Rotation .................................... 240?
Rapid Traverse X/Y & Z........................ 1575 IPM
Approx Overall Dimensions.................. 300" L-R X 130" F-B X 126" H
Approximate Weight............................. 68,344 LBS


CONDITION: This machine was purchased for a contract that was never fulfilled.
                       Machine Appears to be in Excellent Condition with very Low Hours. Mostly cut Aluminum.
                       Available to Inspect Under Power.
