Bridgeport Series 1 Vertical Knee Mill
Stock # Q10414
|

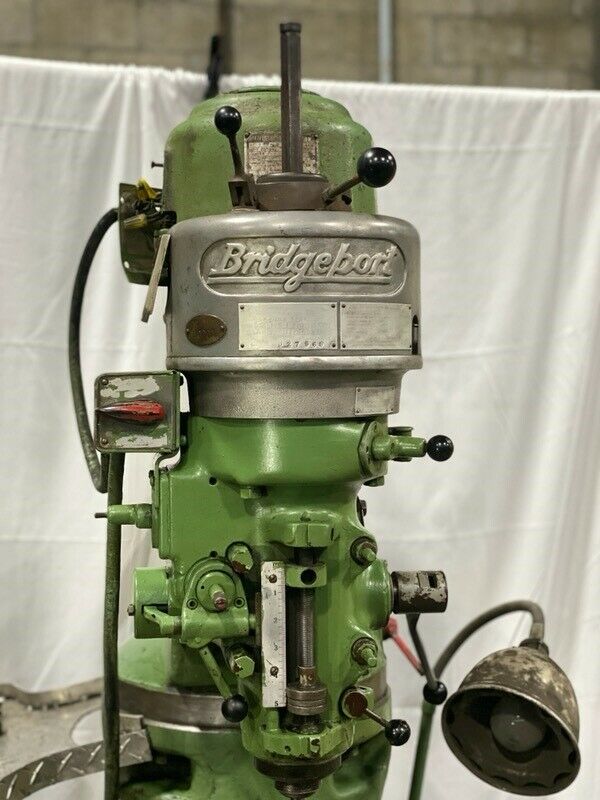

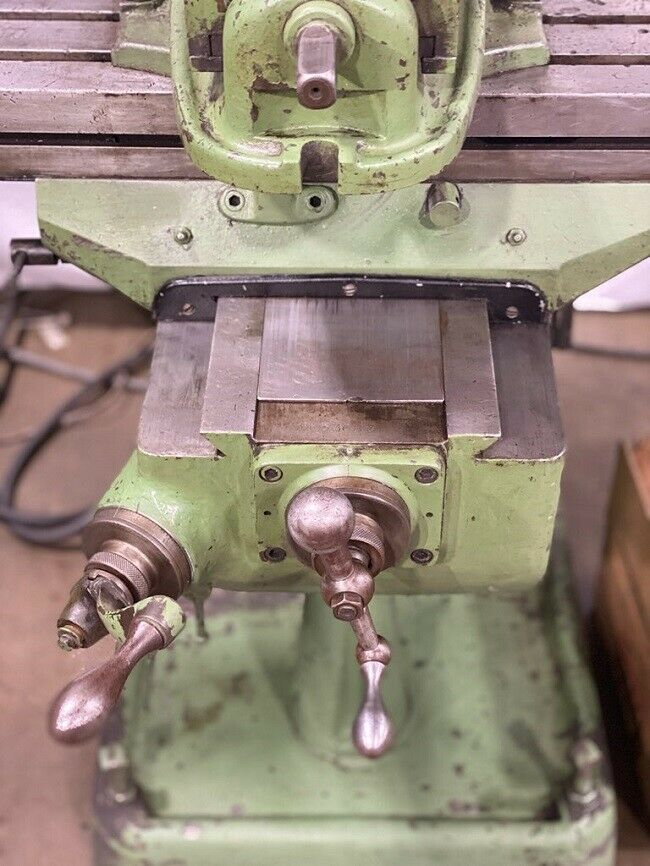

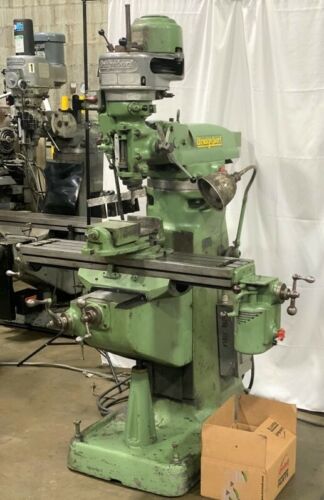

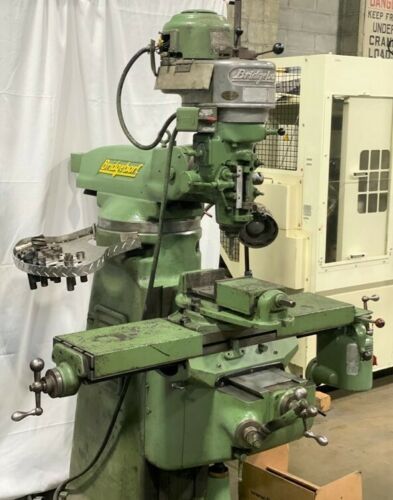

ACTUAL PHOTOS
BRIDGEPORT SERIES 1 VERTICAL KNEE MILL
Model Series 1, S/N BR33683
Stock# Q10414
EQUIPPED WITH:
Handwheels on All Axis for Manual Operation, 1 HP Variable Speed
Spindle Belt Driven, Bridgeport X-Axis Power Feed (Missing Motor),
Knee Lock, Swivel Type Overarm, Draw Bar, One Shot Lube System,
Work Light, Tooling Included- 8 Collets, Bridgeport Vise.
CATALOG SPECIFICATIONS:
Table Dimensions (Overall, W x L)........................... 9" x 42"
Longitudinal Table Travel (X-Axis)........................... 30"
Cross Saddle Travel (Y-Axis)................................... 12"
Vertical Knee Travel (W-Axis).................................. 16"
Vertical Quill Travel (Z-Axis)..................................... 5"
Ram Travel............................................................... 12"
Spindle Taper............................................................ R-8
Spindle Speeds......................................................... 80-2720 RPM
Motor (Spindle)......................................................... 1 HP
Electrics.................................................................... 220/440/3/60
Approximate Machine Dimensions........................... 60" x 58"
Approximate Machine Height................................... 84"
Approximate Machine Weight.................................. 2200 LBS
CONDITION: This Machine Appears to be in Excellent Condition!
|
|
|
