Atrump 3 Axis CNC Vertical Knee Mill

Stock Number Q10432

ACTUAL PHOTOS

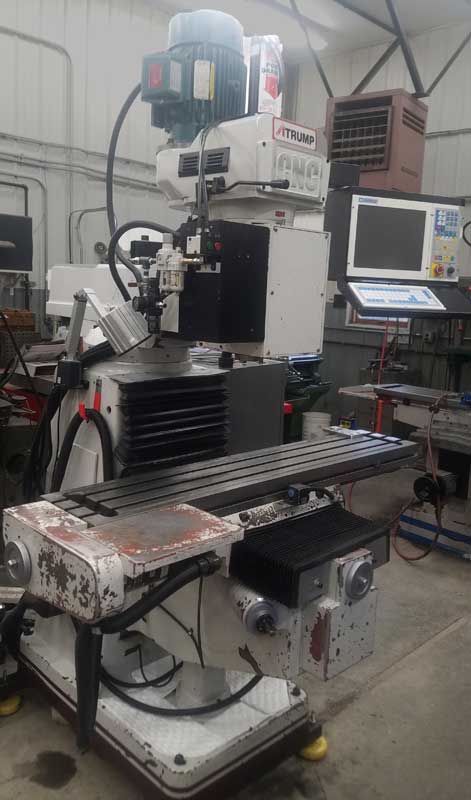

                                   ATRUMP 3-Axis CNC VERTICAL KNEE MILL
                                        Model GSN18F, S/N 944211F, New 2007
                                                         Stock # Q10432


EQUIPPED WITH:
Centroid M-400 3-Axis CNC Control, Solid State Hard Drive, (2) USB Ports,
LAN Port(configured to work with Windows 10), Control Operates on 120VAC,

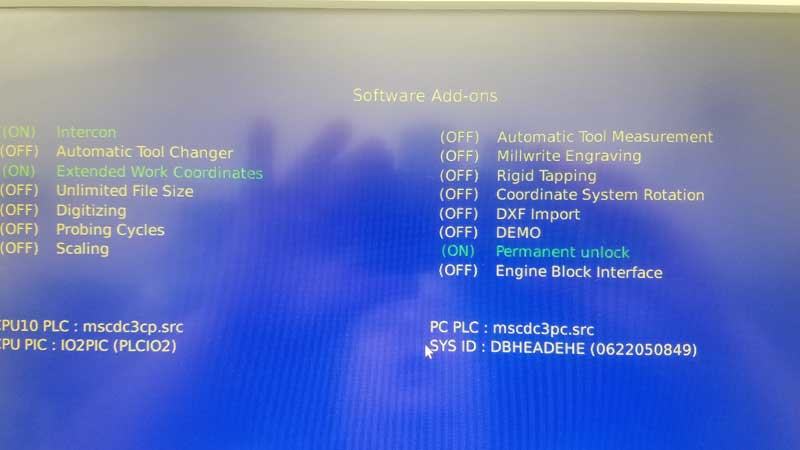

Software unlocked for intercon Conversational Programming and Additional

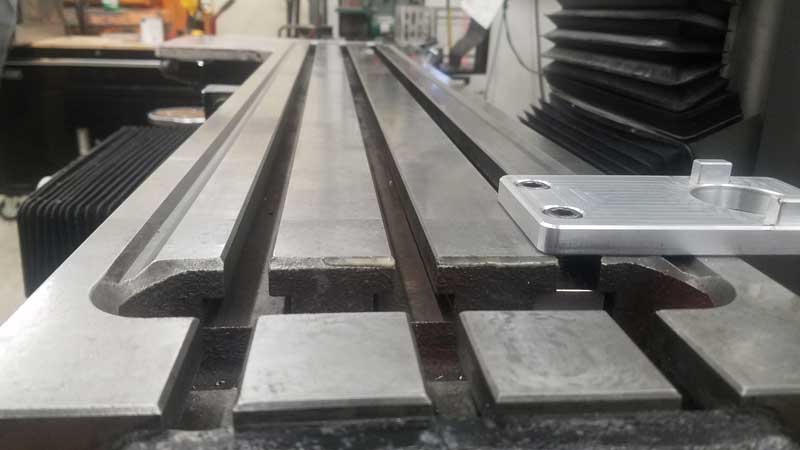

Work Offsets, 4gb Max Program Size, 10" x 54" Table, 6" Z-Axis Quill,

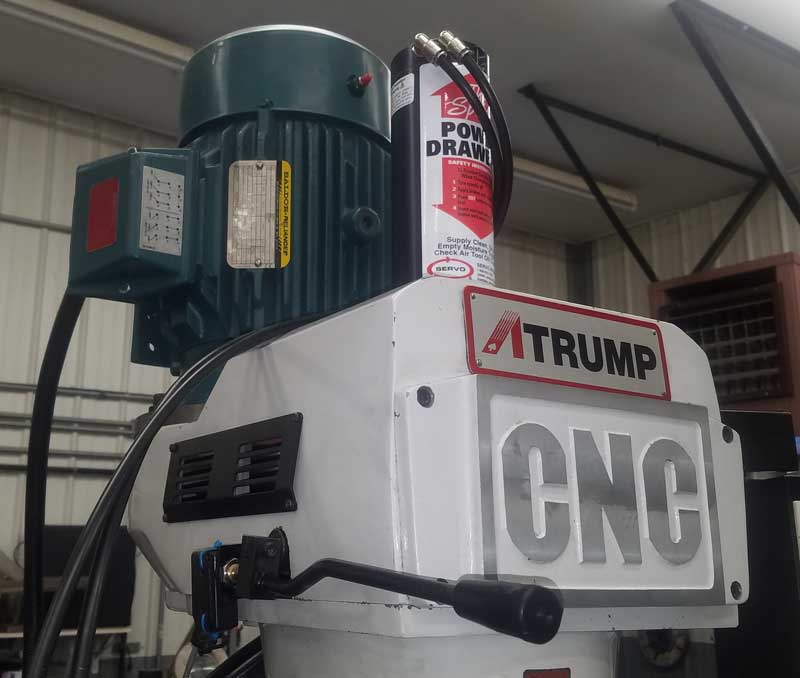

Brand New 5 HP with VFD Spindle Speed Control, Cat 40 Spindle Taper,
Knee Lock, Brand New Power Draw Bar, One Shot Lube System, Work Light.

CATALOG SPECIFICATIONS:
Table Dimensions (Overall, W x L).......................... 10" x 54"
Longitudinal Table Travel Power Feed (X-Axis)....... 31.9"
Cross Saddle Travel (Y-Axis)................................... 14.5"
Vertical Knee Travel (W-Axis).................................. 16"
Vertical Quill Travel (Z-Axis)..................................... 6"
Ram Travel............................................................... 12"

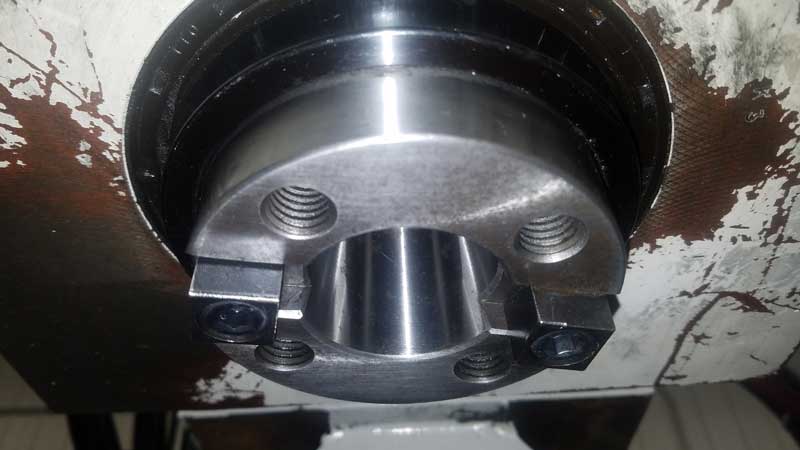

Spindle Taper........................................................... Cat 40
Spindle Speeds........................................................ 50-5000 RPM
Motor (Spindle)......................................................... 5 HP
Electrics.................................................................... 220/440/3/60
Approximate Machine Dimensions........................... 90" x 85"
Approximate Machine Height.................................... 75"
Approximate Machine Weight................................... 3,500 LBS

CONDITION: Machine Appears to be in Excellent Condition!
