Mori Seiki MT3500S/3500 8-Axis CNC Turning Center
Stock # Q10481
|
|
ACTUAL PHOTOS
Video Link

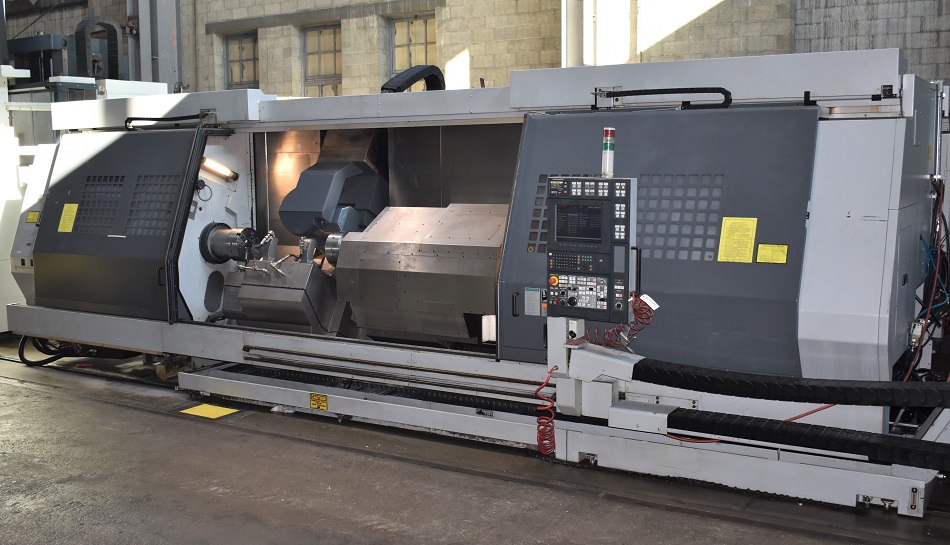

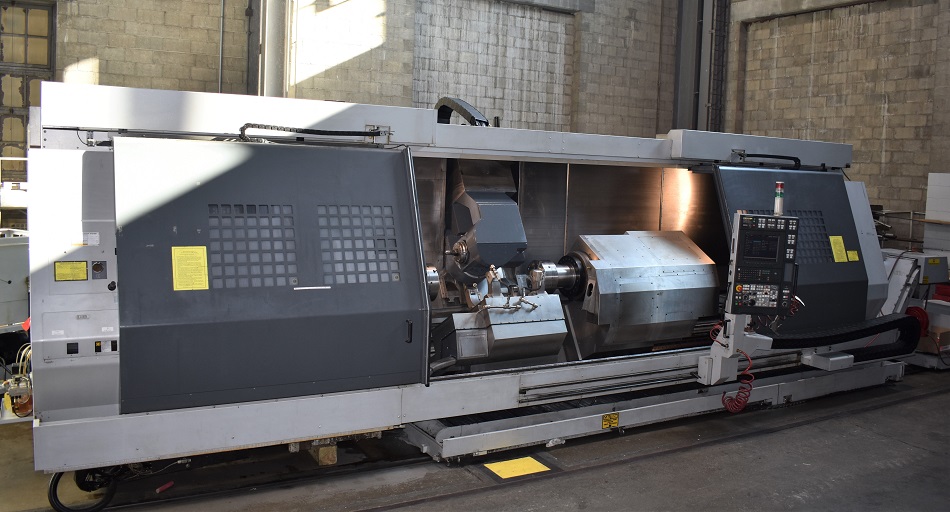

MORI SEIKI MT3500S/3500 8-Axis CNC TURNING CENTER

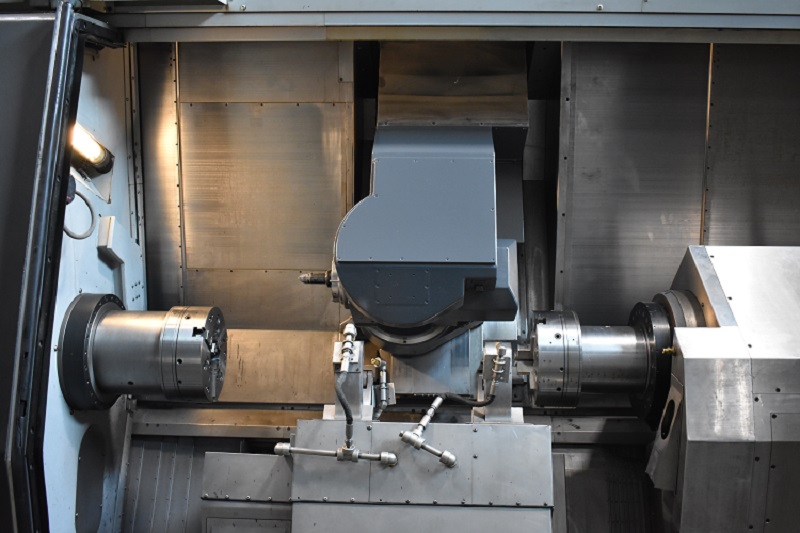

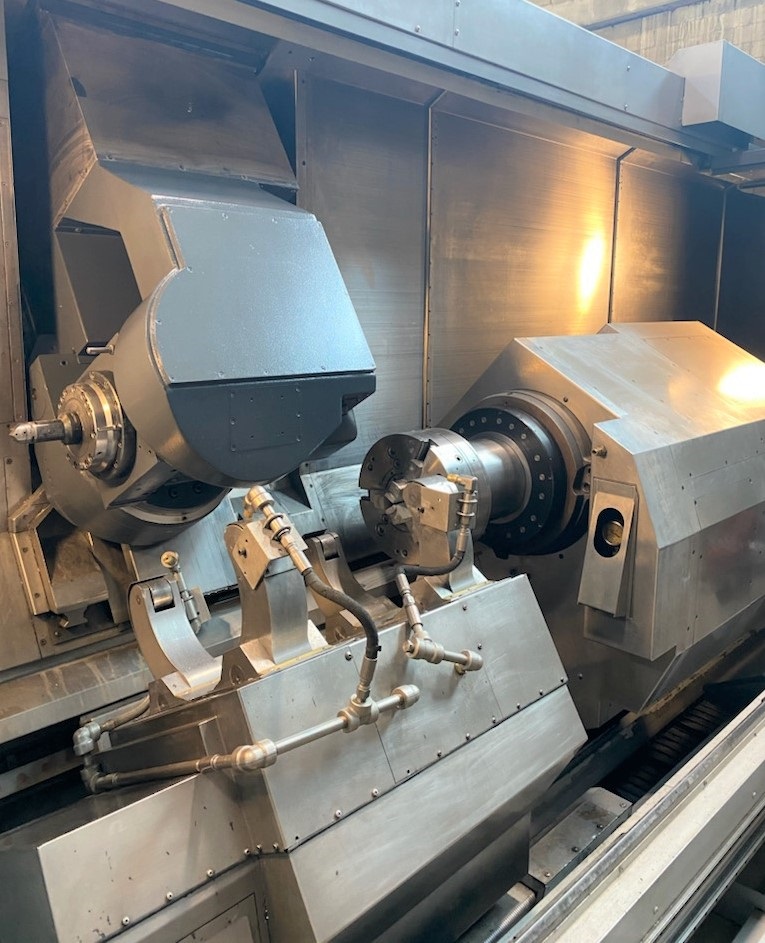

with Universal Head, Live Tooling, Y-Axis and Sub-Spindle
Model MT-3500s/3500, S/N MT351FA0005, New 2006
Stock# Q10481
EQUIPPED WITH:

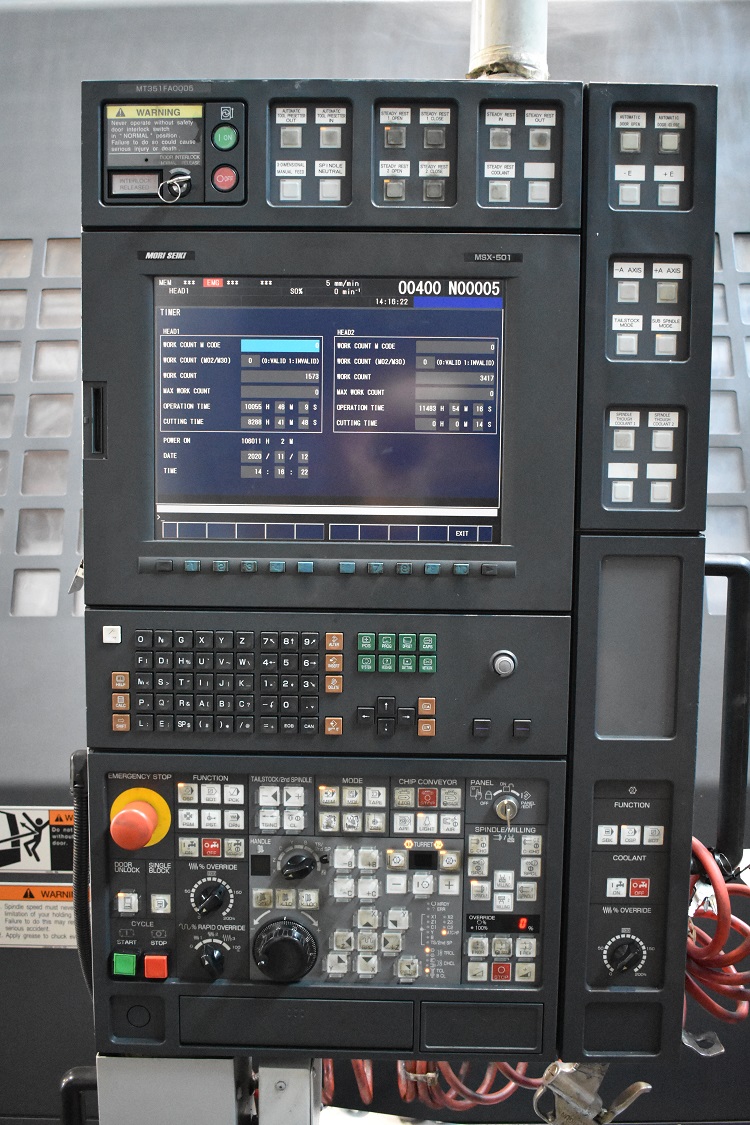

Mori Seiki MSX-501 CNC Control (Fanuc 18iTB), MAPPS Software,

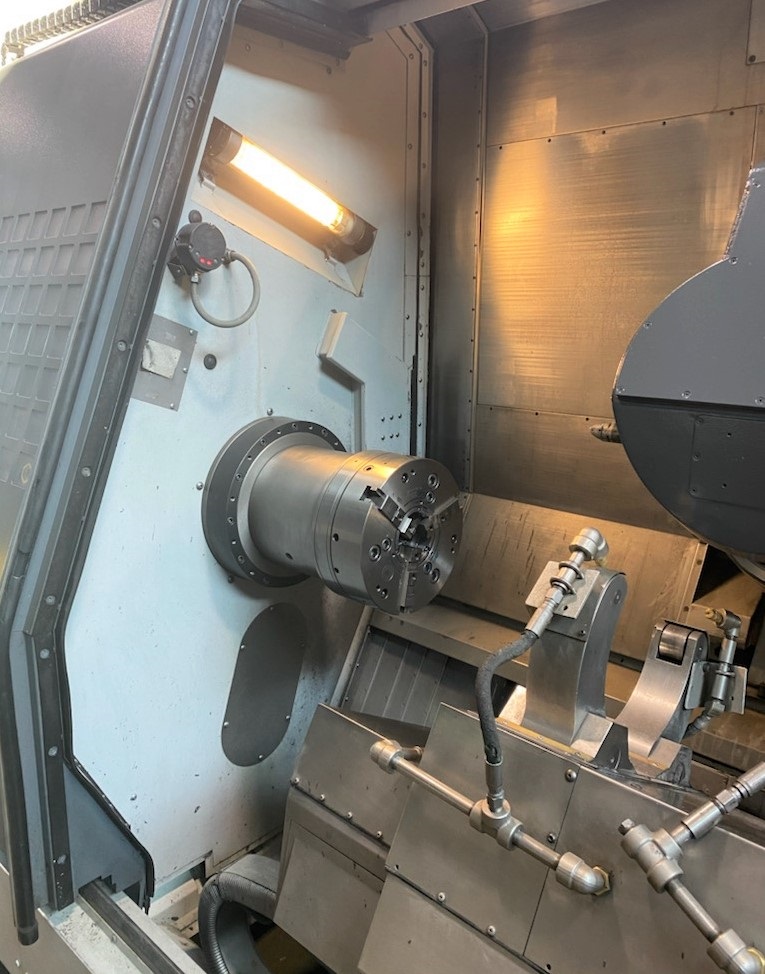

(2) 12" 3-Jaw Chucks on Main and Sub-spindle, 3000 RPM Main Spindle,
4000 RPM Sub-Spindle, 8000 RPM Milling Spindle, Through Spindle Coolant,
120 Station Automatic Tool Changer, (2) 12" Programmable Turn Through Steady Rest,
Automatic Doors, C-Axis Synchronize Function, 120° B-Axis Travel,

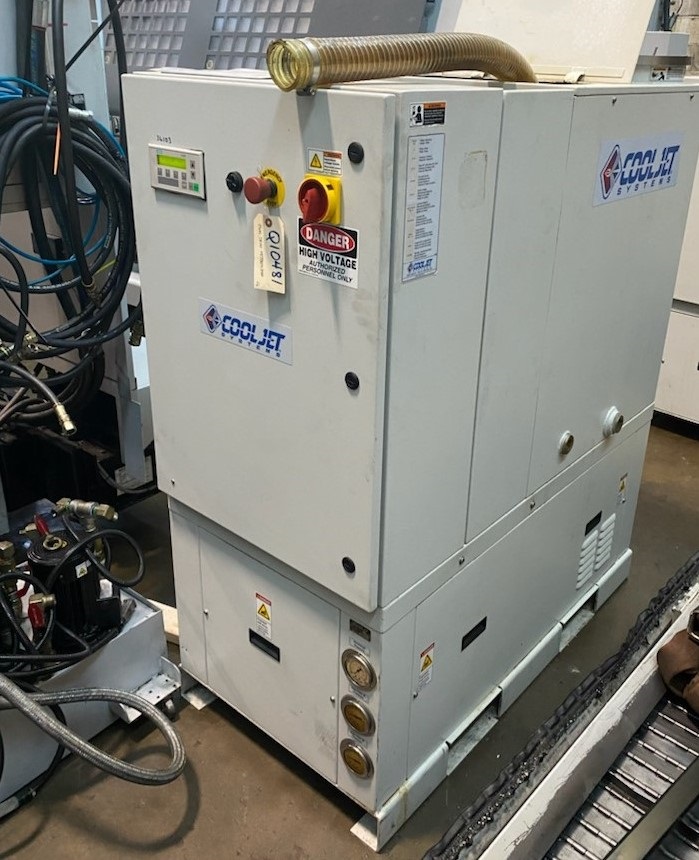

Chip Conveyor, CoolJet High Pressure Coolant System (1000 PSI), Hydraulic Unit,
25 Toolholders Included.
CATALOG SPECIFICATIONS:
Max Swing ................................................................................ 31.5"
Max Machining Diameter........................................................... 22.4"
Chuck Size................................................................................ 12"
Cross Travel (X-Axis)................................................................. 25"
Longitudinal Travel (Z-Axis)....................................................... 125"
Y-Axis Travel ............................................................................. +/- 4.3"
B-Axis Universal Head Swivel................................................... 120°
Universal Head Rotary Tool Horsepower ................................. 15 HP
Universal Head Rotary Tool Spindle Speeds ............................ 8000 RPM
C-Axis on Both Spindles........................................................... .001°
Main Spindle Bore .................................................................... 4.1"
Main Spindle Nose .................................................................... A2-8
Main Spindle Horsepower ........................................................ 40 HP
Main Spindle Speed Range ...................................................... 30-3000 RPM
Sub-Spindle Bore ...................................................................... 4.1"
Sub-Spindle Nose ..................................................................... A2-8
Sub-Spindle Horsepower .......................................................... 20 HP
Sub-Spindle Speed Range ....................................................... 50-4000 RPM
X-Axis Universal Head Cross Travel Rapid Traverse Rate ..... 944 IPM
Z-Axis Universal Head Longitudinal Rapid Traverse Rate ...... 1181 IPM
Automatic Tool Changer Capacity............................................. 120 Total
Electrics .................................................................................... 480/3/60
Approximate Machine Dimensions............................................ 348" x 133"
Approximate Machine Height.................................................... 129"
Approximate Machine Weight.................................................... 72,000 LBS
CONDITION: Machine Appears to be in Excellent Condition !
|
 |
|
