18" x 118" Shigiya GP-45B CNC Plain Cylindrical Grinder

Stock # Q10507

ACTUAL PHOTOS

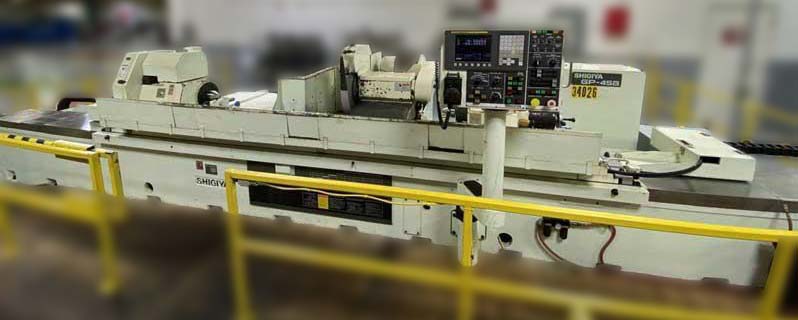

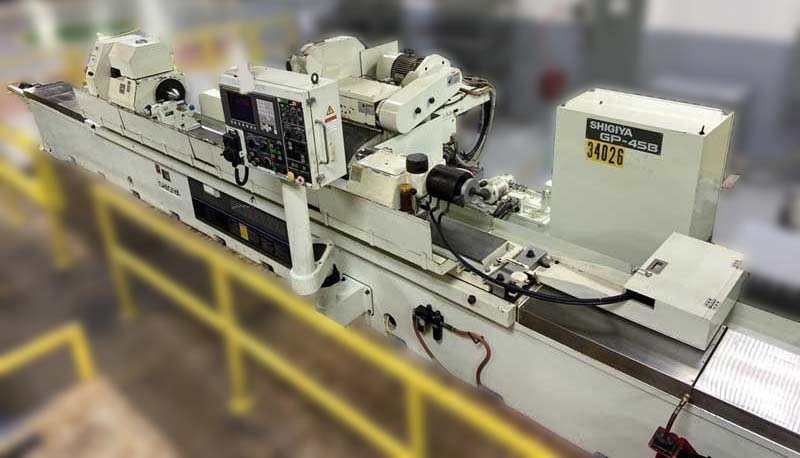

               18" X 118" SHIGIYA GP-45B CNC PLAIN CYLINDRICAL GRINDER

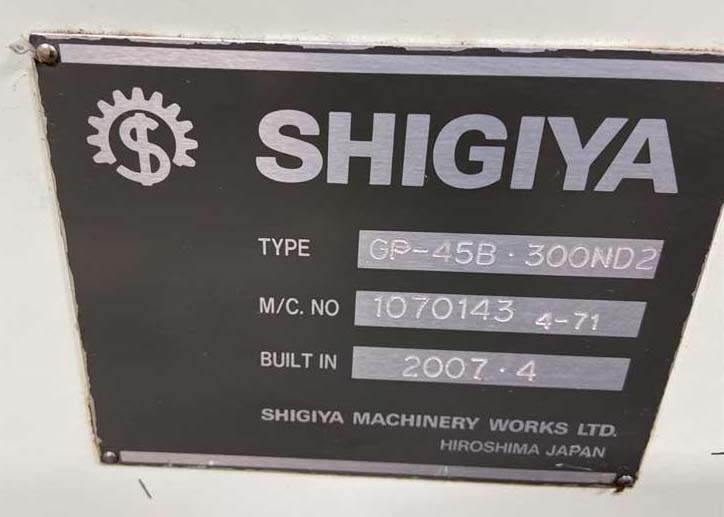

                         Model GP-45B-300ND2, S/N 10701434-71, New 2007
                                                          Stock # Q10507

NOTE: This is the ND2 Deluxe Model with Significantly More CNC Function
over the ND Model.

EQUIPPED WITH:

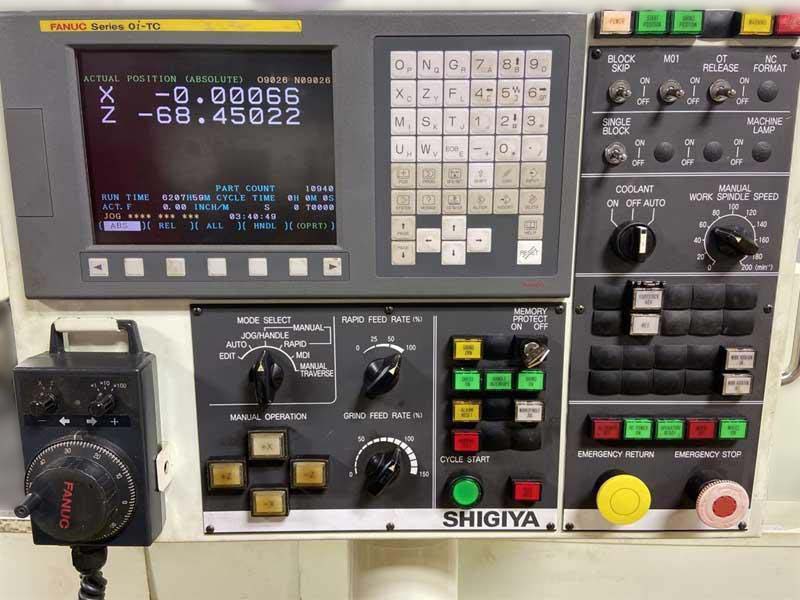

Fanuc 0i CNC Control with G-Codes and Conversational, 90 Degree Straight
Wheelhead, Ballscrew and Electric 2-Axis CNC Servo Drive of X and Z Axis,

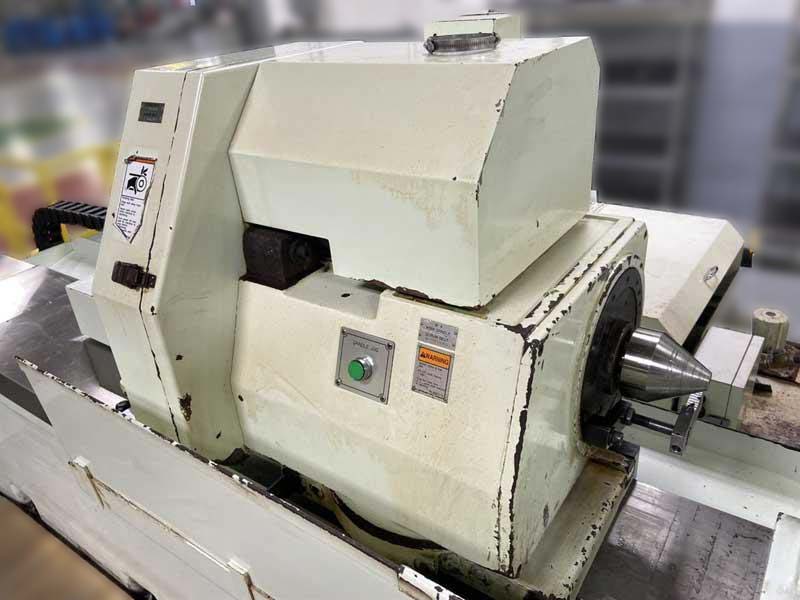

CNC Form Wheel Dressing Off of the Tailstock, M4 Swivel Workhead, Swivel
Table Adjustment from Either End with Gauge at Both Ends, Tailstock

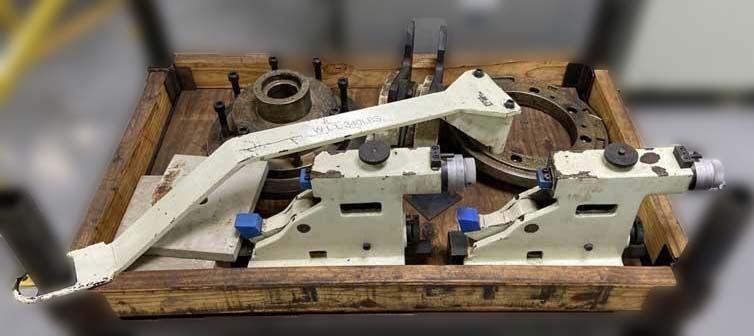

Mounted Wheel Dresser, Wheel Lifting Tool, (3) Follow Rests,
(2) Additional Work Rests, (2) Wheelmounts with one used 24" x 3" Wheel
and (1) Brand New 30" x 3" Norton Grinding Wheel Sealed in the Original
Box, Automatic CNC Servo Wheel Infeed, Automatic Rapid Wheel Infeed,

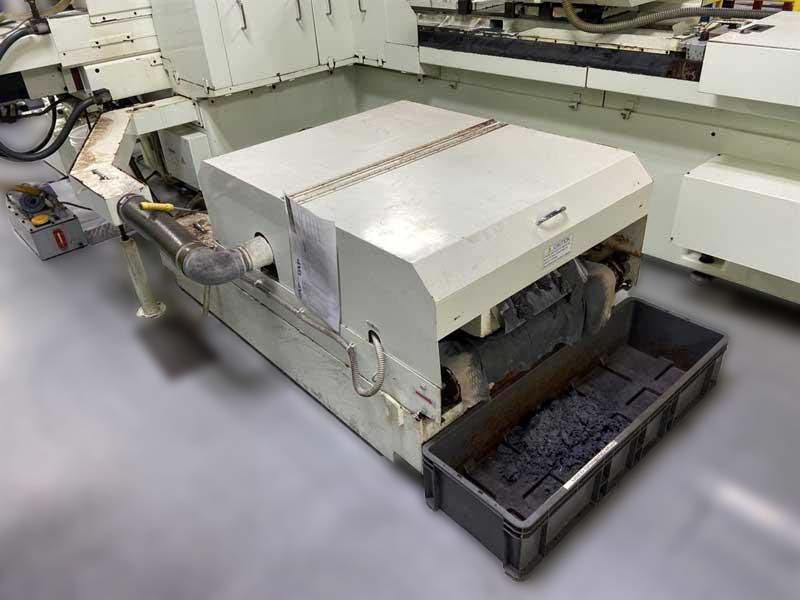

Automatic Table Traverse, Paper Filter Coolant Filtration System.

CATALOGUE SPECIFICATIONS:
Swing Over Table, Maximum...................................... 17.72"
Grinding Length, Maximum......................................... 118.11"
Maximum Load Between Centers............................... 2,204 LBS
Grinding Wheel, Standard Diameter........................... 24" & 30"
Grinding Wheel, Standard Width................................ 3"
Grinding Wheel, Standard Hole Diameter.................. 10" & 12"
Wheelhead Feed Stroke............................................. 11.61"
Wheelhead Infeed Feed Rates................................... .01-4.0 IPM
Wheelhead Horsepower............................................. 14.75 HP
Table Traverse Rate.................................................... 0-400"/min
Table Swivel................................................................ 5 Degrees
Workhead Horsepower............................................... 4.6 HP
Workhead Speed........................................................ 3-150 RPM
Electrical System........................................................ 230/460/3/60
Approximate Machine Dimensions............................. 372" x 102"
Approximate Machine Height...................................... 75"
Approximate Machine Weight..................................... 28,000 LBS

CONDITION: Machine Appears to in be Excellent Condition!
                      Only 7,000 Cut Hours, New Replacement Price is $ 650,000.
