JUST PURCHASED !!

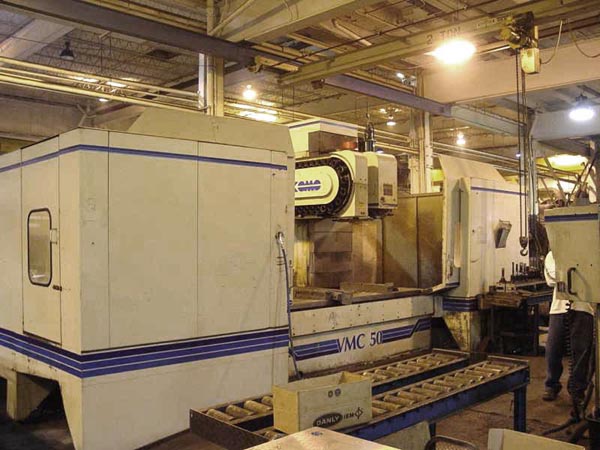

KOMO VMC-50
TRAVELING COLUMN VERTICAL MACHINING CENTER
Model VMC50, S/N 1932497, 1998, Stock# K12586
EQUIPPED
WITH:
Fanuc 16MB Control, Multi Part
Program Storage, Programmable Offsets, RS-232 Data Line, Dual Set-up Table
Positions with Partition, Feedback Scales, Helical Cutting, Heavy Duty
Cat-50 Taper Spindle, 30 Station Double Arm Tool Changer, Coolant System
and Chip Conveyor.
CATALOGUE SPECIFICATIONS:
Table Working
Surface................................. 32" x 120"
Table Load
Capacity................................... Unlimited
Longitudinal Travel
(X-Axis).......................... 120"
Cross Travel
(Y-Axis)................................. 32"
Vertical Travel
(Z-Axis).............................. 32"
Feed Rates (X,Y,Z
Axis)............................... .1 - 500 IPM
Rapid Traverse Rate (X &
Y-Axis)...................... 600 IPM
Tool Storage
Capacity................................. 30
Spindle
Horsepower.................................... 25 HP
Spindle Speed
Range................................... 0-3500 RPM
Spindle
Taper......................................... #50 Cat
Electrics............................................. 460/3/60
Approximate Machine
Dimensions........................ 273" x 116"
Approximate Machine
Height............................ 129"
Approximate Machine
Weight............................ 54,700 LBS
CONDITION: Machine Appears to be in
Excellent Condition !
|
