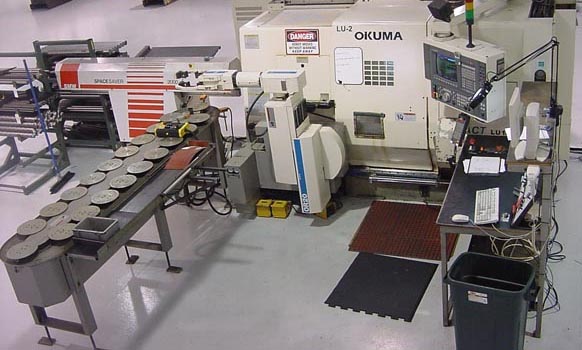

EQUIPPED WITH:

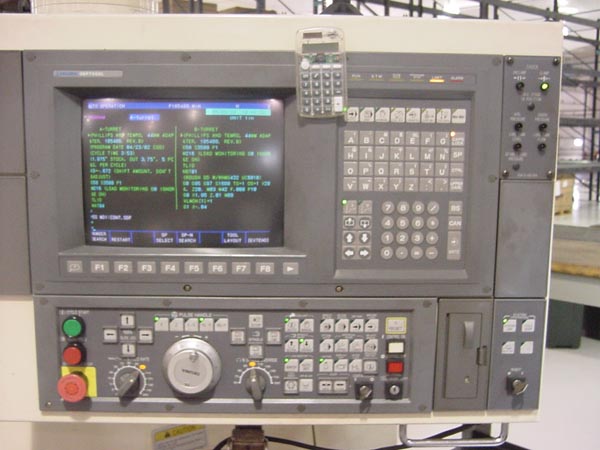

Okuma OSP7000L CNC Control w/Color CRT, DNC-T3 Interface, 3.5" Floppy
Disk Drive, NC Torque Limit, Animation, Lap-4, User Task 2, Expanded
Auto Chamffer, Cycle Time Calculator, Cycle Reduction, 10" Kitagawa

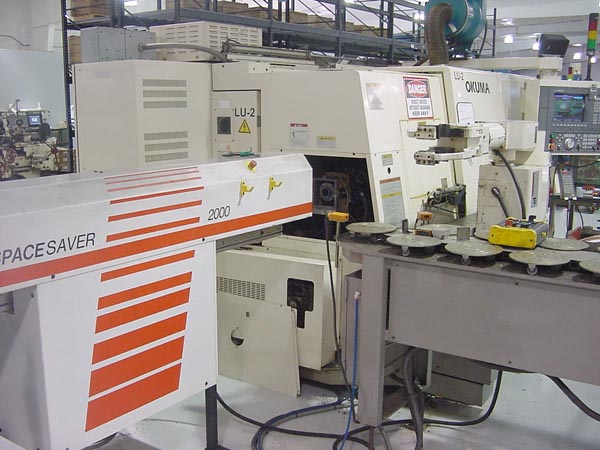

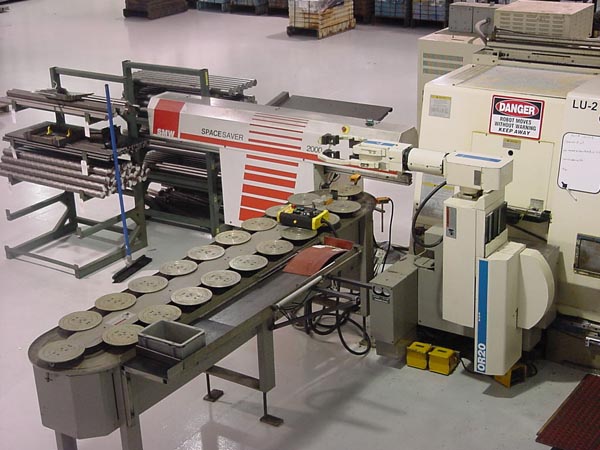

3-Jaw Hydraulic Chuck, Part Catcher, Barfeed Interface, SMW Spacesaver

2000 Magazine Bar Feeder,  OR20 Part Loading/ Unloading

Robot, Programmable Tailstock Option, Tool Life
Management, 30 HP Spindle, 2.75" Bar Capacity Option, 12 Position Upper
and 8 Position Lower Simultaneous Tool Turrets (20 Total Tools), Spindle

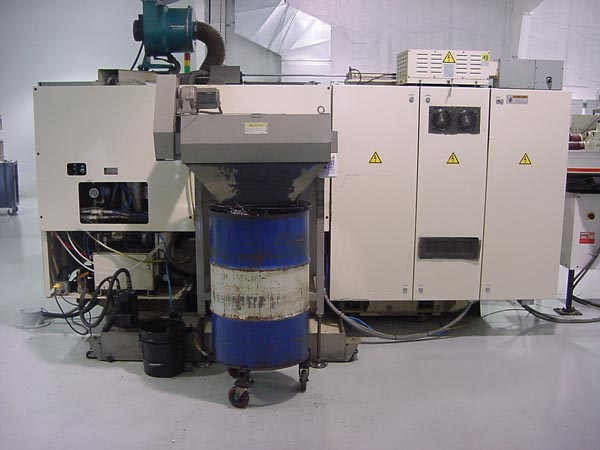

Orentation, NC Torque Limit, Chip Conveyor and Coolant System.


CATALOGUE SPECIFICATIONS:
Max Swing Over Slant Bed .................................... 22"
Max Turning Diameter......................................... 14.17"
Max Machinable Center Distance............................... 23.62"
Cross Travel (X-Axis)         Upper Slide Above Center....... 11.6"
                              Lower Slide Below Center ...... 7.6"
Longitudinal Travel (Z-Axis)  Upper Slide.................... 29.6"
                              Lower Slide ................... 21.4"
Feed Range X & Y-Axis (Infinetly Variable) .................. 400 IPM
Rapid Traverse Rate X & Y Axis .............................. 400 IPM
Tool Positions (12-Upper & 8-Lower).......................... 20 Total
Barcapacity............. ................................................ 2.75"
Spindle Speed Range ......................................... 4500
Spindle Horsepower........................................... 30 HP
Approximate Machine Dimensions............................... 189" x 78"
Approximate Machine Height................................... 79"
Approximate Machine Weight................................... 24,000 LBS

 CONDITION: Machine appears to be in Excellent Condition !
