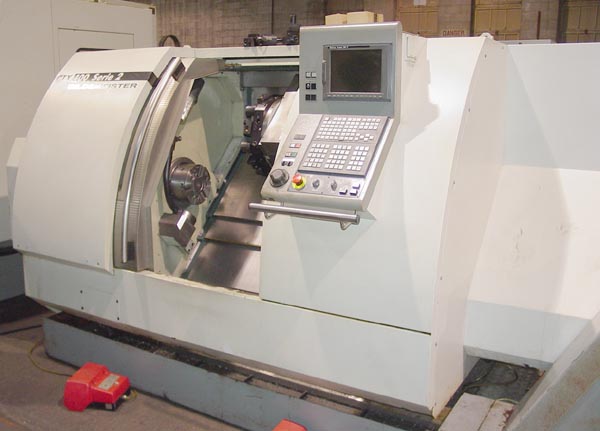

GILDEMEISTER CTX-400S2 CNC
TURNING/MILL CENTER
Model CTX-400S2, New 2002
Stock #k12688
EQUIPPED WITH:
Fanuc 21i CNC Control, RS-232 Port, Tool Tip Graphics, Live
Tooling Milling/Drilling Tool Turret Option, Full Contouring C-Axis
Spindle, 8" 3-Jaw Power Chuck or 10" 3-Jaw Power Chuck, Programmable
Tailstock, 12 Position Tool

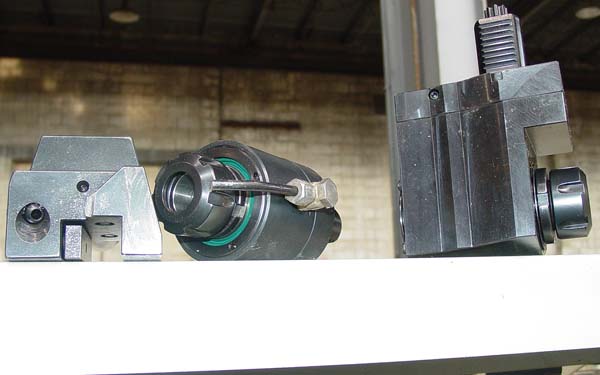

Turret, Chip Conveyor, Coolant System, Tooling Package.
CATALOGUE SPECIFICATIONS:
Max Swing Over Slant Bed ................................... 22.4"
Max Swing Over Crosslide Ways............................... 16.5"
Max Machinable Center Distance.............................. 25"
Cross Travel (X-Axis)....................................... 8.7"
Longitudinal Travel (Z-Axis)................................ 25"
Rapid Traverse Rate X-Axis ................................. 787 IPM
Rapid Traverse Rate Z-Axis.................................. 945 IPM
Tool Positions.............................................. 12 Total
Spindle Bore ............................................... 3.1"
Spindle Bar Capacity........................................ 2.56"
Spindle Speed Range ........................................ 25-5000 RPM
Spindle Horsepower.......................................... 37.5 HP
Driven Tool Spindle Horsepower.............................. 12.3 HP
Approximate Machine Dimensions.............................. 208" x 96"
Approximate Machine Height.................................. 95"
Approximate Machine Weight.................................. 14,000 LBS
