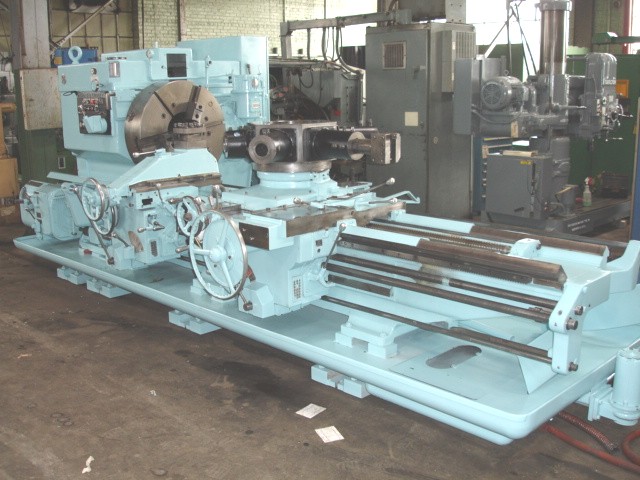

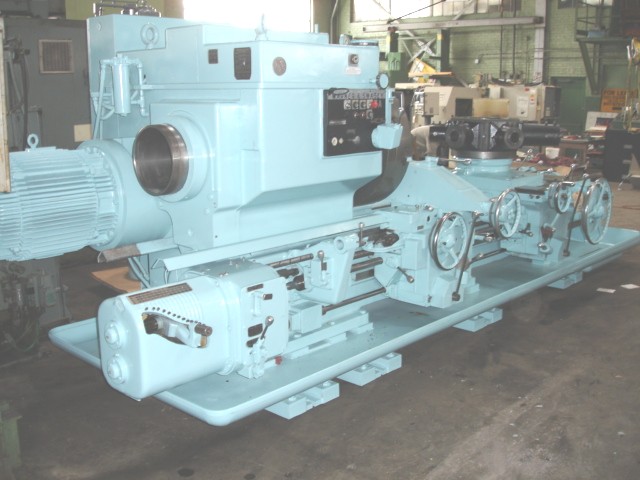

#5A WARNER & SWASEY SADDLE TYPE TURRET LATHE
Model M3600, New 1984, Stk# K12707
EQUIPPED WITH:
32" 3-Jaw Chuck, Hardened & Ground Ways, Taper Attachment Turret,
Cross Slide Turret, Front Cross Slide, Rapid Traverse, Coolant.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed.................................. 36"
Max Swing Over Carriage Horn.......................... 32-3/4"
Max Distance Spindle to Turret Face................. 104"
Spindle Hole........................................ 12-1/2"
Rear Hex Turret Longitudinal Feed................... .005"-.167" IPM
Front Tool Slide Longitudinal Feed.................. .005"-.167" IPM
Front Tool Slide Cross Feed......................... .003"-.103" IPM
Spindle Speeds (32) Range........................... 20-281 RPM
Spindle Horsepower.................................. 75 HP
Approximate Machine Dimensions...................... 7' x 20'
Approximate Machine Weight.......................... 25,000 LBS
