Stock Number K12748

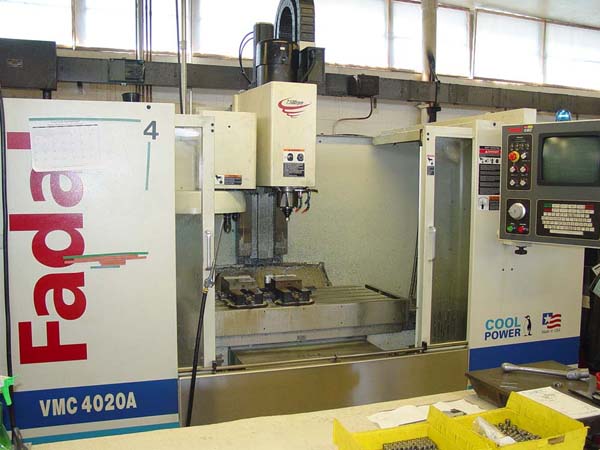

 FADAL CNC VERTICAL MACHINING CENTER
       Model 4020A, S/N 012000081205, New 2000
Stock # K12748

 EQUIPPED WITH:

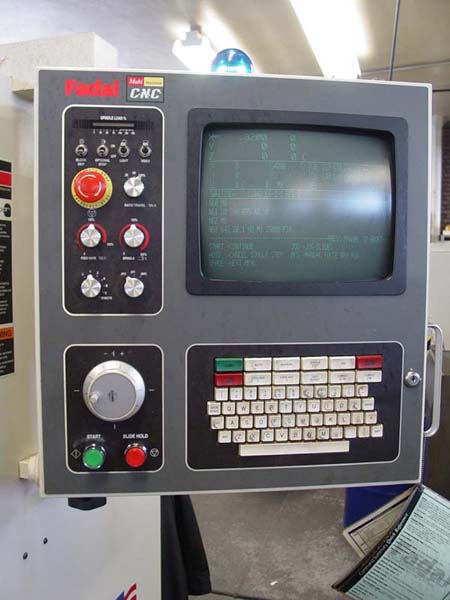

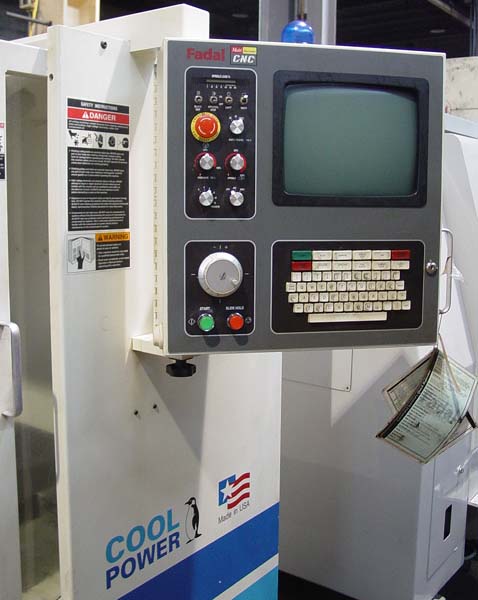

Fadal CNC88HS CNC Multi Processor CNC Control, RS-232 Port,
Multiple Part Program Storage, Self Diagnostics, 21 Station Automatic
Tool Changer, Manual Pulse Generator, Axis Error Compensation, Cutter
Compensation, Full Enclosure, Coolant and Chip System.

CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 48" x 20"
Table Load Capacity................................... 1,500 LBS
Longitudinal Travel (X-Axis).......................... 40"
Cross Travel (Y-Axis)................................. 20"
Vertical Travel (Z-Axis).............................. 20"
Spindle Nose to Table................................. 4" - 24"
Rapid Traverse Rate (X & Y-Axes)...................... 700 IPM
Rapid Traverse Rate (Z-Axis).......................... 600 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 15 HP
Spindle Speeds Range.................................. 75- 7,500 RPM
Spindle Taper......................................... #40 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 87" x 116"
Approximate Machine Height............................ 95"
Approximate Machine Weight............................ 10,500 LBS

 CONDITION: Appears to be in Excellent Condition !
