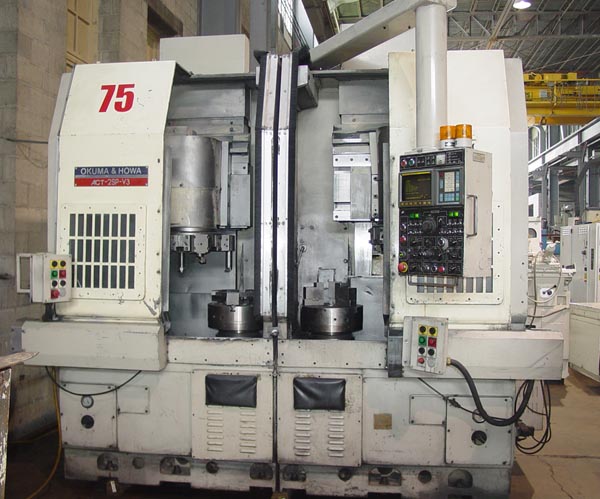

OKUMA & HOWA ACT2SP-V3 TWIN
SPINDLE CNC VERTICAL TURNING CENTER
Model ACT2SP-V3,S/N 30469, New 1994
Stock# K12754
EQUIPPED WITH

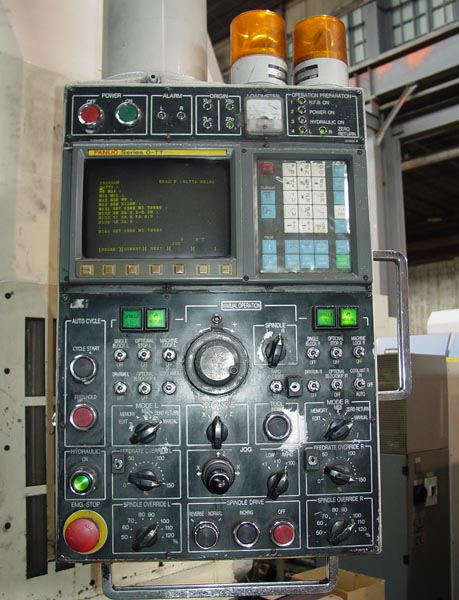

Fanuc O-TT CNC Controls, Multiple Part Program Storage, RS-232 Port,
(2) 15" 3-Jaw Hydraulic Chucks, Can take up to 18" Chucks. Automatic
Doors, (2) 10-Position Horizontal Turrets, (3) 30 HP Spindle Motors,
Coolant, Built-in Transformer for 440 Volt, Auto Lube System,
(2) Chip Conveyors, Work Light.
SPECIFICATIONS
Swing................................................. 23.5"
Max. Cutting Diameter with Existing Tooling...17.5"
Max. Cutting Diameter with Special Tooling.. 20"
Max. Cutting Length.................................... 16.14"
Spindle Center Height From Floor....................... 38.19"
Spindle Speed.......................................... 20-2500 RPM
Chuck Size (2)......................................... 15" 3-Jaw
Spindle Nose........................................... A2-8
Turret Type............................................ Drum Type
Number of Turrets...................................... 2
Tool Positions on each Turret.......................... 12 ea
Approximate Machine Dimensions (w/o Chip Conv)......... 92" x 117"
Approximate Machine Height............................. 120"
Approximate Machine Weight............................. 32,000 Lbs
