Stock Number K12755

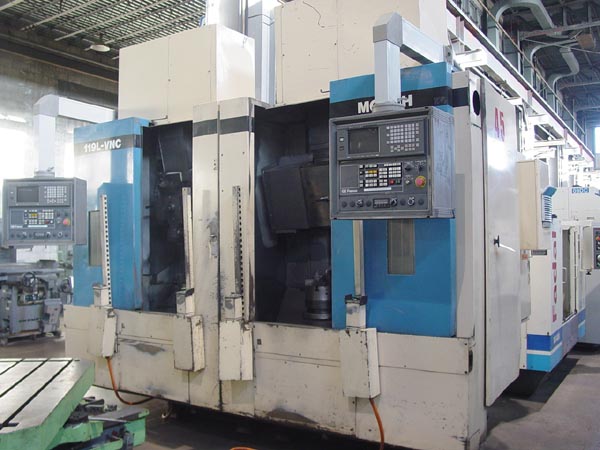

MOTCH MODEL 119VNC(119L&119R) 2-SPINDLE VERTICAL TURNING CENTER
Model 119VNC, S/N VT-2973798(Left)/VT-2974598(Right), New 1998
Stock# K12755

EQUIPPED WITH

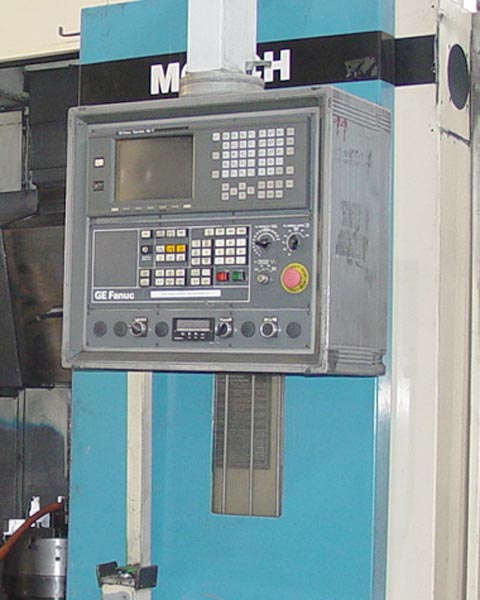

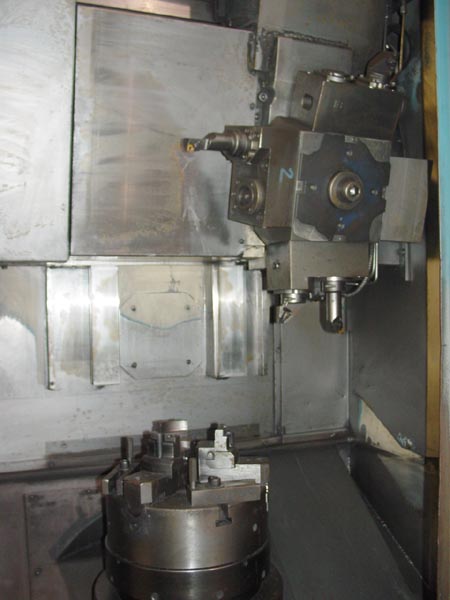

(2)Fanuc 18-T CNC Controls, Heavy Duty 50HP Spindles, (2) 12" 3-Jaw
Power Chucks, (2) 4-Sided Turrets Each Side Holds (2) Tools, (2) Chip
Conveyors.


SPECIFICATIONS
Maximum Swing................................... 25" (635mm)
Maximum Turning Diameter........................ 20" (500mm)
Spindle Speed................................... 2800 RPM
Spindle Nose.................................... A2-11
Travels
X ........................................ 12.5"
Z ........................................ 17" (432mm)
Traverse Rate (X/Z)............................. 475 IPM (12.07m/min)
Feed Rate (X/Z)................................. 125 IPM (3.18 m/min)
Approximate Machine Dimensions.................. 165" x 102"
Approximate Machine Height...................... 121"
Approximate Machine Weight...................... 29,200 Lbs.
