Stock Number K12779

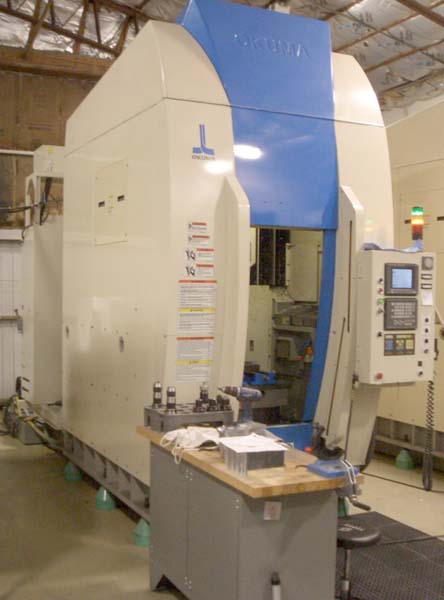

 OKUMA CTV-40 BRIDGE STYLE CNC VERTICAL MACHINING CENTER
  New 1999, Stock# K12779

EQUIPPED WITH:

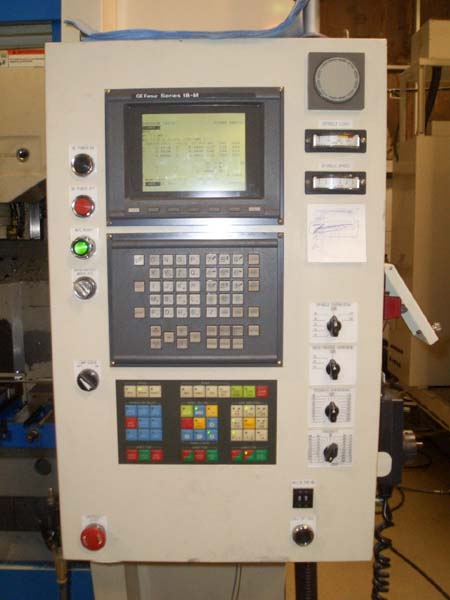

 FANUC 18M CNC Control, Hand Held Pendent MPG, RS-232 Port, Rigid
Tapping, Heavy Duty Bridge Style Design, Tool Setting Probe, Auto Door
with Light Curtains, 16 Station Automatic Tool Changer, Full Coolant

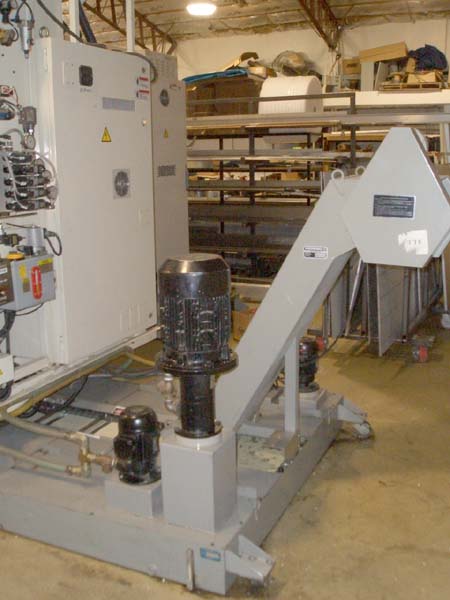

Enclosure, Spindle Load Meter, Chip Conveyor, and High Pressure
Thru Spindle Coolant System.

CATALOGUE SPECIFICATIONS:

 X Travel (Longitudinal)............................... 25.6"
Y Travel (Cross)...................................... 17.1"
Z Travel (Vertical)................................... 17.72"
Table Working Surface................................. 17.7"x 35.4"
Table Work Load Capacity.............................. 2000 LBS
Spindle Horsepower.................................... 10 HP
Spindle Speeds........................................ 80-10000 RPM
Spindle Taper......................................... HSK-63
Feed Rates, X & Y..................................... 0.1 to 394 IPM
Feed Rate, Z.......................................... 0.1 to 394 IPM
Rapid Traverse X & Y.................................. 1417 IPM
Rapid Traverse Z...................................... 787 IPM
Tool Storage Capacity................................. 16
Approximate Dimensions................................ 63" x 127"
Approximate Height.................................... 106"
Approximate Weight.................................... 16,820 LBS

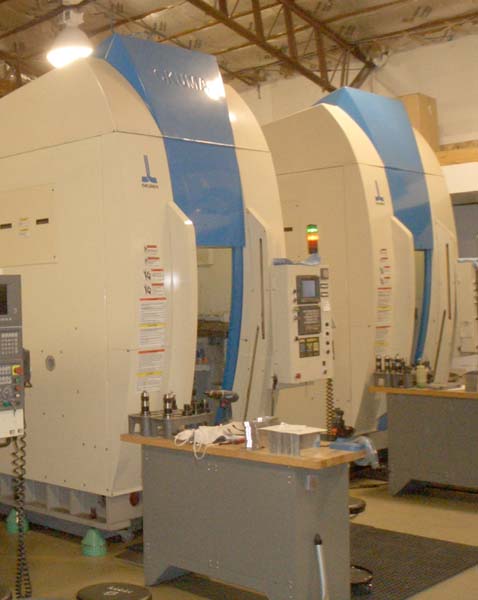

 CONDITION:  (2) Machines available. These Machines Appears to be in
Excellent Condition !  Only 3000 Spindle Hours !!
