EQUIPPED WITH:

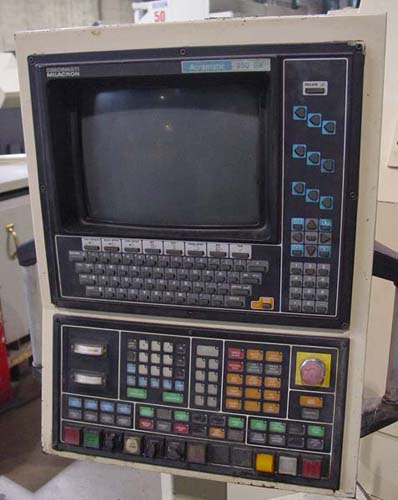

Acramatic 850SX CNC Control w/ CRT, Multiple Part Program Storage,
Extended Tool Data, Graphics, CinturnIII Shopfloor Programming,
Extended Threading, Enhanced Maintenance, RS-232 Port, Auto Tool
Setter

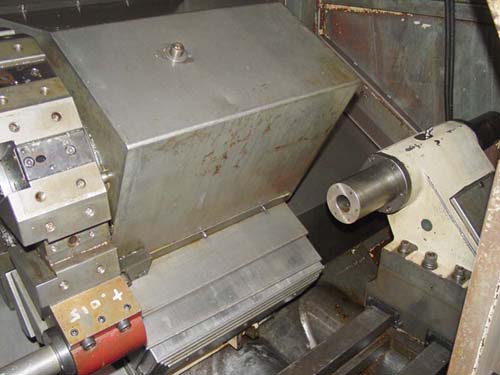

(Tool Eye), 8" 3-Jaw Chuck, (12) Position Tool Turret (6 ID and 6 OD),
Tailstock, Chip Conveyor, Coolant System, Tooling Package.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 20.86"
Max Swing Over Carriage................................. 11.80"
Max Tailstock Position.................................. 21.60"
Max Machinable Center Distance.......................... 23.60"
Standard Chuck Size..................................... 8.25"
Cross Travel (X-Axis)................................... 6.8"
Longitudinal Travel (Z-Axis)............................ 23.6"
Feed Range (Infinitely Variable)........................ .1-200 IPM
Rapid Traverse Rate (X-Axis)............................ 600 IPM
Rapid Traverse Rate (Y-Axis)............................ 600 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 2.44"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 45-4500 RPM
Spindle Horsepower...................................... 20 HP
Approximate Machine Dimensions.......................... 127" x 86"
Approximate Machine Height.............................. 73"
Approximate Machine Weight.............................. 10,560 LBS
