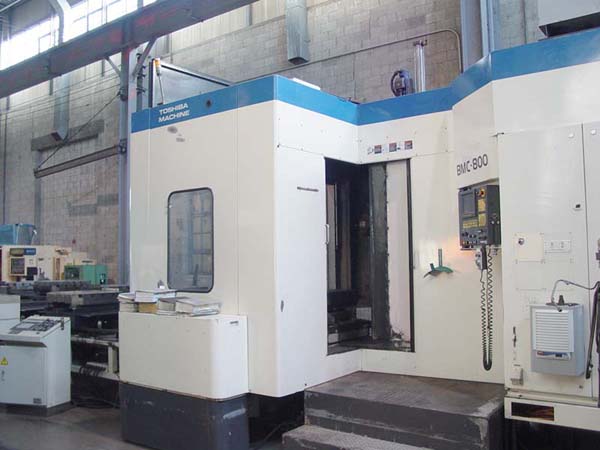

TOSHIBA BMC-800 CNC HORIZONTAL MACHINING CENTER
Model BMC-800, New 1997, Stock # K12791
EQUIPPED WITH:

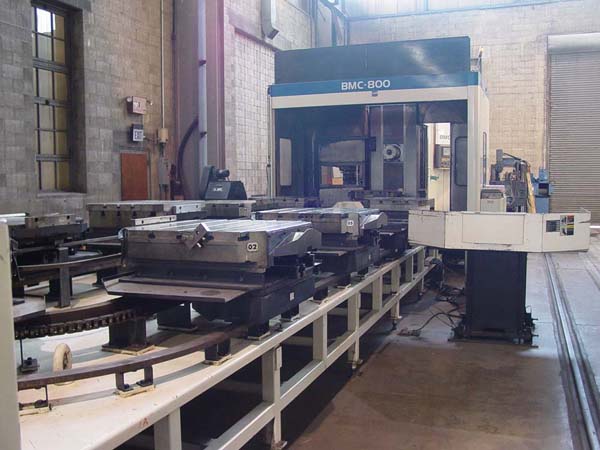

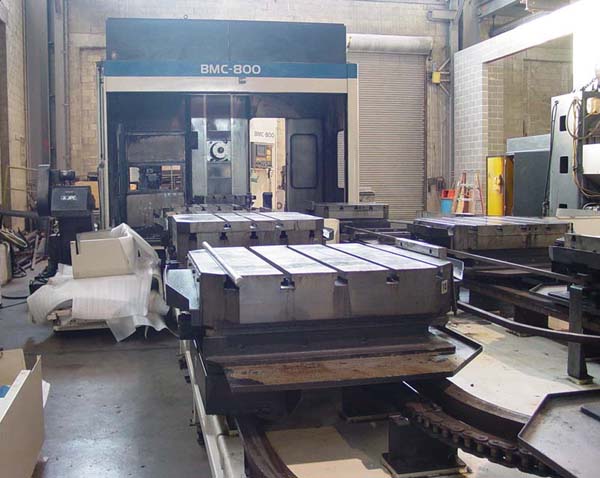

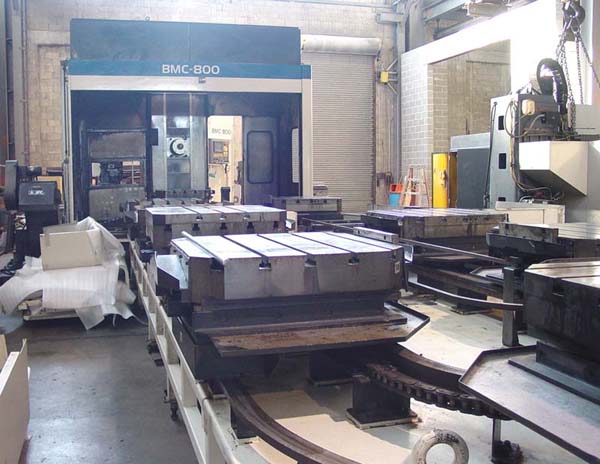

Toshiba Tosnuc 888 CNC Control w/CRT, Multiple Pallet Magazine System
with (10) 31.5" x 31.5" Pallets, Full Contouring 4th Axis,
Tool Setting Probe, 180

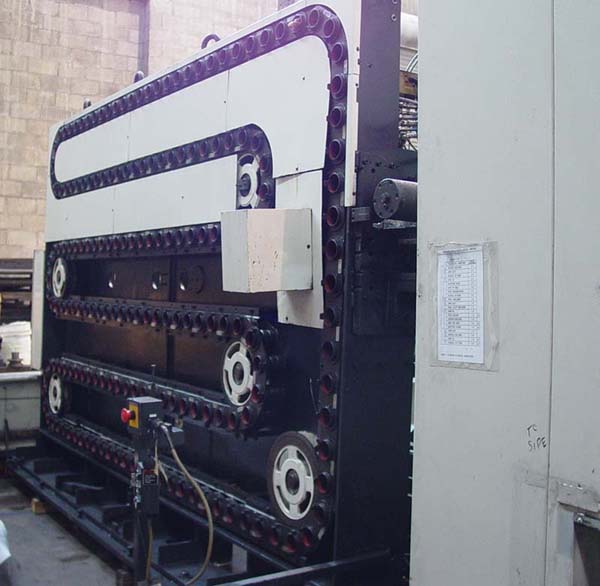

Station Automatic Tool Changer, Load/Unload Station, Full Coolant
Enclosure, 10000 RPM Geared Spindle, Chip Blaster High Pressure Thru-the-Spindle
Coolant, Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 56"
Vertical Travel (Y-Axis) ............................... 47"
Spindle Travel (Z-Axis) ................................ 31-1/2"

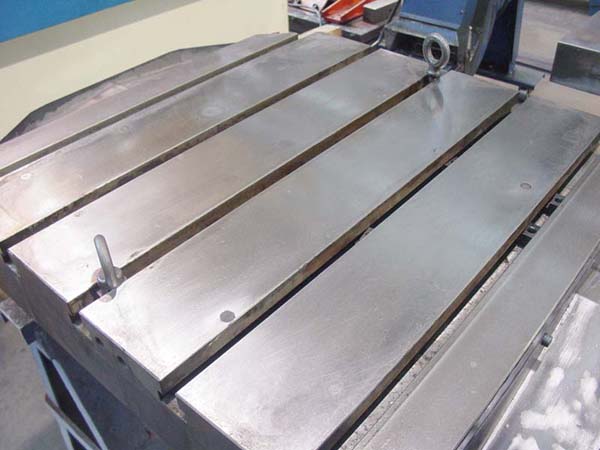

Pallet Dimensions ...................................... 31.5"x31.5"
Maximum Pallet Load .................................... 5000 LBS
Number of Pallets ...................................... 10
Number of Index Positions............................... 360,000
Feed Rate, All Axes .................................... .1-520 IPM
Rapid Traverse, All Axes ............................... 520 IPM
Spindle Horsepower...................................... 30 HP
Spindle Speed Range Low Range.................... 50-1250 RPM
Spindle Speed Range High Range................... 1000 -10000 RPM
Spindle Taper .......................................... #50 Taper
Number of Tool Stations ................................ 180
Electrics .............................................. 460/3/60
Approximate Floorspace Dimensions ...................... 310" x 301"
Approximate Machine Height ............................. 144"
Approximate Machine Weight ............................. 45,000 LBS
CONDITION: Appears to be in Excellent Condition! From A
Prestigious
US Company! Appears to be in Excellent Condition !
