EQUIPPED WITH:

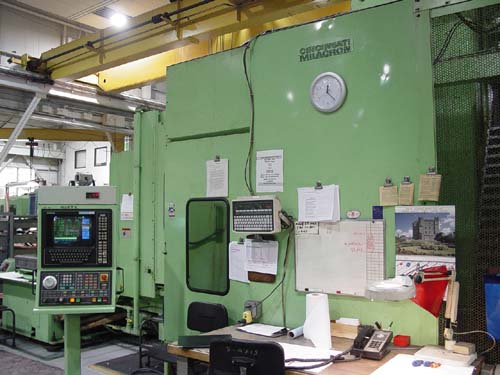

Acramatic 950 CNC Control with Color CRT, Touch Screen Programming,
Full 6-Axis Simultaneous Control including Spindle, 5-Axis Tool Length
and Cutter Comp, Solid Tapping, 9000000 Character Maxim Program Storage,
3-1/2" Floppy Disk Drive, Continuous Load Drip Feed Software, Automatic
Pallet Changer, Load/Unload Station, Two 31.5" Square Pallets, Full
Contouring 4th-Axis Pallet Rotation, Full Contouring 5th-Axis Spindle
Tilt, Tool Setting Probe, Renishaw Part Probe, Torque Controlled
Machining, Auto Tool Recovery, Multiple Setup and Support, 90 Station
Automatic Tool Changer, High Speed 6,000 RPM Spindle, Chip Conveyor,
Coolant System.
CATALOGUE SPECIFICATIONS:
Longitudinal Table Travel (X-Axis)................... 60"
Vertical Travel (Y-Axis)............................. 60"
Head Cross Travel (Z-Axis)........................... 62"
Spindle Tilt (A-Axis)................................ +30 to -120 Deg
Pallet Rotation (B-Axis)............................. 360 Deg
Pallet Dimensions.................................... 31.5" x 31.5"
Number of Pallets.................................... 2
Feed Rate, All Axes.................................. .1-600 IPM
Rapid Traverse, All Axes............................. 720 IPM
Spindle Horsepower................................... 30 HP
Spindle Speed Range.................................. 20-6000 RPM
Spindle Taper........................................ #50 CAT
Number of Tool Positions............................. 90
Electrics ........................................... 460/3/60
Approximate Machine Dimensions....................... 219" x 249"
Approximate Machine Height........................... 141"
Approximate Machine Weight........................... 54,000 LBS
