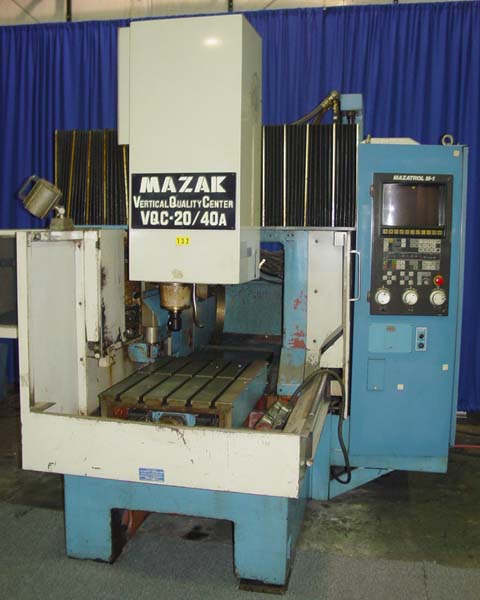

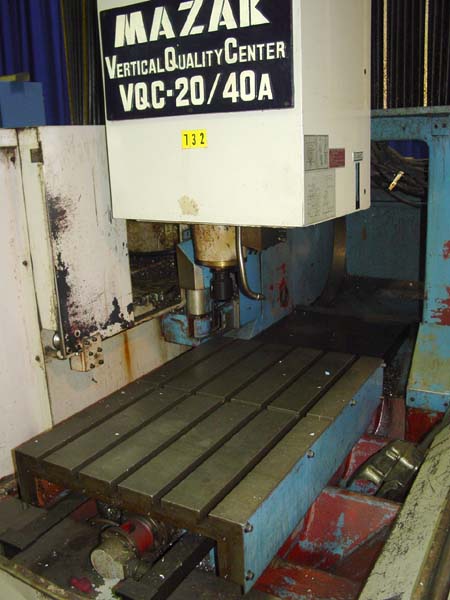

MAZAK CNC VERTICAL MACHINING CENTER
Model VQC-20/40,
New 1982
Stock # K12910
EQUIPPED WITH:
Mazatrol M-1 CNC Control w/14" Color CRT, Double Column 'Bridge Type'
Design, 20 Station Automatic Tool Changer Option, #40 CAT Taper
Spindle
Automatic Tool Length Compensation, Backlash Compensation, Coolant
System.
CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 25"
Vertical Travel (Y-Axis) ............................... 20"
Spindle Travel (Z-Axis) ................................ 18"
Rapid Traverse, (Y & Z Axis) ........................... 709 IPM
Rapid Traverse, (X Axis) ............................... 551 IPM
Spindle Speeds ..........................................
60-6000 RPM
Spindle Horsepower......................................
7.5 / 10 HP
Spindle Taper .......................................... #40 CAT
Number of Tool Stations ................................ 20
Approximate Machine Dimensions.......................... 92" x
76"
Approximate Machine Height.............................. 103"
Approximate Machine Weight.............................. 11200 Lbs
CONDITION: Appears to be in Very Good Condition
Under Power !
