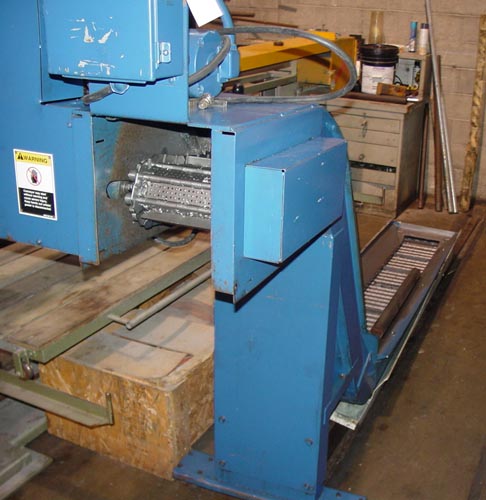

and
Coolant System.
CATALOGUE SPECIFICATIONS:
Swing over Slant Bed ..............................
20.1"
Swing over Carriage Wings..........................
13"
Standard Chuck Diameter............................
8.25"
X Axis Travel......................................
9.53"
Z Axis Travel......................................
22.83"
Number of Turrets.................................. 1
Tool Positions .................................... 12
Bar Capacity.......................................
2.5"
Spindle Nose....................................... A2-6
Spindle Speed Range................................
45-4500 RPM
Spindle Drive Motor ............................... 20 HP
Approximate Machine Dimensions.....................
118" x 64"
Approximate Machine Height.........................
69"
Approximate Weight................................. 9,010
LBS
CONDITION: Machine Appears to be in Excellent Condition !
