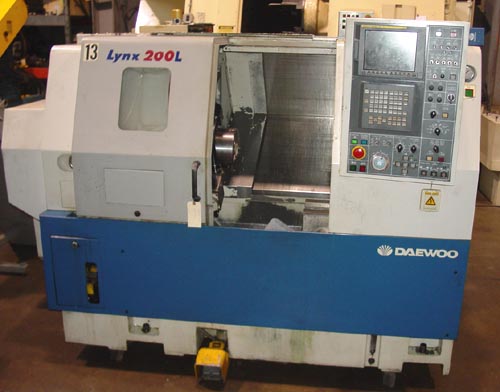

Model Lynx-200LC,S/N L2002323, New 2000
EQUIPPED WITH: Fanuc 21IT CNC Control W/CRT, Multiple Part
Program Storage, RS-232 Port, 8" 3-Jaw Hydraulic Chuck, 10 Position
ID/OD Tool Turret, Parts Catcher, Tool Presetter, Tailstock w/ 20"

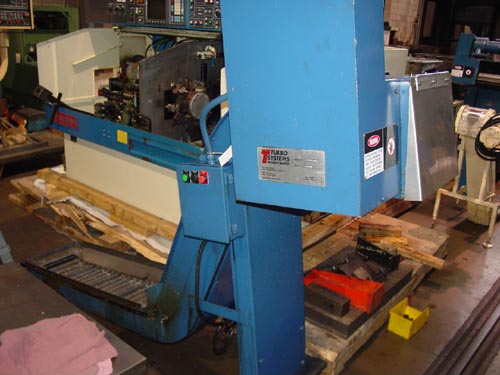

Centers, Automatic Lubrication, Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Swing over Slant Bed ..............................
18.11"
Swing over Carriage Wings..........................
13.78"
Standard Chuck Diameter............................
8"
X Axis Travel......................................
6.9"
Z Axis Travel......................................
20.8"
Rapid Traverse Rate ............................... 945
IPM
Number of Turrets.................................. 1
Tool Positions .................................... 10
Bar Capacity.......................................
2.5"
Spindle Nose....................................... A2-6
Spindle Speed Range................................
45-4500 RPM
Spindle Drive Motor ............................... 11 HP
Electrics .........................................
220/3/60
Approximate Machine Dimensions.....................
80" x 70"
Approximate Machine Height.........................
61"H
Approximate Weight................................. 7,716
LBS
CONDITION: Appears to be in Excellent Condition !
