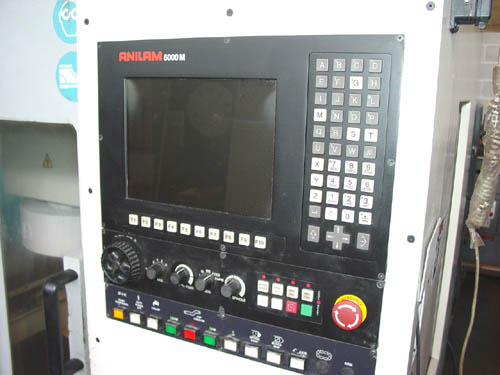

EQUIPPED WITH:  Anilam 6000M CNC Control w/ CRT, RS-232 Port, 12 Station Automatic Tool Changer, Full Enclosure, Chip Auger, Chip Collector and Coolant System.

CATALOGUE SPECIFICATIONS:

Table Working Surface................................. 27.6" x 12.6"

Longitudinal Travel (X-Axis).......................... 17.7"

Cross Travel (Y-Axis)................................. 13.8"

Vertical Travel (Z-Axis).............................. 15"

Spindle Nose to Table................................. 5.3"-20.3"

Rapid Traverse Rate (X & Y-Axes)...................... 1417 IPM

Rapid Traverse Rate (Z-Axis).......................... 1417 IPM

Tool Storage Capacity................................. 12

Spindle Horsepower.................................... 10 HP

Spindle Speeds Range.................................. 80 - 10000 RPM

Spindle Taper......................................... #40 Cat

Electrics............................................. 230/3/60

Approximate Machine Dimensions........................ 97" x 61"

Approximate Machine Height............................ 87"

Approximate Machine Weight............................ 4,600 LBS
