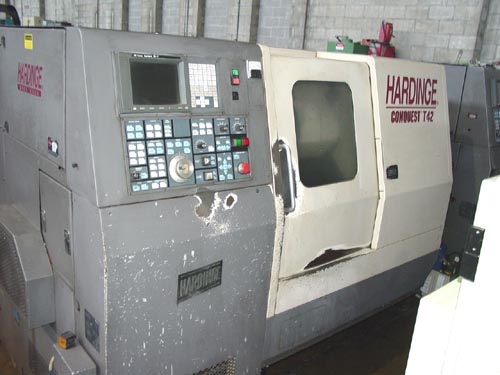

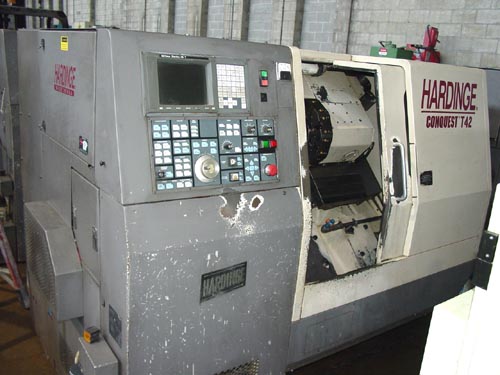

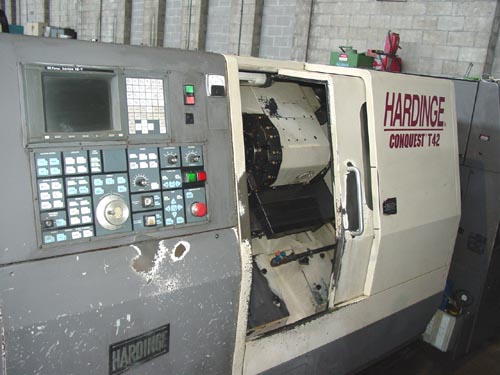

Model Conquest T-42, S/N SGA-1448B, New 1997
EQUIPPED WITH: Fanuc 18TB CNC Control with CRT,
Multiple Part Program Storage, Automatic Lubrication System, Chip
Conveyor, Coolant System.
NOTE: This Machine Does Not Have a Tailstock.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed......................................
19.5"
Cross Travel (X-Axis)...................................
5.45"
Longitudinal Travel (Z-Axis)............................
13.65"
Rapid Traverse Rate (X-Axis)............................
472 IPM
Rapid Traverse Rate (Z-Axis)............................
630 IPM

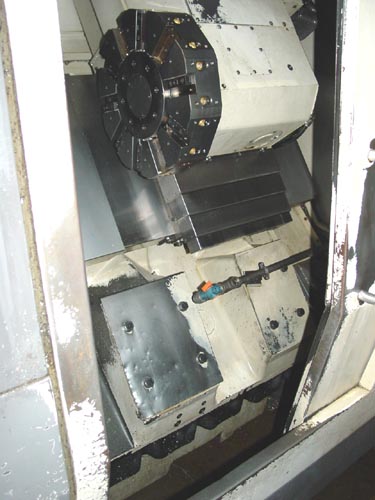

Number of Turrets....................................... 1
Tool Positions..........................................
10
Spindle Bore............................................
1.875"
Barstock Capacity Diameter..............................
1.625"
Spindle Speed Range (1 RPM Increments)..................
50-5000 RPM
Approximate Machine Dimensions..........................
91" x 76"
Approximate Machine Height..............................
70"
Approximate Machine Weight..............................
11,000 LBS
CONDITION: Machine Appears to be in Excellent Condition!
