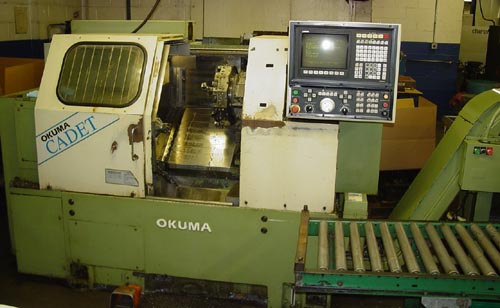

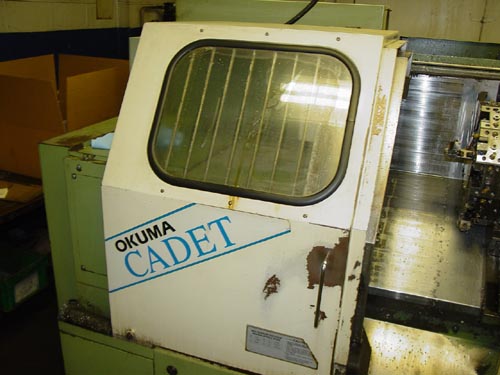

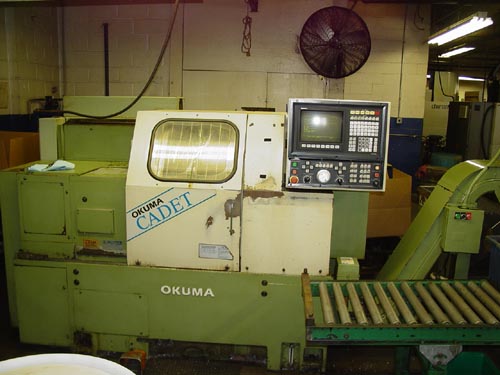

OKUMA CADET CNC TURNING CENTER
Model LNC-8, B-327, New 1993

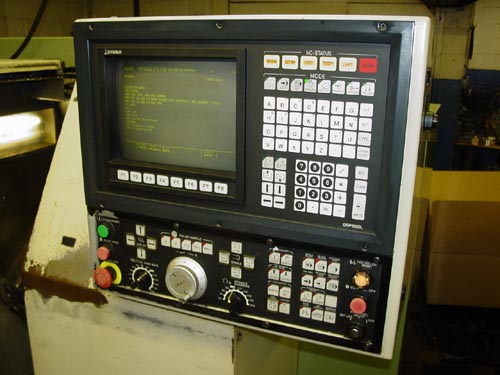

EQUIPPED WITH: Okuma OSP 5020L CNC Control with CRT,

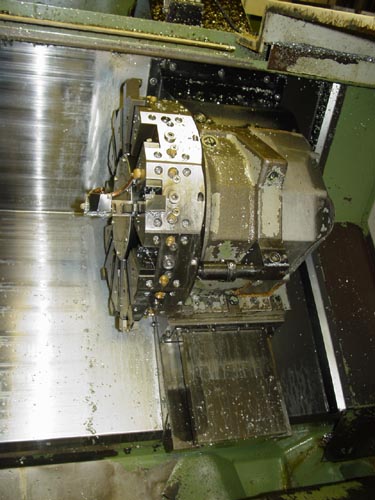

RS-232 Port for DNC System, 12 Position ID/OD Tool Turret, Slant Bed
Construction, Chip Conveyor, Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Slant Bed..................................
15.75"
Max Swing Over Carriage...................................
9.84"
Cross Travel (X-Axis).....................................
8.23"
Longitudinal Travel (Z-Axis)..............................
19.68"
Feed Range (Infinitely Variable) .........................
.1 to 200 IPM
Rapid Traverse Rate ......................................
591 IPM
Number of Turrets.........................................
1
Turret Positions..........................................
12
Spindle Bore..............................................
2.2"
Bar Capacity..............................................
1.9"
Spindle Nose..............................................
A2-6
Spindle Speed Range.......................................
75-4200 RPM
Spindle Drive Motor.......................................
20 HP
Approximate Machine Dimension.............................
107" x 70"
Approximate Machine Height................................
75"
Approximate Machine Weight................................
9,900 LBS
CONDITION: Machine Appears to be in Excellent Condition!
